inverters Appendix D
Goodrive300

Peripherial options and parts

Appendix D
What this chapter contain
D.1 What this chapter contains
This chapter describes how to select the options and parts of Goodrive300 series.
D.2 Peripherial wiring

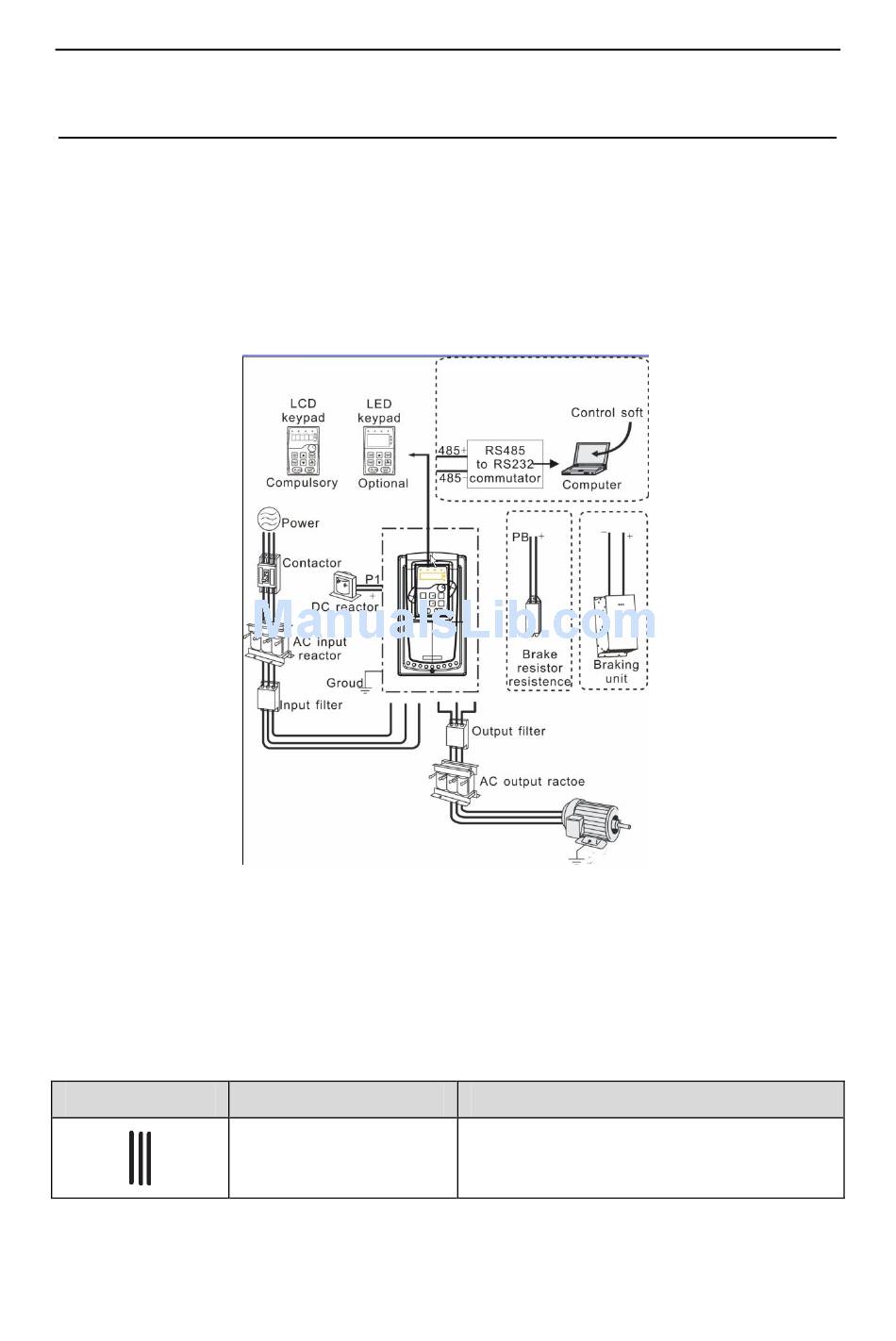

Below is the peripherial wiring of Goodrive300 series inverters.
Note:
1． The inverter below 30kW (including 30kW) are embedded with braking unit.
2. Only the inverter above 37kW (including 37kW) have P1 terminal and are connected
with DC reators.
3. The braking units apply standard braking unit DBU series in. Refer to the instruction of
DBU for detailed information.
Pictures Name Descriptions
Cables Device to transfer the electronic signals
283
