Goodrive300

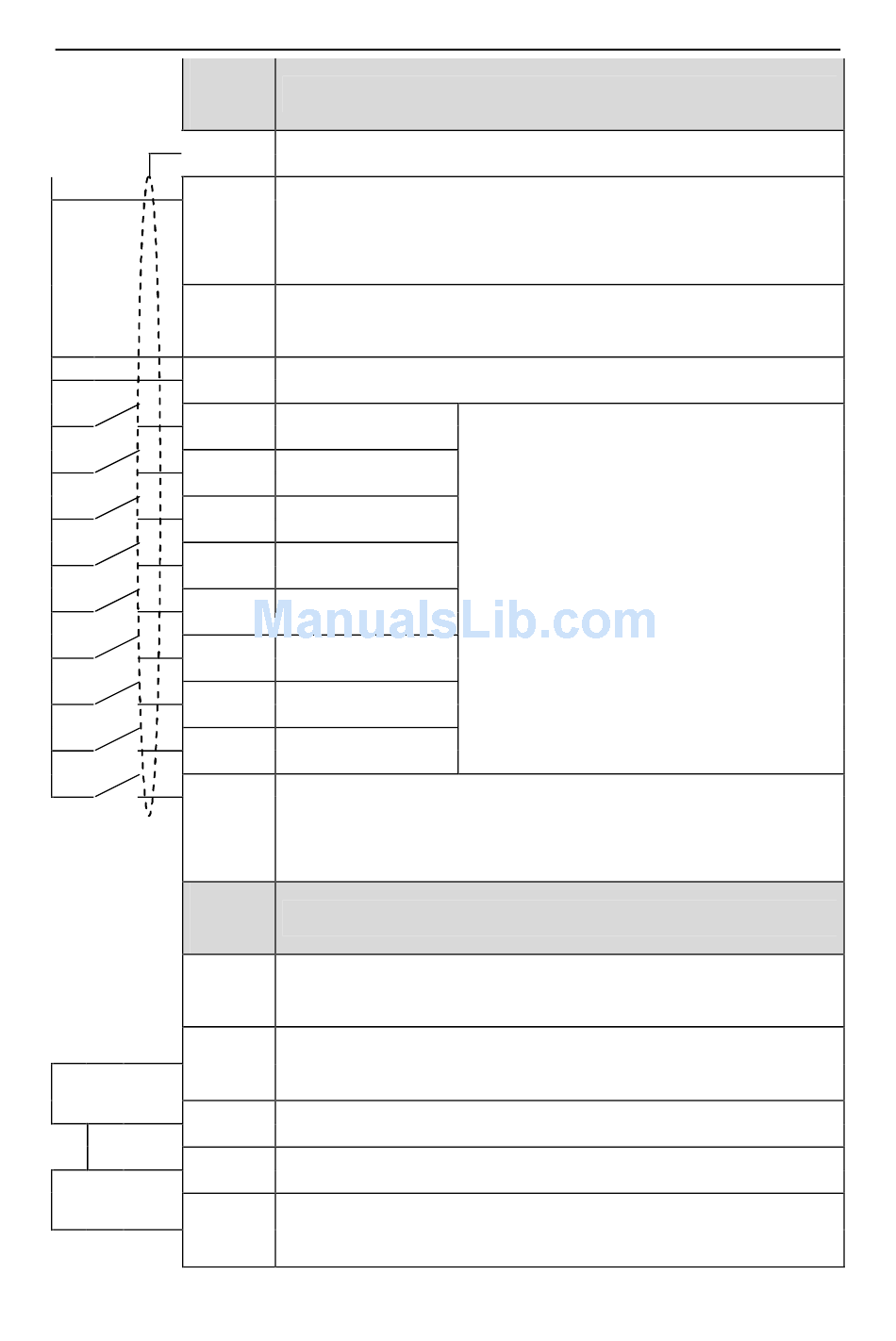

Terminal
name
PE
PW
24V
COM
S1
S2
S3
S4
S5
S6
S7
S8
HDI
Terminal
name
24V
HDO
COM
CME
Y
Grounding terminal
Provide the input switch working power supply from external to
internal.
Voltage range: 12~24V
The inverter provides the power supply for users with a maximum
output current of 200mA
+24V common terminal
Switch input 1
Switch input 2
Switch input 3
Switch input 4
Switch input 5
Switch input 6
Switch input 7
Switch input 8
Except for S1~S8, this terminal can be used as high frequency
input channel.
Max. input frequency:50kHz
The inverter provides the power supply for users with a maximum
output current of 200mA
1. Switch input:200mA/30V
2. Output frequency range:0~50kHz
+24V common terminal
Common terminal of the open collector pole output
1.Swtich capability:200mA/30V
2.Output frequency range:0~1kHz
36
Description
1. Internal impedance:3.3kΩ
2. 12~30V voltage input is available
3. The terminal is the dual-direction input
terminal supporting both NPN and PNP
4. Max input frequency:1kHz
5. All are programmable digital input
terminal. User can set the terminal function
through function codes.
Description
Installation guidelines
