Keypad Operation Procedure 5; What This Chapter Contains - INVT Goodrive 300 Operation Manual

inverters
Goodrive300
Keypad Operation Procedure

5.1 What this chapter contains

This chapter contains following operation:
• Buttons, indicating lights and the screen as well as the methods to inspect, modify and
set function codes by keypad
• Start-up

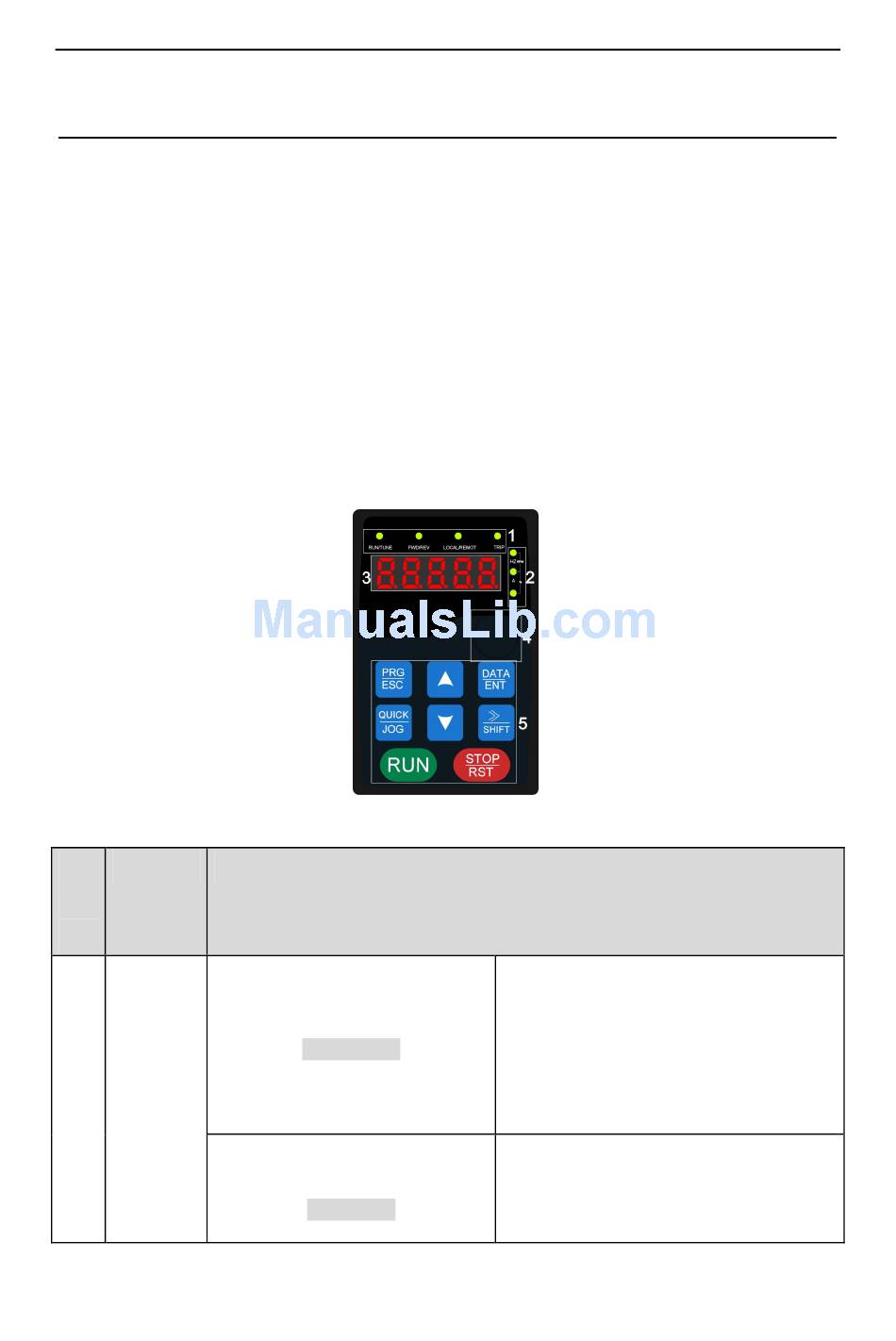

5.2 Keypad
The keypad is used to control Goodrive300 series inverters, read the state data and adjust
parameters.
Seri Name
al
No.
1 State LED
Fig 5-1 Keypad
RUN/TUNE
FWD/REV
40
Keypad operation procedure
5
Description
LED off means that the inverter is in the
stopping state; LED blinking means the
inverter is in the parameter autotune
state; LED on means the inverter is in
the running state.
FED/REV LED
LED off means the inverter is in the
forward rotation state; LED on means
