State display LEDs

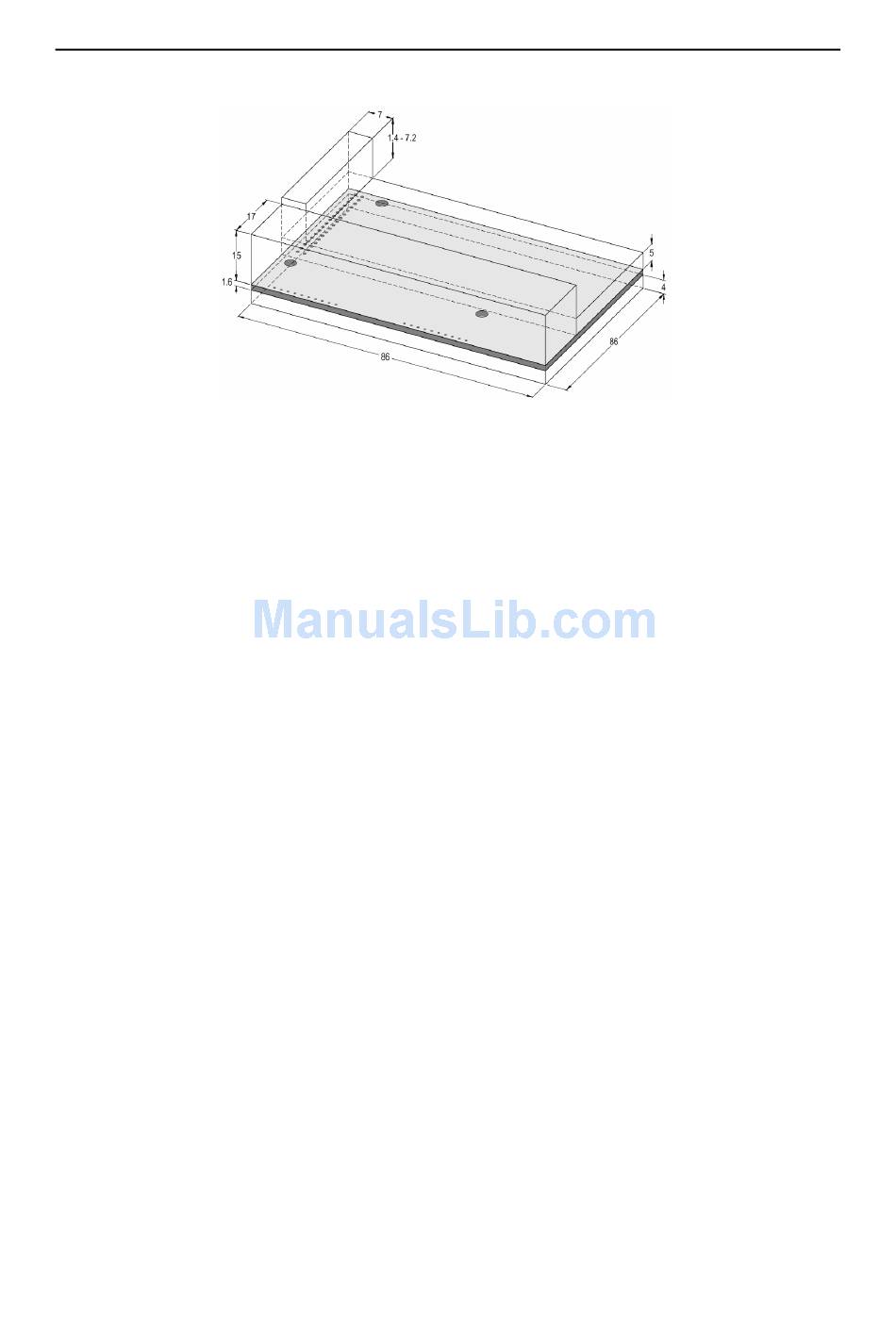

External dimensions of EC-TX-103 communication card (Unit: mm)
A.2.4 Compatible motor of EC-TX-103 communication card
EC-TX-103 communication card is compatible with the following products:
● Goodrive300 series devices and all blasters supporting Profibus extension
● Host station supporting Profibus-DP protocol
A.2.5 Delivery list
The package of EC-TX-103 communication card contains:
● EC-TX-103 communication card
● Three copper columns (M3x10)
● User's manual
Please contact with SHENZHEN INVT ELECTRIC CO., LTD or suppliers if there is
something missing. Notice will not be given for the reason of product upgrades.
A.2.6 Installation of EC-TX-103 communication card
A.2.6.1 Mechanical installation of EC-TX-103 communication card
1. Installation ambient
● Ambient temperature:0 ℃ ~ +40 ℃
● Relative humidity:5%~95%
● Other climate conditions: no drew, ice, rain, snow, hail air condition and the solar
radiation is below 700W/m
● Content of salt spray and corrosive gases :Pollution Level 2
● Dust and solid particles content: Pollution Level 2
● Vibration and shock: 5.9m/s
2
,air pressure 70~106kPa
2
(0.6g) on 9~ 200Hz sinusoidal vibration
