Note: the flange installation of 1.5~30kW inverters need flange board, while the flange
installation of 37~200kW inverters do not need.

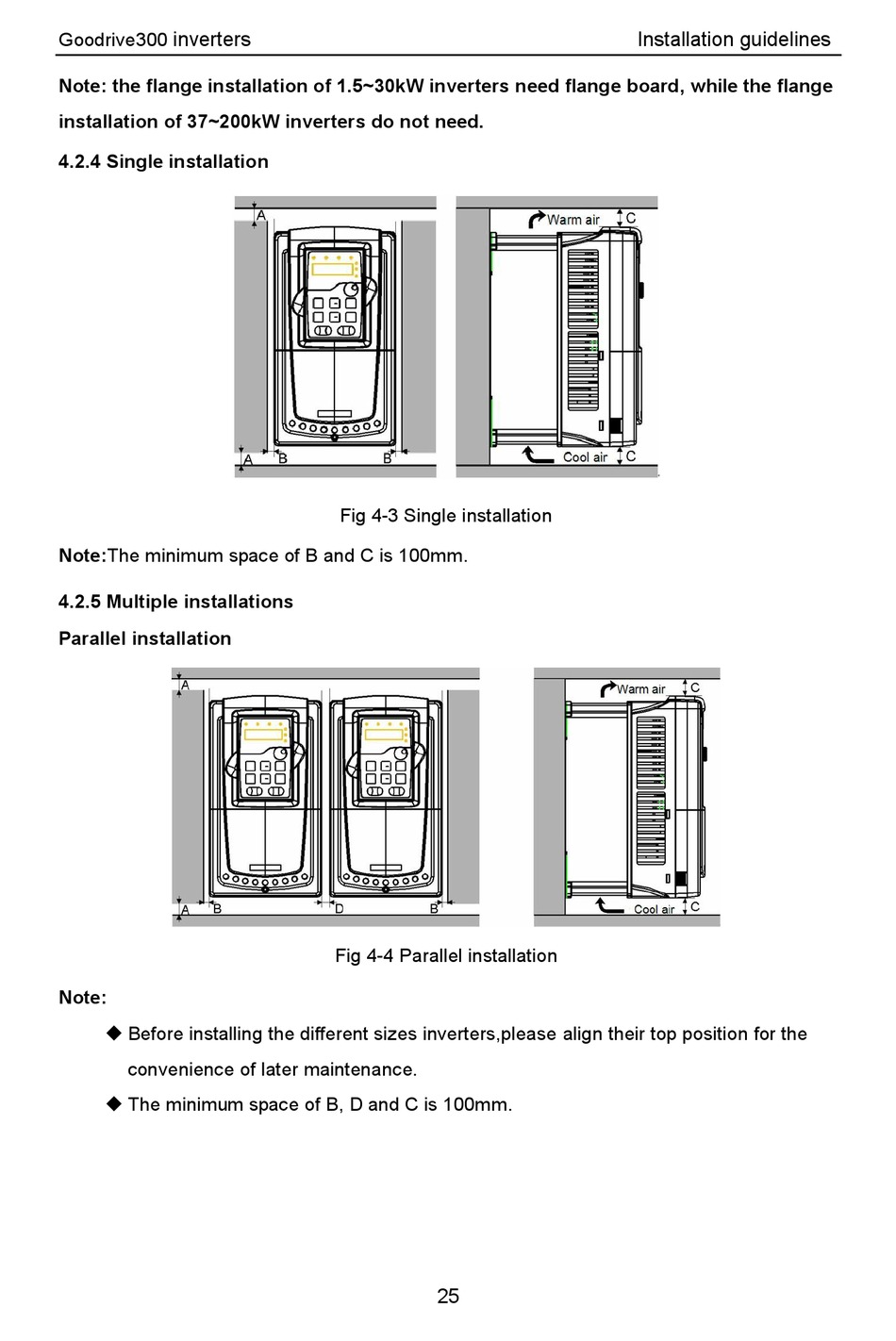

4.2.4 Single installation

Note:The minimum space of B and C is 100mm.

4.2.5 Multiple installations

Parallel installation

Note:
 Before installing the different sizes inverters,please align their top position for the
convenience of later maintenance.
 The minimum space of B, D and C is 100mm.
Fig 4-3 Single installation
Fig 4-4 Parallel installation
25
Installation guidelines
