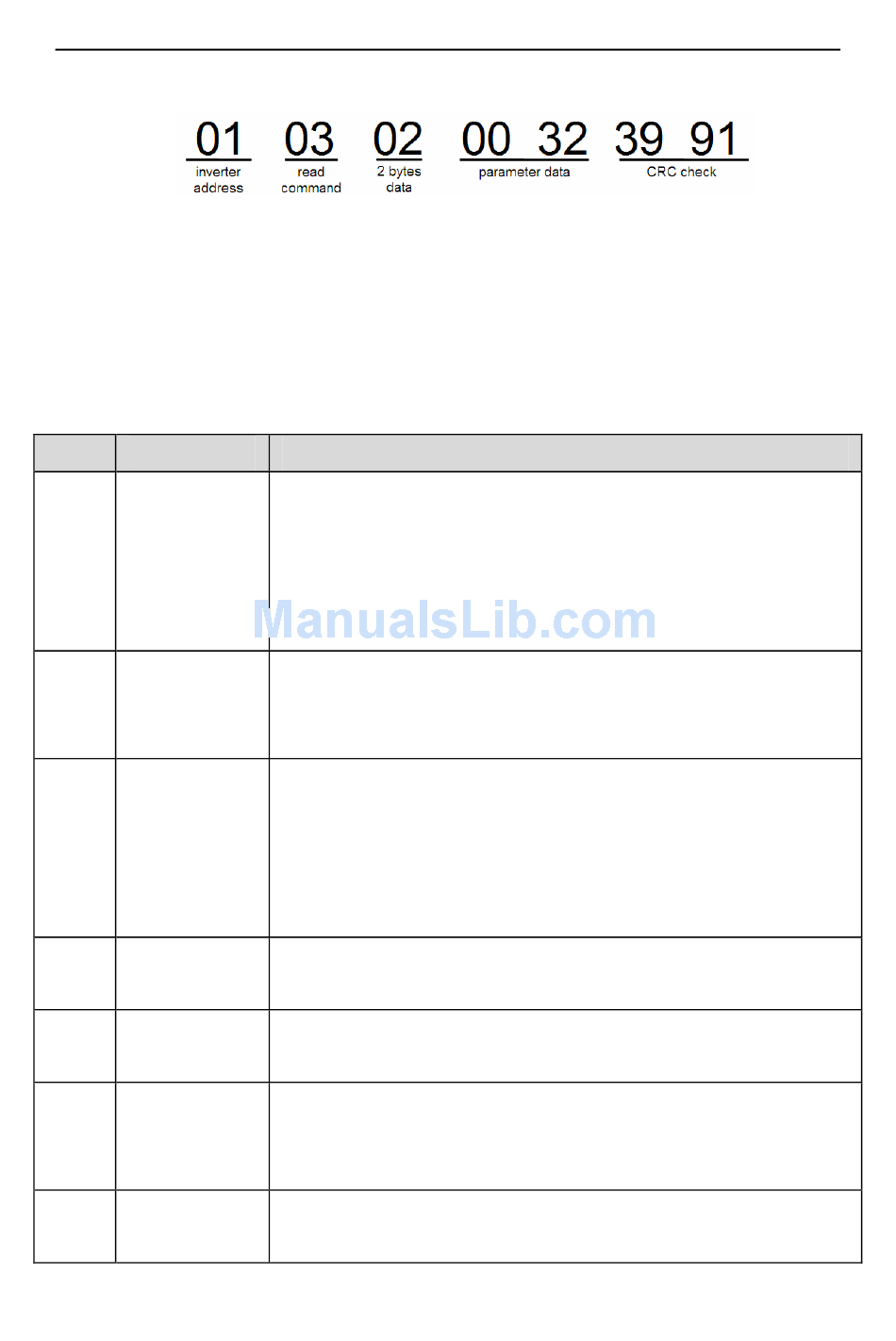

hibernation restore delay time ,if the response message of the inverter is as following:
Because the parameter data is 0032H (50) and 50 divided by 10 is 5, then the hibernation
restore delay time is 5s.

10.4.6 Fault message response

There may be fault in the communication control. For example, some parameter can only be
read. If a writing message is sent, the inverter will return a fault response message.
The fault message is from the inverter to the master, its code and meaning is as below:
Code Name
Illegal
01H
command
Illegal data
02H
address.
03H Illegal value
Operation
04H
failed
Password
05H
error
Data frame
06H
error
Written not
07H
allowed.
The command from master can not be executed. The reason
maybe:
1. This command is only for new version and this version can not
realize.
2. Slave is in fault state and can not execute it.
Some of the operation addresses are invalid or not allowed to
access. Especially the combination of the register and the
transmitting bytes are invalid.
When there are invalid data in the message framed received by
slave.
Note: This error code does not indicate the data value to write
exceed the range, but indicate the message frame is an illegal
frame.
The parameter setting in parameter writing is invalid. For example,
the function input terminal can not be set repeatedly.
The password written to the password check address is not same
as the password set by P7.00.
In the frame message sent by the upper monitor, the length of the
digital frame is incorrect or the counting of CRC check bit in RTU is
different from the lower monitor.
It only happen in write command, the reason maybe:
1. The written data exceeds the parameter range.
