4.3 Standard wiring

4.3.1 Connection diagram of main circuit

Note:
 The fuse, DC reactor, braking unit, braking resistor, input reactor, input filter, output
reactor, output filter are optional parts. Please refer to Peripheral Optional Parts for
detailed information.
 A1 and A2 are optional parts.
 P1 and (+) are short circuited in factory, if need to connect with the DC rector, please
remove the contact tag between P1 and (+).

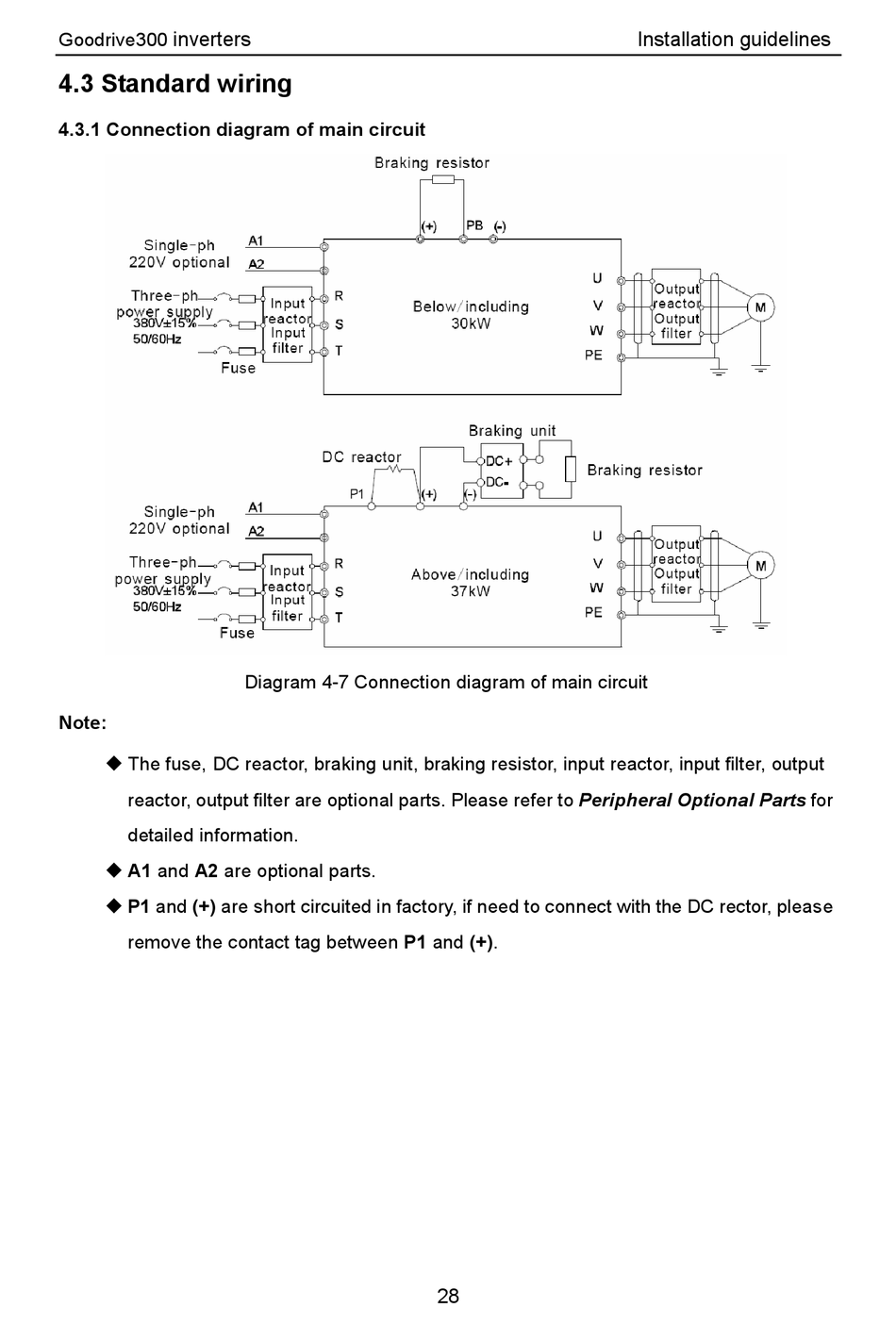

Diagram 4-7 Connection diagram of main circuit
