INVT Goodrive 300 Operation Manual page 68

inverters
Goodrive300
Functio
Name
n code
Speed loop
P03.00 proportional
gain1
Speed loop
P03.01 integral
time1
Low
P03.02 switching
frequency
Speed loop
P03.03 proportional
gain 2
Speed loop
P03.04
integral time
2
High
P03.05 switching
frequency
Detailed instruction of parameters
The parameters P03.00~P03.05 only apply to vector
control mode. Below the switching frequency
1(P03.02), the speed loop PI parameters are:
P03.00 and P03.01. Above the switching frequency
2(P03.05), the speed loop PI parameters are:
P03.03 and P03.04. PI parameters are gained
according to the linear change of two groups of

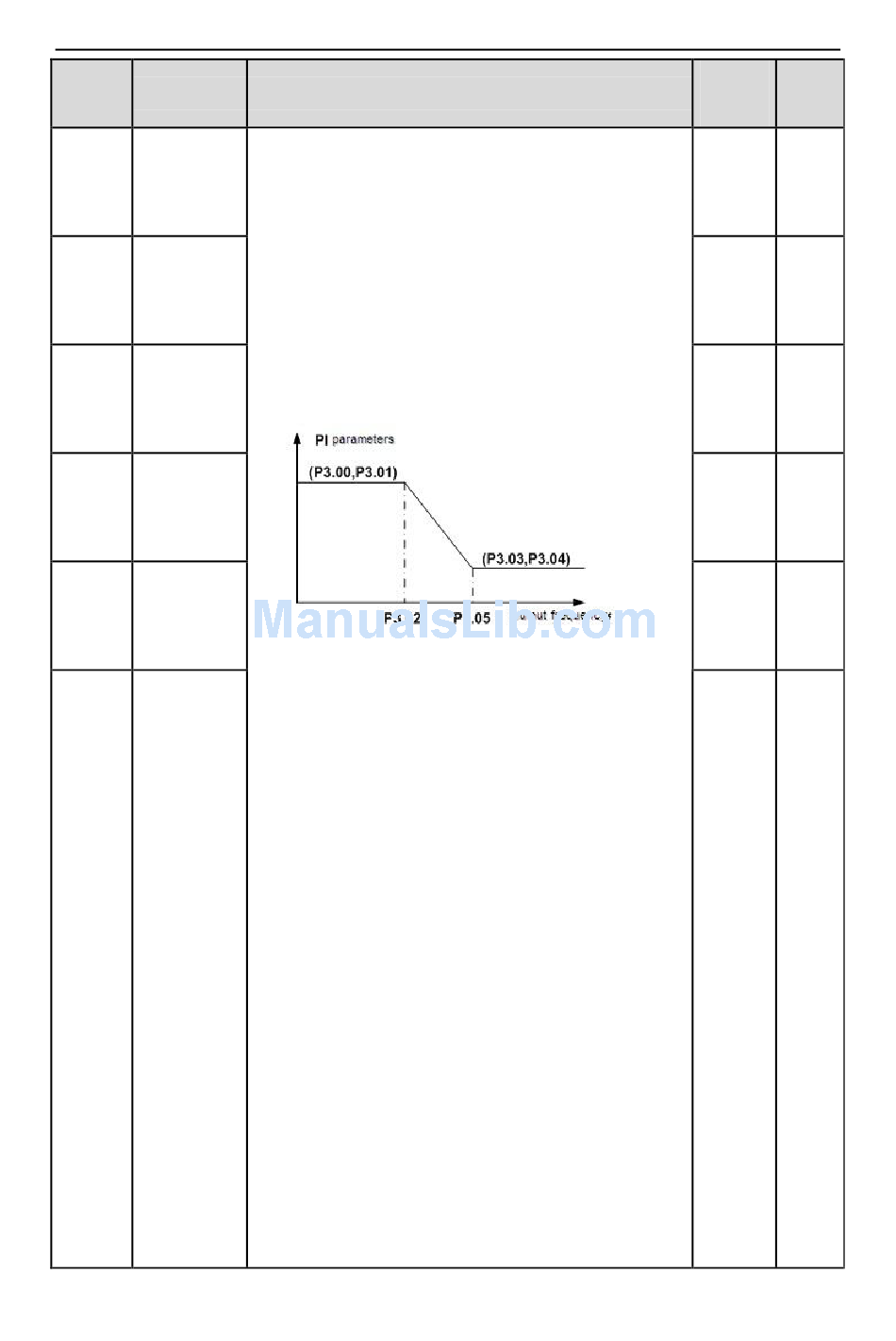

parameters. It is shown as below:
Setting the proportional coefficient and integral time
of the adjustor and change the dynamic response
performance of vector control speed loop. Increasing
the proportional gain and decreasing the integral
time can speed up the dynamic response of the
speed loop. But too high proportional gain and too
low integral time may cause system vibration and
overshoot. Too low proportional gain may cause
system vibration and speed static deviation.
PI has a close relationship with the inertia of the
system. Adjust on the base of PI according to
different loads to meet various demands.
The setting range of P03.00:0~200.0
The setting range of P03.01:0.001~10.000s
The setting range of P03.02:0.00Hz~P03.05
The setting range of P03.03:0~200.0
The setting range of P03.04:0.001~10.000s
67
Function codes
Default Modif
value y
○
20.0
○
0.200s
○
5.00Hz
○
20.0
○
0.200s
10.00H
○
z
