Pid Control - INVT Goodrive 300 Operation Manual

inverters
Goodrive300
Function
code
Simple PLC 0~7 stage
P10.34
ACC/DEC time selection
Simple PLC 8~15 stage
P10.35
ACC/DEC time selection
P05.01~ Digital input function
P05.09
Simple PLC and the current
P17.27 stage of the multi-stage

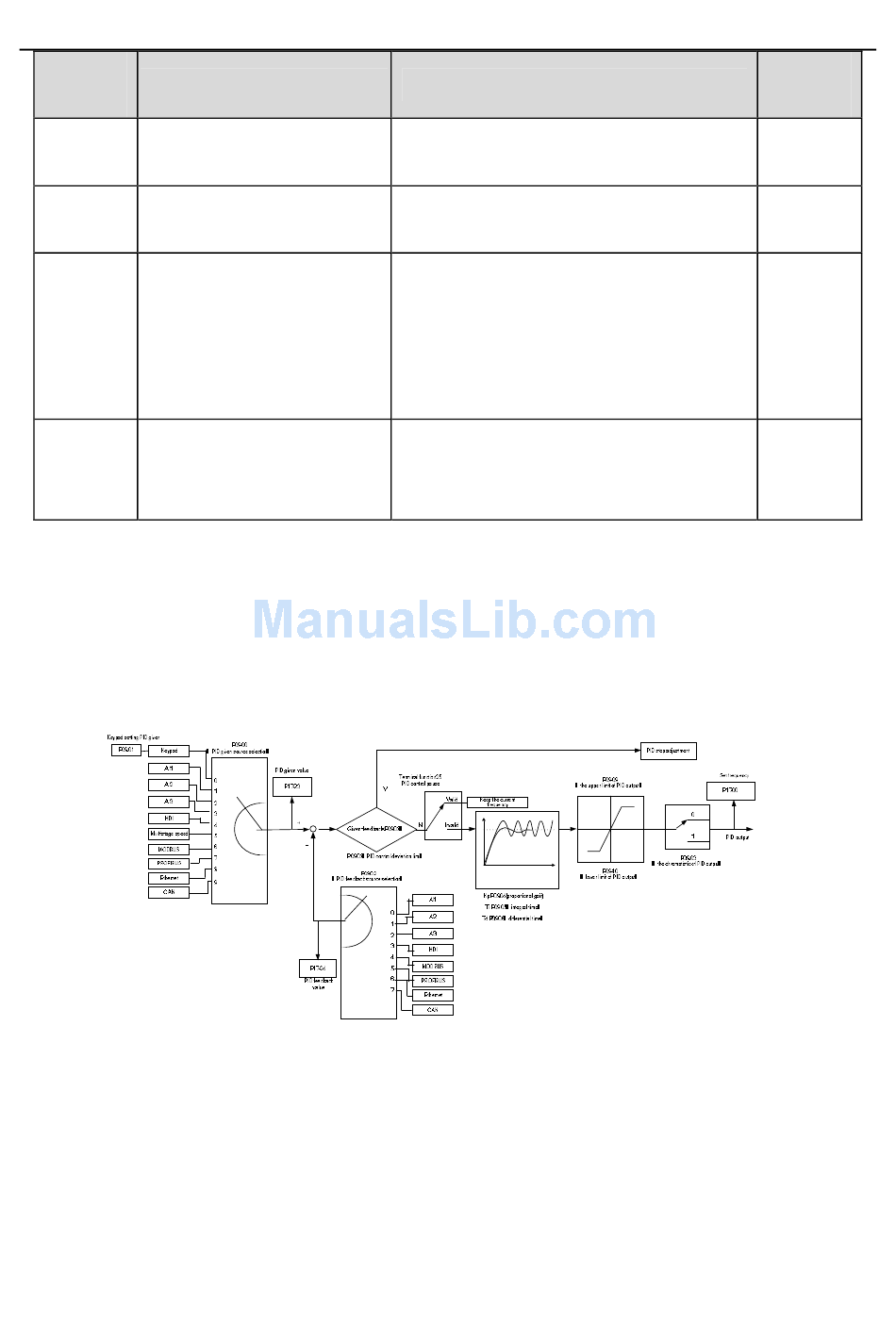

7.15 PID control

PID control is commonly used to control the procedure through the controlled procedure. Adjust the
output frequency by proportional, integral, differential operation with the dispersion of the target
signals to stabilize the value on the target. It is possible to apply to the flow, pressure and
temperature control. Figure of basic control is as below:
Simple illustration of the PID control operation and adjustment:
Name
selection
speed
Detailed instruction of parameters
0x0000~0XFFFF
0x0000~0XFFFF
16:Multi-stage speed terminal 1
17:Multi-stage speed terminal 2
18:Multi-stage speed terminal 3
19:Multi- stage speed terminal 4
20:Multi- stage speed pause
200
Basic operation instruction
Default
value
0000
0000
