CLUTCH/GEARSHIFT LINKAGE

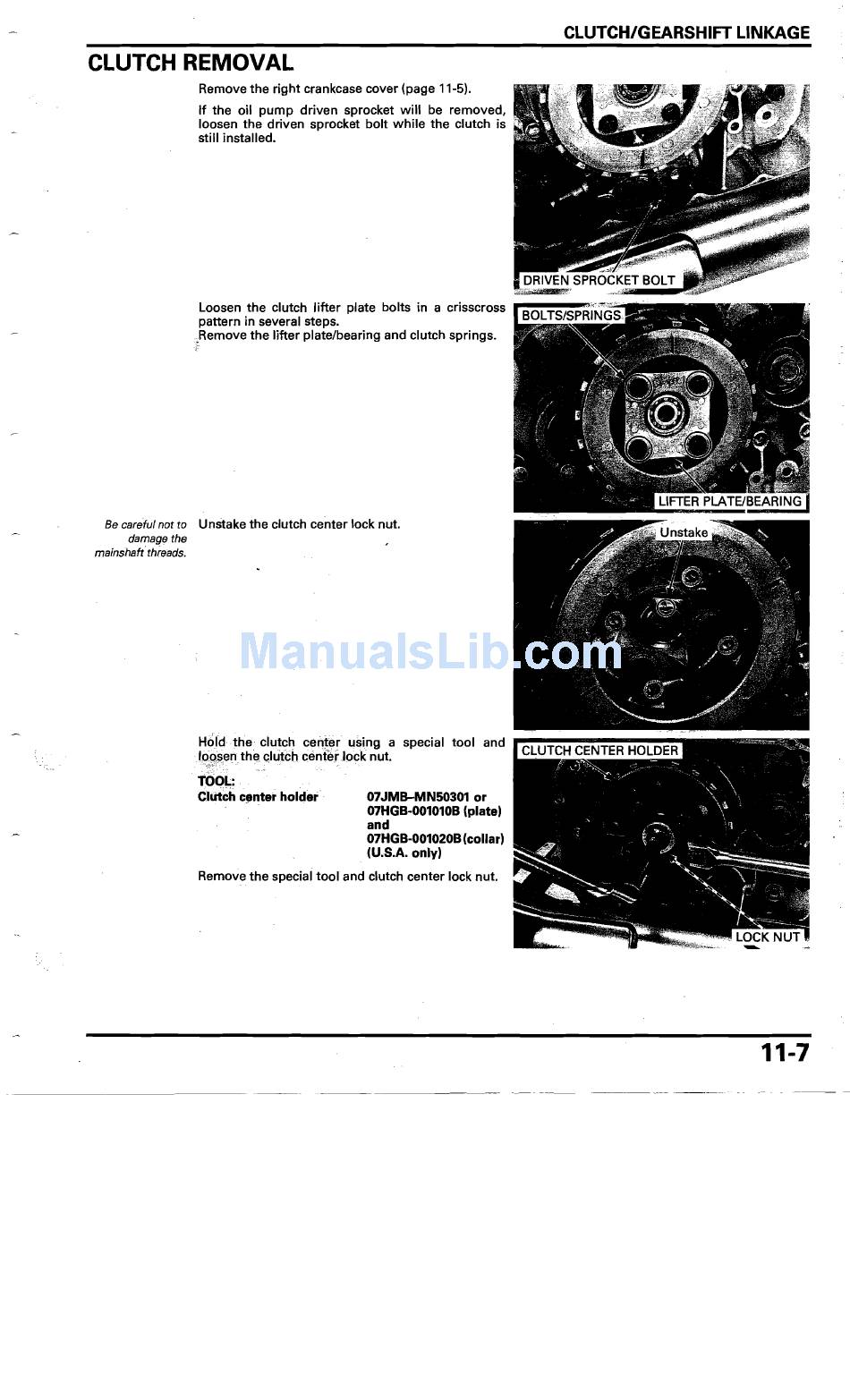

CLUTCH REMOVAL
Remove the right crankcase cover (page 11-5).
If the oil pump driven sprocket will be removed,
loosen the driven sprocket bolt while the clutch is
still installed.
Loosen the clutch lifter plate bolts in a crisscross .----"""
pattern in several steps.
,Remove the lifter plate/bearing and clutch springs.
Be careful not
to
Unstake the clutch center lock nut.
damage the
mainshaft threads.
HOld the clutch
cent~r
using a special tool and
loosen the c.lutch center Jock nut.
-
-:'"~~~:.::,'-/:-' ..
­
TOOL:.
Cilltch
c~tnter
holder'·
07JMB-MN50301 or
07HGB-001010B (plate)
and
07HGB-001020B (collar)
(U.S.A. only)
Remove the special tool and clutch center lock nut.
11-7
