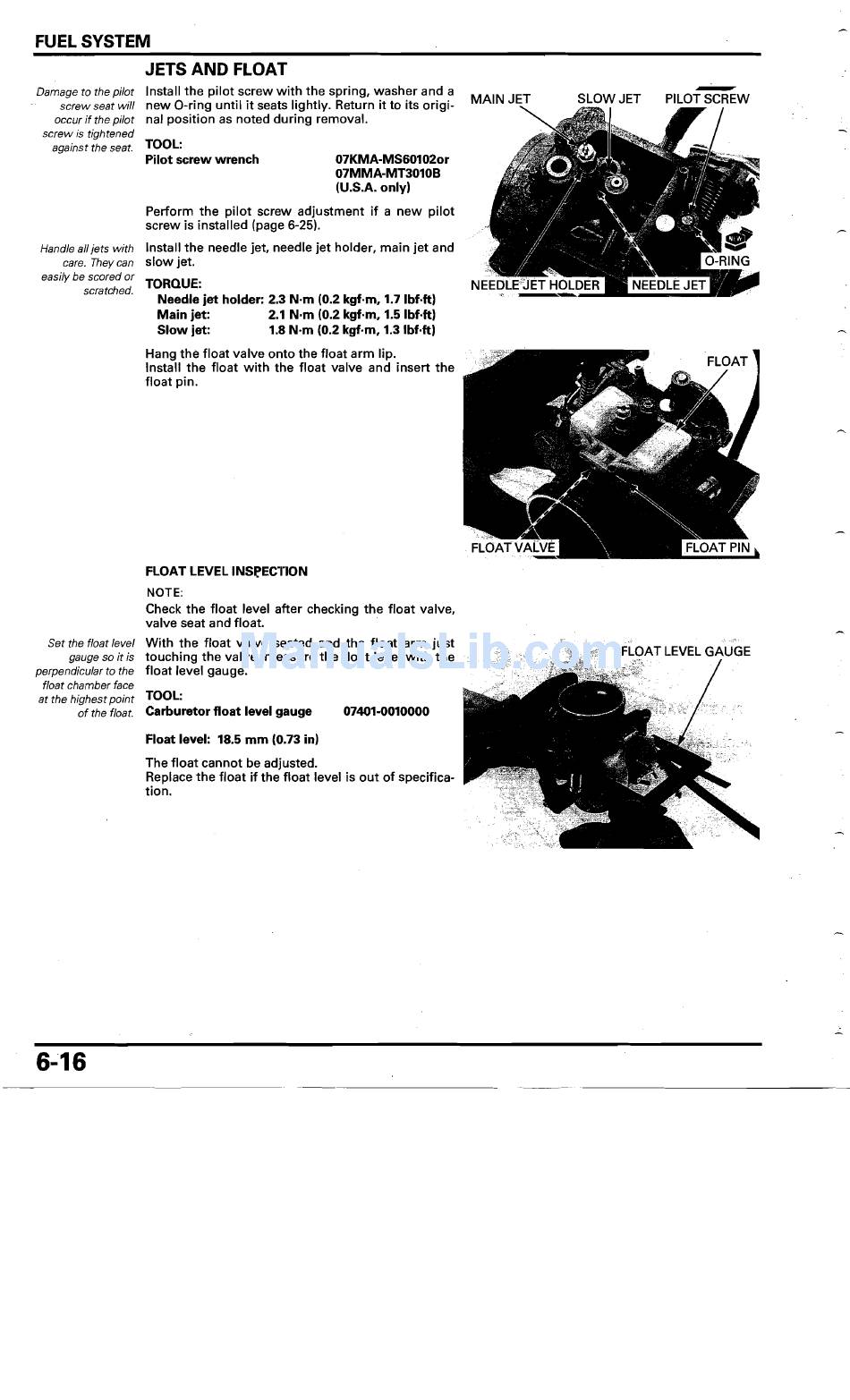

FUEL SYSTEM
JETS AND FLOAT
-
Damage to the pilot
screw seat will
occur if the pilot
screw is tightened
against the seat.
Handle all jets with
care. They can
easily be scored or
scratched.
Set the float level
gauge so it is
perpendicular to the
float chamber face
at the highest point
of the floa t.
Install the pilot screw with the spring, washer and a
new O-ring until it seats lightly. Return it to its origi ­
nal position as noted during removal.
TOOL:
Pilot screw wrench 07KMA-MS60102or
07MMA-MT3010B
(U.S.A. only)
Perform the pilot screw adjustment if a new pilot
screw is installed (page 6-25).
Install the needle jet, needle jet holder, main jet and
slow jet.
TORQUE:
Needle jet holder: 2.3 N·m (0.2 kgf·m, 1.7Ibf.ft)
Main jet: 2.1 N·m (0.2 kgf·m, 1.5 Ibf.ft)
Slow jet: 1.8 N·m (0.2 kgf·m, 1.3Ibf.ft)
Hang the float valve onto the float arm lip.
Install the float with the float valve and insert the
float pin.
FLOAT LEVEL INSfECTION
NOTE:
Check the float level after checking the float valve,
valve seat and float.
With the float valve seated and the float arm just
touching the valve, measure the float level with the
float level gauge.
TOOL:
Carburetor float level gauge 07401-0010000
Float level: 18.5 mm (0.73 in)
The float cannot be adjusted.
Replace the float if the float level is out of specifica ­
tion.
MAIN JET SLOW JET PILOT SCREW
