Omni Switch/Router Distributed Switching Fabric

Omni Switch/Router Distributed Switching Fabric

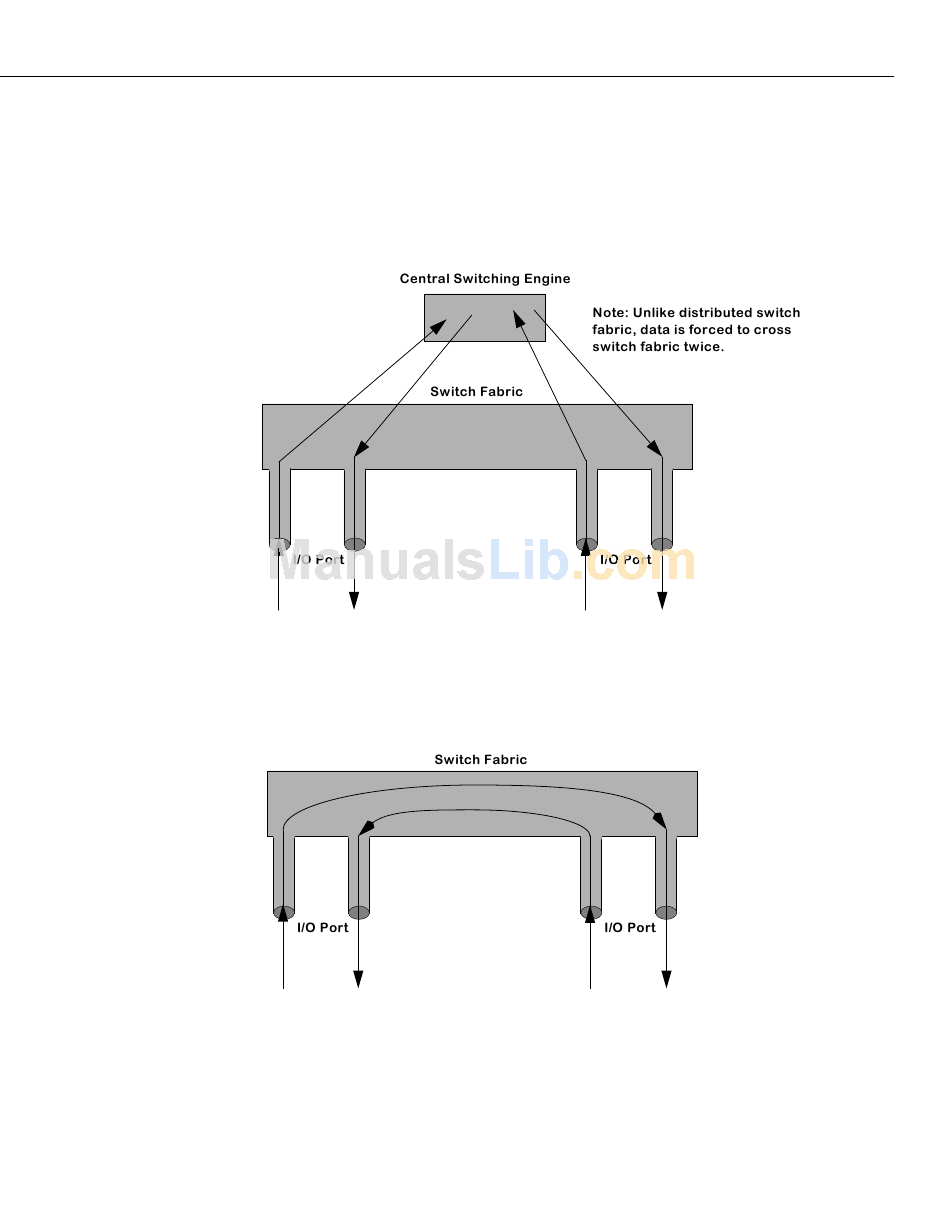

Many switches in the market employ a shared memory architecture, which uses a central
switching engine to send data to the appropriate port. As shown in the figure below, data
–
enters the input port ( below), crosses the switching fabric on its way to the central switch-
— ˜
ing engine( below), and again crosses the switching fabric ( below) before exiting the
❹
appropriate output port ( below).
— ˜
– ❹
Traditional Shared Memory Architecture
In contrast, Omni Switch/Router switches use a distributed switching fabric. As shown in the
figure below, data enters the input port and crosses the switching fabric only once before
exiting the appropriate output port. Compared to the shared memory architecture, only half
as much bandwidth is required since data just crosses the switching fabric once.
Omni Switch/Router Distributed Switching Fabric
Page 1-3
