OmniS/R-9 and OmniS/R-9P

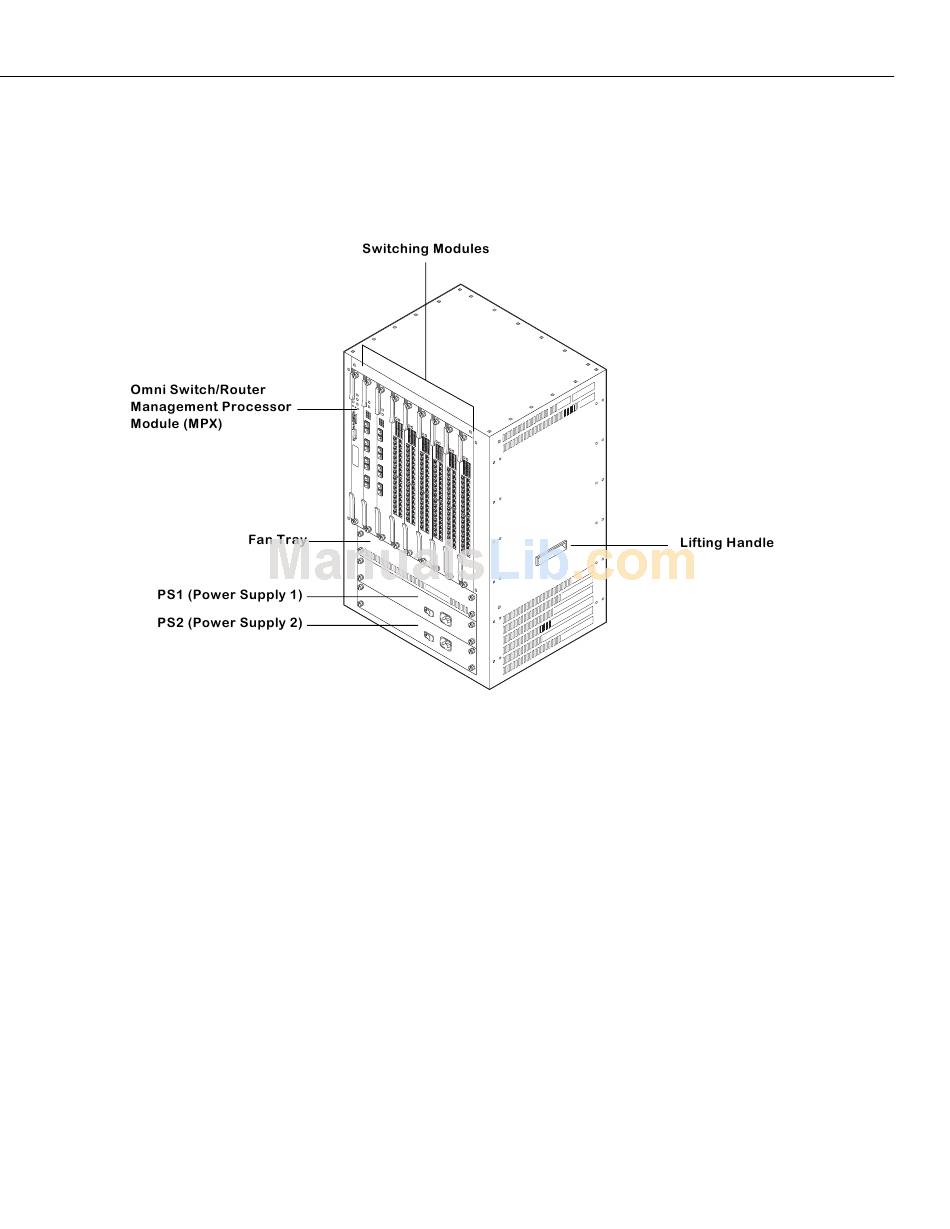

The OmniS/R-9 and OmniS/R-9P chassis have nine slots for an
(see figure below). Slots are numbered from 1 to 9 starting with the left-most slot. Slots for
two power supplies are located at the bottom of the chassis. A separate, removable fan tray
containing four fans is located above the power supply module bays.
A fully loaded OmniS/R-9 weighs nearly 100 lbs. Therefore, it is recommended that if you are
rack-mounting the chassis you use a rack mount shelf instead of just brackets. Using a shelf
will ensure that the weight of the chassis can be supported. In addition, the OmniS/R-9
contains side handles to make lifting and installation easier.
The OmniS/R-9 uses the
module in Slot 1. You can install a switching module in Slot 2 (if an
or an
. When dual-redundant
MPX
and the other in Slot 2. Slots 3 through 9 are reserved for switching modules.
You must have an
module; you cannot use any version of the
Chapter 2, "The Omni Switch/Router
information on the
The OmniS/R-9
. Slot 1 is reserved for the
MPX
are installed, one of them must be installed in Slot 1
MPXs
o Important Note o
acting as the management
MPX
.
MPX
Omni Switch/Router Chassis and Power Supplies
and switching modules
MPX
; you cannot install a switching
MPX
is installed in Slot 1)
MPX
. See
MPM
," for more
MPX
Page 1-13
