Alcatel Omni Switch/Router User Manual page 63

The MPX module includes one row
of LEDs for the Ethernet manage-
ment port.
(Activity). On Green when
data is transmitted or received
on the Ethernet management
port.
(Link Status/Disabled).
On Green continuously when a
good cable connection exists.
Off when a good connection
does not exist.
(Collision). On Yellow
when a collision has been
detected on the port.

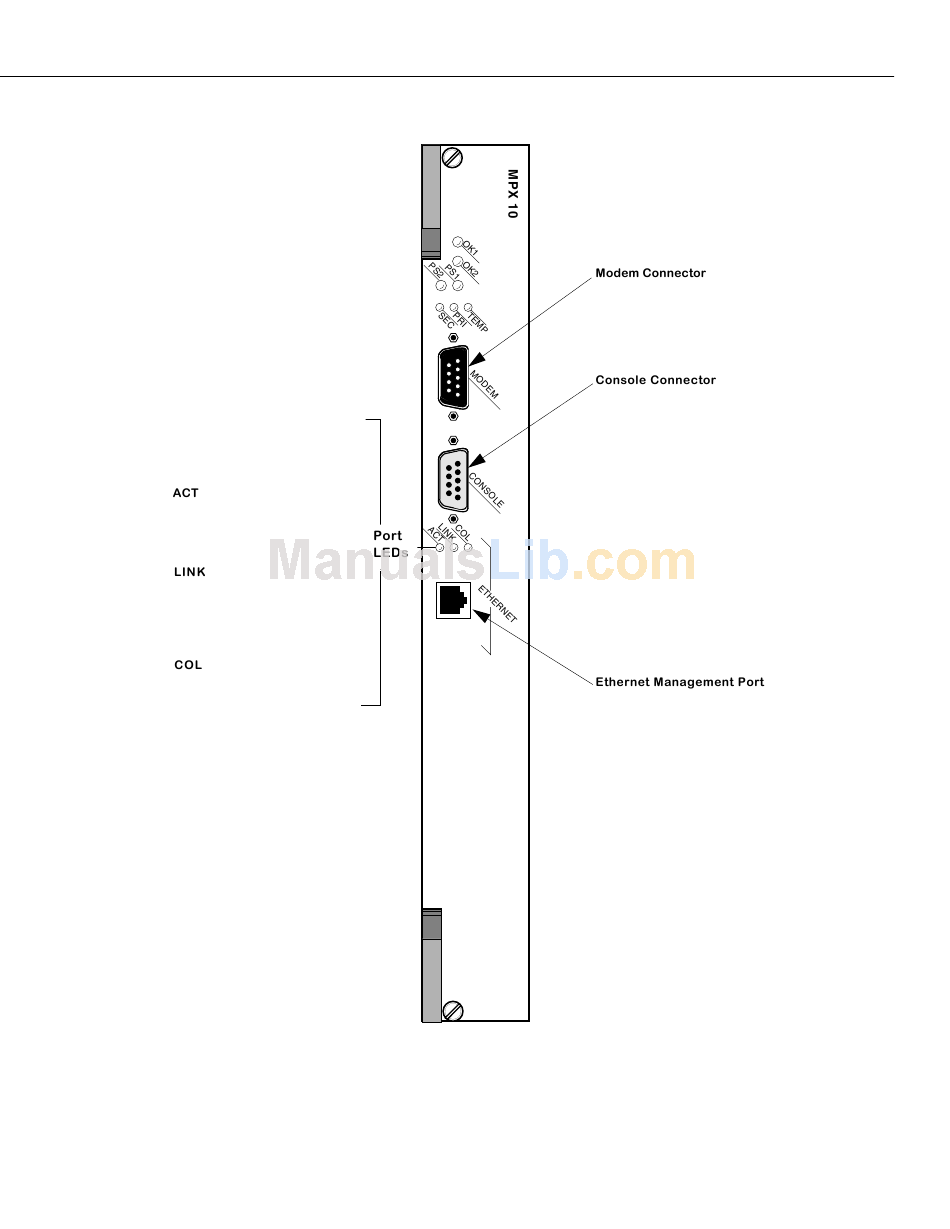

Omni Switch/Router Management Processor Module (MPX) Features
MPX Management Connectors
. A male serial DB-
9 DTE connector for switch file trans-
fers and network management func-
tions.
. A female serial
DB-9 DCE connector for switch file
transfers and network management
functions.
. Copper
RJ-45 (shown here) and fiber ST
ports are available for rapid switch
file transfers and network manage-
ment functions.
Page 2-3
