Reference Manual
ADC CIRCUIT
By completing the self test for a large number of digital waveform
values, the CRC accelerator can compute a final CRC result. By
comparing this CRC result with a known and previously verified
VOLTAGE REFERENCE OPTIONS
The ADC features internal 1.82 V and 2.5 V voltage reference
sources, as shown in
Figure
14.
analog.com
CRC result, all of the digital blocks shown in
checked for errors. Example code demonstrating how to enable this
feature is provided with the EVAL-ADuCM356QSPZ.

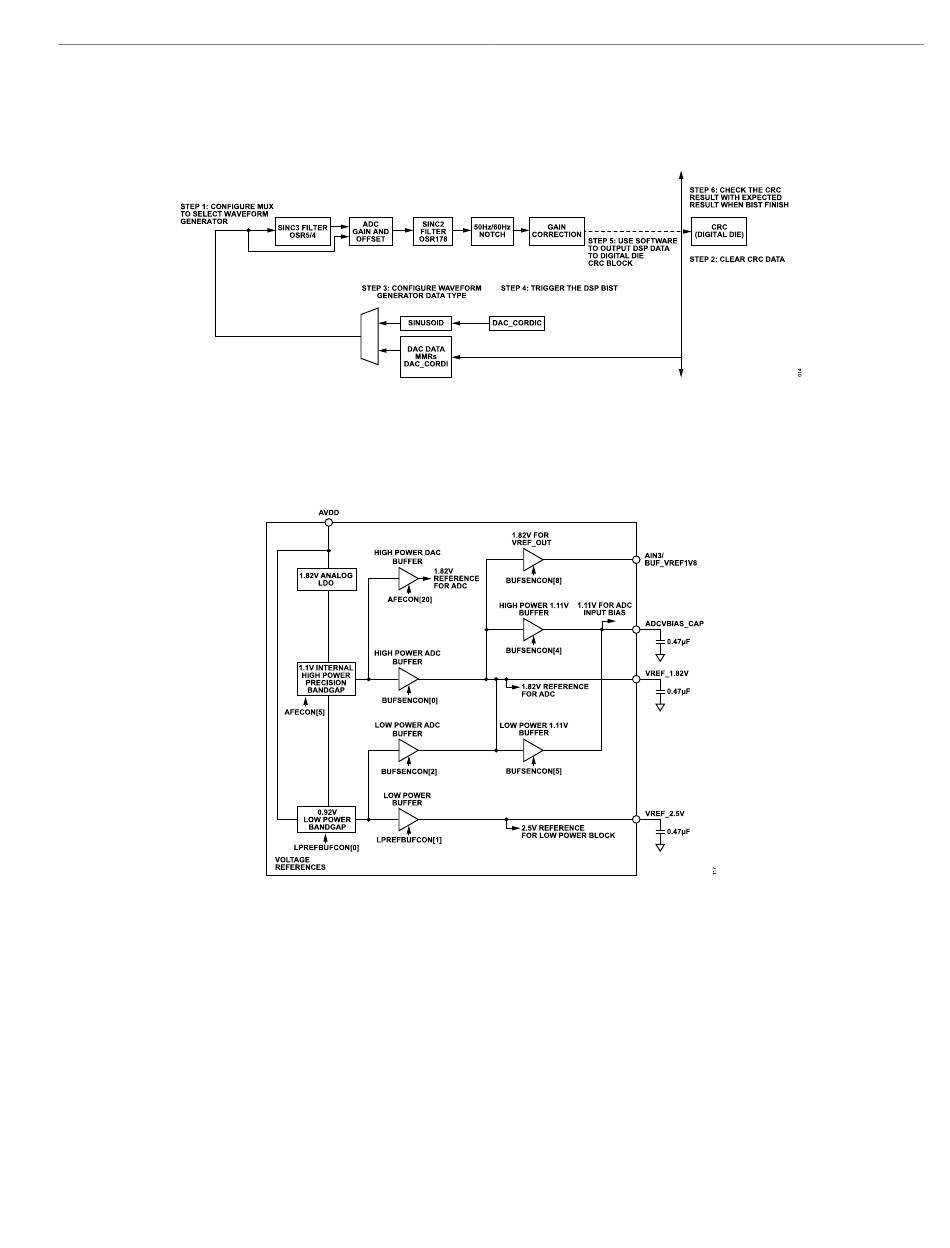

Figure 13. ADC Built In Self Test Feature
Figure 14. ADC Voltage Reference Options
ADuCM356
Figure 13
can be
Rev. A | 60 of 312
