SYSTEM RESETS

There are three primary reset sources on the digital die, as shown
in Figure 4. A digital die watchdog timer is also available, but is
disabled by default. These reset sources are as follows:
External reset.
►
POR.
►
Software reset.
►
In addition, there are four similar reset sources on the analog die,
as follows:
External reset.
►
POR.
►
Software reset of digital device.
►
Watchdog timer reset.
►

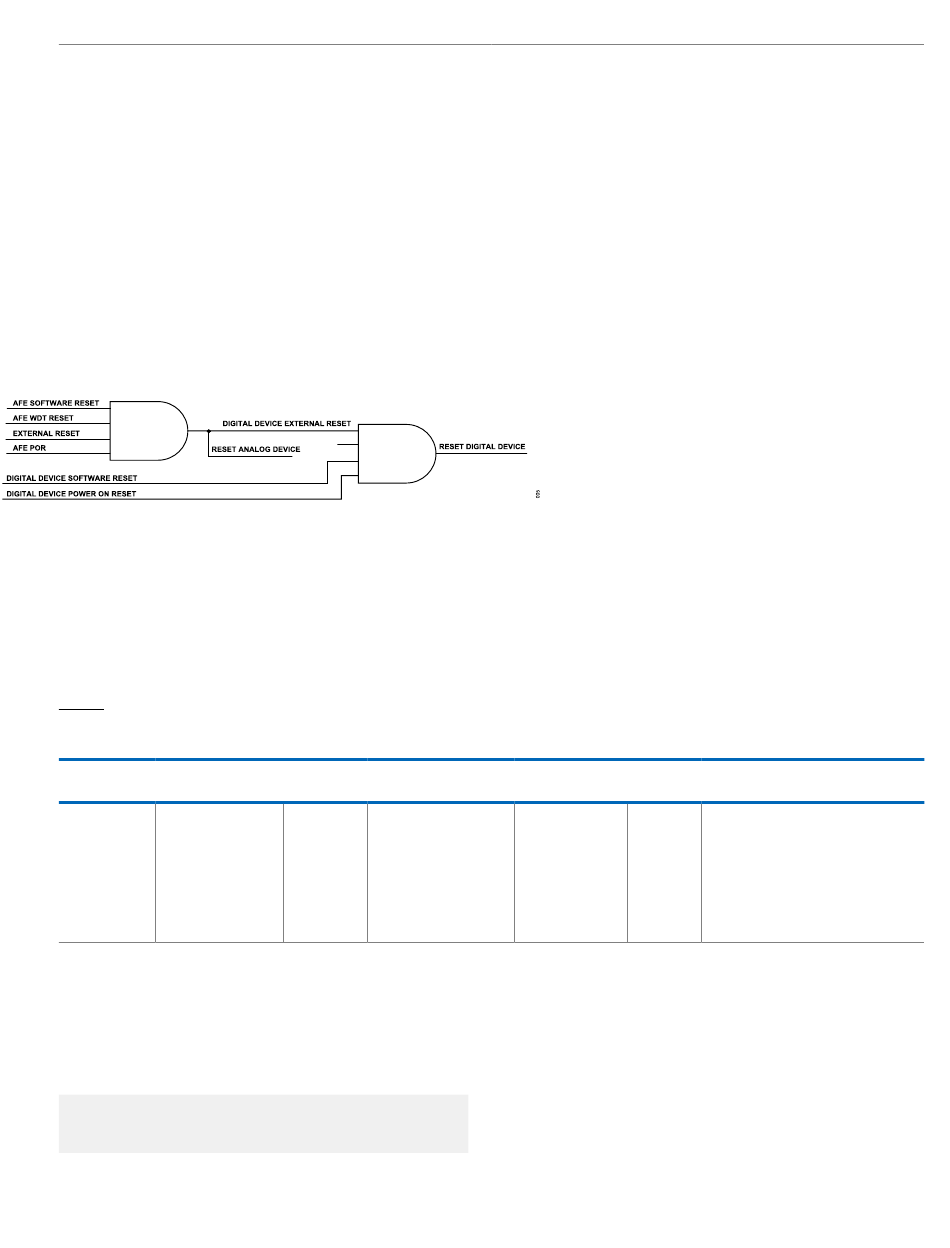

Figure 4. Reset Sources of the ADuCM356
The analog die POR and digital die POR are differentiated due to
separate power supplies. Two AFE reset sources are also reported
to the digital die as an external reset.
On both dice, a POR circuit is present. If either POR circuit triggers,
the entire chip resets and all control registers and circuitry return
to their default state. Likewise, both dice have an external reset.
The external pin reset or hardware reset occurs when the external
RESET pin is pulled low. All circuits and control registers return
Table 33. Digital Die Reset Implications
Reset External Pins to
Reset Default State
1
Software Yes
Watchdog Yes
External Reset Yes
Pin
POR Yes
1
The GPIOx pins return to their default state (same as a POR event).
2
Random access memory (RAM) is not valid in the case of a reset following a UART download.
Software Reset Command
The ARM Cortex-M3 supports a software reset command. Call the
reset by using the following CMSIS library function:
NVIC_SystemReset();
Software reset
analog.com
Execute Reset All MMRs Except
Kernel RST_STAT Register
Yes Yes
Yes Yes
Yes Yes
Yes Yes
// Call
to their default states. The analog die watchdog timer reset circuit
generates a reset if it is not refreshed correctly. By default, a
watchdog timer reset resets all circuits and control registers.
The RST_STAT register indicates the source of the last reset to
the digital die. This register can be used during a reset exception
service routine to identify the source of the reset to the digital
die. The RSTSTA register indicates the source of the last reset to
the analog die. The RSTSTA register can be used during a reset
exception service routine to identify the source of the reset to the
analog die.
After a reset sequence, the on-chip kernel completes a self check
of the analog die. Though problems are unlikely, if an issue occurs,
AFEDIESTA, Bit 0 sets to 1. After every reset, read this bit. If this bit
is read as 1, do not continue with analog die operations.

DIGITAL DIE RESET OPERATION

The software system reset is provided as part of the Arm Cortex-M3
processor. To generate a software system reset, call the NVIC_Sys-
temReset() function. This function effectively writes 0x05FA to the
16 MSBs of the Cortex register, AIRCR, Address 0xE000ED0C.
The NVIC_SystemReset() function, along with other useful func-
tions, are defined in the Cortex microcontroller software interface
standard (CMSIS) header files that are provided with the tools from
third party vendors. The NVIC_SystemReset() function is defined in
the core_cm3.h file.
The RST_STAT register stores the cause for the reset until it is
cleared by writing to the same register. The RST_STAT register
can be used during a reset exception service routine to identify the
source of the reset. The watchdog timer is enabled by default after
a reset. Table 33 lists details of all reset types.
Reset All
Peripherals Valid SRAM RST_STAT Register After Reset Event
2
Yes Yes/No
2
Yes Yes/No
2
Yes Yes/No
Yes No
This function involves a write the SYSRESETREQ bit in the Cortex
AIRCR register. See the ARM Cortex-M3 user manual for details
on this register. When a software reset of the digital die is called,
the chip is reset and all registers on both dice return to their default
states.
ADuCM356
RST_STAT, Bit 3 = 1
RSTSTA, Bit 2 = 1
RST_STAT, Bit 1 = 1
RST_STAT, Bit 0 = 1 and RST_STAT,
Bits[5:4] have information on the cause of
POR reset
