FLASH CONTROLLER
FLASH CONTROLLER FEATURES
The ADuCM356 processor includes 256 kB of embedded flash
memory available for access through the flash controller. The em-
bedded flash has a 72-bit wide data bus, providing two 32-bit words
of data and one corresponding 8-bit ECC byte per access.
The flash controller is coupled with a cache controller module that
provides two arm high-speed bus (AHB) ports: one port for reading
data (DCode), and the other for reading instructions (ICode). A pre-
fetch mechanism is implemented in the flash controller to optimize
ICode read performance.
Flash writes are supported by a keyhole mechanism through arm
peripheral bus (APB) writes to memory mapped registers. The flash
controller includes support for DMA-based keyhole writes.
FLASH CONTROLLER OVERVIEW
Key flash controller features include the following:
The prefetch buffer provides optimal performance when reading
►
consecutive addresses on the ICode interface.
Simultaneous ICode and DCode read accesses. DCode has
►
priority on contention. Simultaneous reads are possible if ICode
returns buffered data from prefetch.
DMA based keyhole writes, including address autoincrement for
►
sequential accesses.
ECC for error detection and correction. Errors and corrections
►
may be reported as bus errors on the ICode or DCode bus as
interrupts or ignored.
SUPPORTED COMMANDS
The following is a summary of the commands supported by the
flash controller:
analog.com
Read. Supported through the ICode and DCode interfaces.
►
Write. Provided by a keyhole mechanism through memory map-
►
ped registers.
Mass erase. Clears all user data and program code.
►
Page erase. Clears user data or program code from a 2 kB page
►
in flash.
Signature. Generates and verifies signatures for any set of
►
contiguous whole pages of user data or program code.
Abort. Terminates a command in progress.
►
PROTECTION AND INTEGRITY FEATURES
Protection and integrity features include the following:
A fixed user key is required for running protected commands
►
including mass erase and page erase.
Optional and user definable write protection for user accessible
►
memory.
Optional 8-bit ECC. Enabled by user code, off by default.
►
FLASH CONTROLLER OPERATION
A flash block of 256 kB is available for user code and data, from
0 to 0x3FFFF. It is not possible to execute flash while erasing a
flash page at the same time. The flash provides a 64-bit data bus,
plus eight bits for corresponding ECC metadata. The memory is
organized as a number of pages, each 2 kB in size, as well as 256
bytes reserved for ECC. See
Figure 50

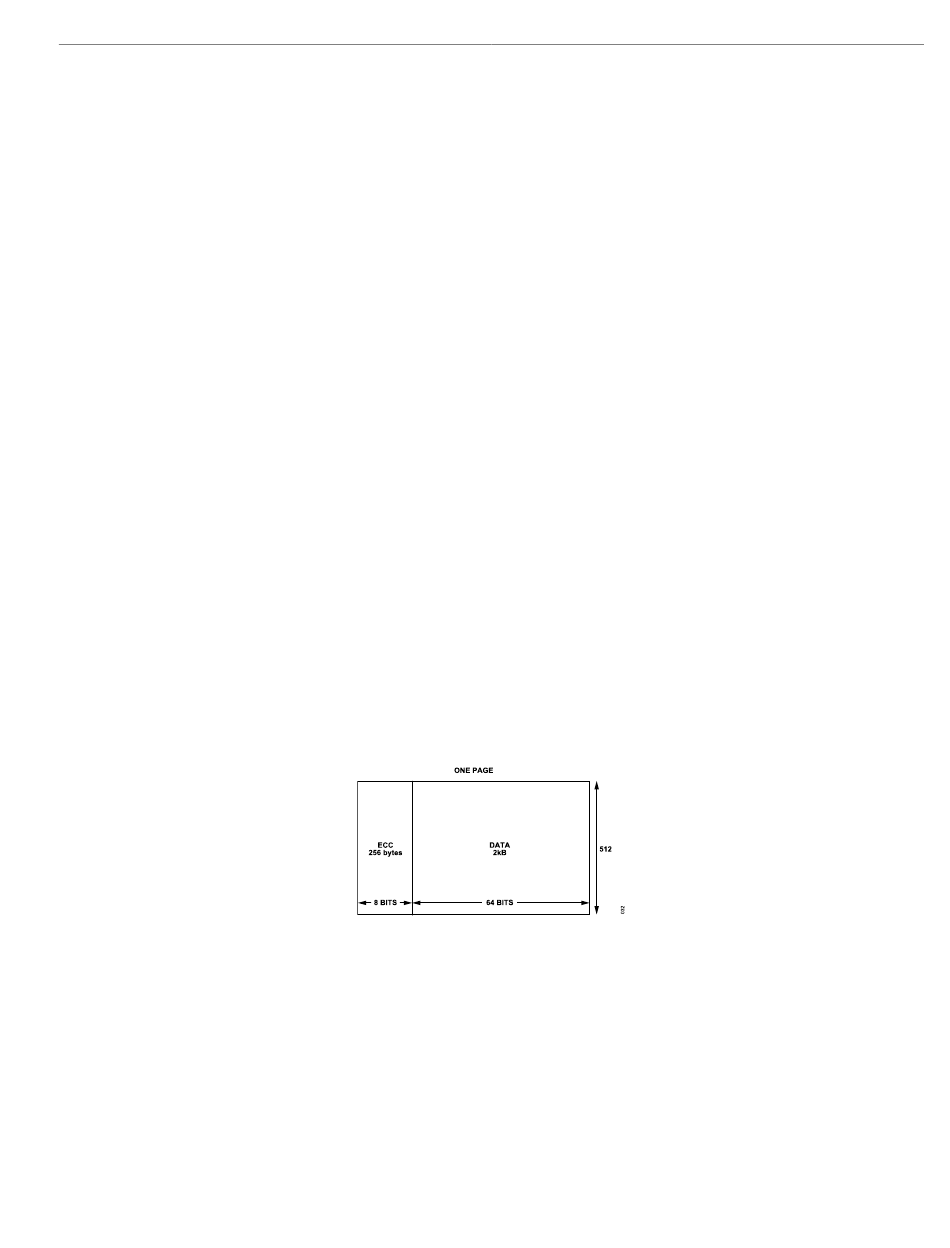

Figure 49. ADuCM356 Flash Page Structure
Figure 49
for details on flash, and
for a full over overview of the flash page structure.
ADuCM356
Rev. A | 179 of 312
