7B-56 AUTOMATIC TRANSMISSION (4 A / T)
ADJUSTMENT

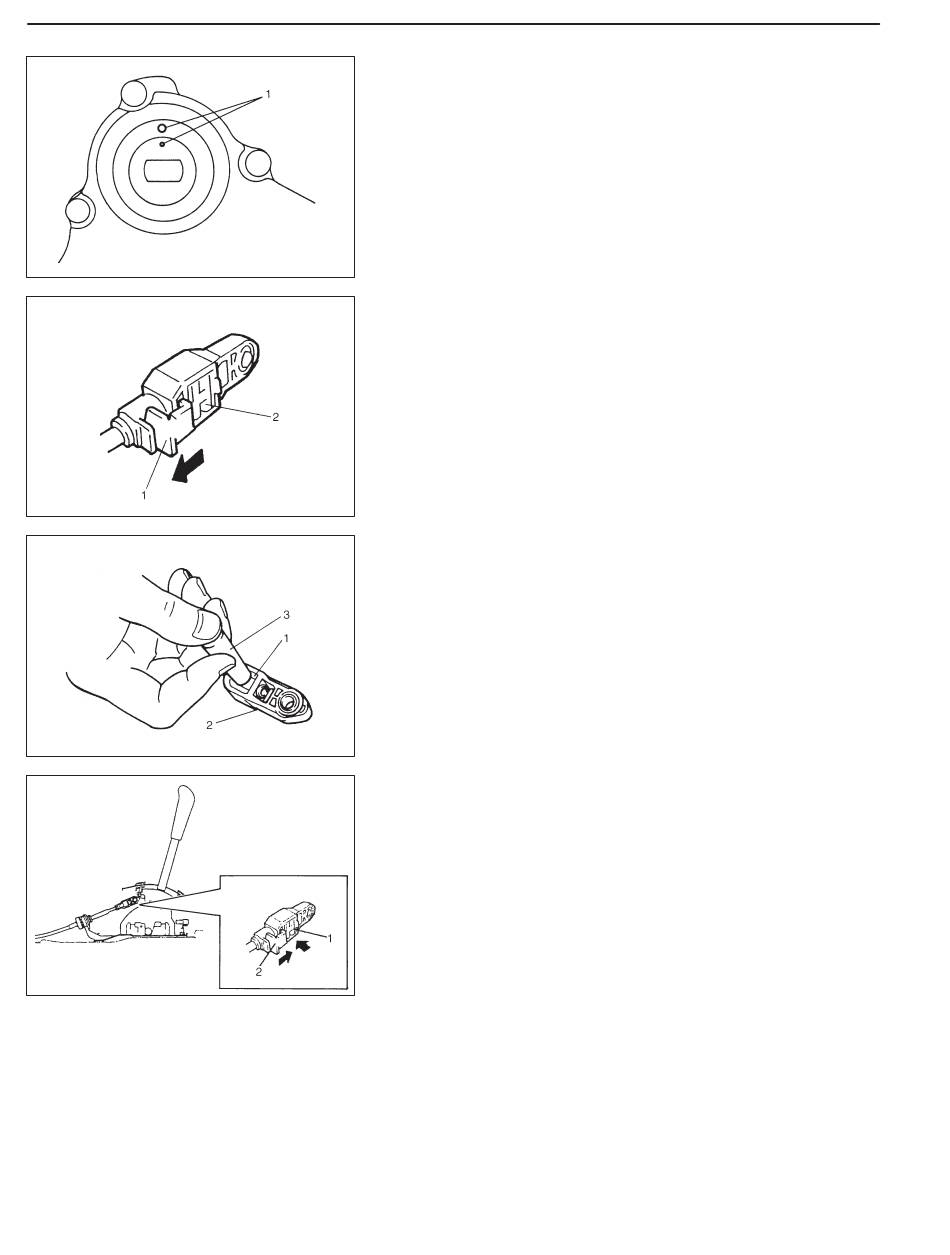

1) Turn shift switch to have the match marks (1) line up (shift switch
"N" range).
2) Remove adjuster (cable end) from selector pin.
3) Release lock plate (1) which restrict moving of cable end holder
(2).
4) Push cable end holder (1) out from eye-end (2) using an ap-
propriate tool (3) to disengage cable.
5) Shift selector lever to "N" position.
6) Apply grease to selector pin and install adjuster (cable end) to
it.
Grease: 99000-25010
7) With both selector lever and shift switch kept each "N" position,
drive cable end holder (1) in until it locks cable.
8) Slide lock plate (2) to secure cable end holder in position.
9) After selector rod was installed, check for the following.
D Push vehicle with selector lever shifted to P range.
Vehicle should not move.
D Vehicle can not be driven in N range.
D Vehicle can be driven in D, 2 and L ranges.
D Vehicle can be backed in R range.
