Auth Guest-Vlan Forward - Allied Telesis CentreCOM FS980M/9 Command Reference Manual

A C
UTHENTICATION OMMANDS
-

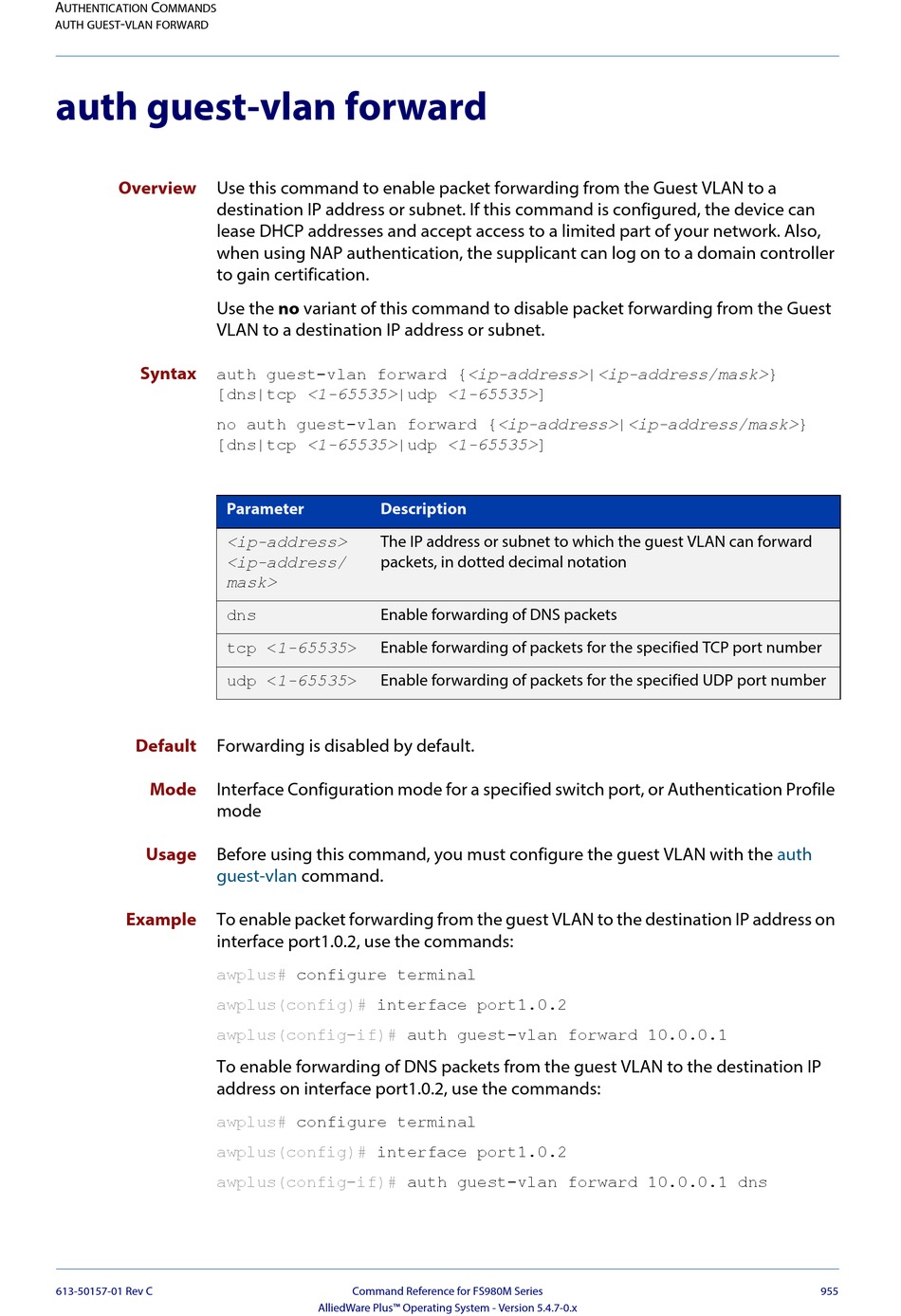

AUTH GUEST VLAN FORWARD

auth guest-vlan forward

Overview Use this command to enable packet forwarding from the Guest VLAN to a
destination IP address or subnet. If this command is configured, the device can
lease DHCP addresses and accept access to a limited part of your network. Also,
when using NAP authentication, the supplicant can log on to a domain controller
to gain certification.
Use the no variant of this command to disable packet forwarding from the Guest
VLAN to a destination IP address or subnet.
auth guest-vlan forward {<ip-address>|<ip-address/mask>}
Syntax
[dns|tcp <1-65535>|udp <1-65535>]
no auth guest-vlan forward {<ip-address>|<ip-address/mask>}
[dns|tcp <1-65535>|udp <1-65535>]
Default Forwarding is disabled by default.
Mode Interface Configuration mode for a specified switch port, or Authentication Profile
mode
Usage Before using this command, you must configure the guest VLAN with the
guest-vlan
Example To enable packet forwarding from the guest VLAN to the destination IP address on
interface port1.0.2, use the commands:
awplus#
awplus(config)#
awplus(config-if)#
To enable forwarding of DNS packets from the guest VLAN to the destination IP
address on interface port1.0.2, use the commands:
awplus#
awplus(config)#
awplus(config-if)#
613-50157-01 Rev C
Parameter Description
<ip-address>
The IP address or subnet to which the guest VLAN can forward

<ip-address/
packets, in dotted decimal notation
mask>
dns
Enable forwarding of DNS packets
tcp <1-65535>
Enable forwarding of packets for the specified TCP port number
udp <1-65535>
Enable forwarding of packets for the specified UDP port number
command.
configure terminal
interface port1.0.2
configure terminal
interface port1.0.2
Command Reference for FS980M Series
AlliedWare Plus™ Operating System - Version 5.4.7-0.x
auth guest-vlan forward 10.0.0.1
auth guest-vlan forward 10.0.0.1 dns
auth
955
