shipping/transportation and operating conditions. The torque applied to the mounting hardware should not
exceed 65 in-lb (7.34 N•m).
See Figure 386 for RTD module overall dimensions. All dimensions are shown in inches with millimeters
in parenthesis.
8.38 [212.75]
2.24 [56.84]

Connections

RTD module connections are dependent on the application. Incorrect wiring may result in damage to the
module.
Be sure that the RTD module is hard-wired to earth ground with no
smaller than 12 AWG (3.31 mm
ground terminal on the module.
Terminations
The terminal interface consists of permanently mounted connectors with screw-down compression
terminals.
RTD module connections are made with one 6-position connector, two 12-position connectors, and two
15-position connectors. Connector screw terminals accept a maximum wire size of 12 AWG (3.31 mm
RTD Module
6.38 [161.95]
6.75 [171.35]

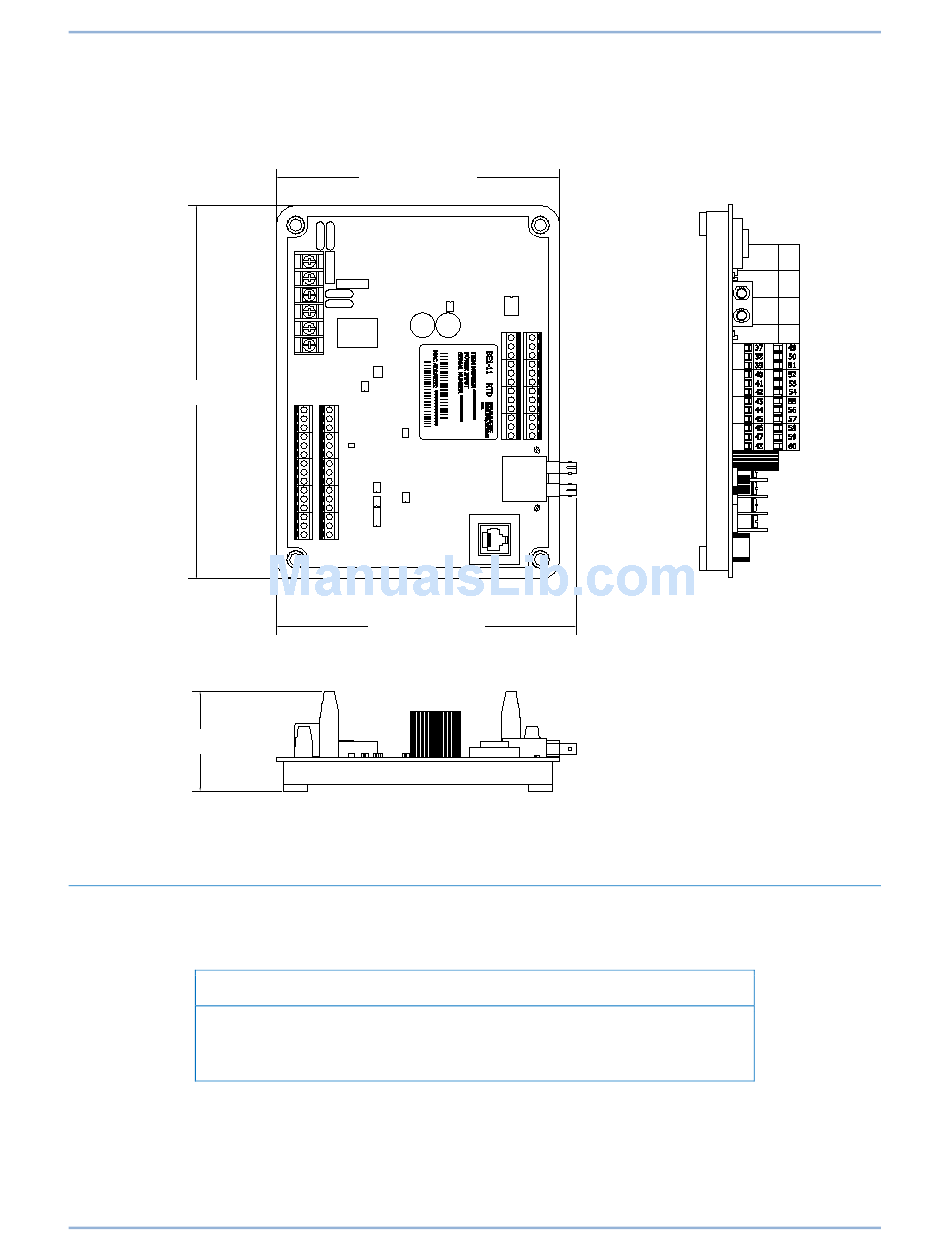

Figure 386. RTD Module Overall Dimensions
Note
2
) copper wire attached to the chassis
9424200994 Rev U
P0069-19
2 ).
