Setting Value
Source CT Circuit 1
51-1 Enabled
Residual
Step 2: Use BESTCOMSPlus to configure the BESTlogicPlus programmable logic shown in Figure 317.
•
Blocking is disabled.
•
OUT1 closes for 51-1 Trip.
•
OUT2 closes for 51-1 Pickup.
•
Fault recording is enabled.
Step 3: Use BESTCOMSPlus to open the Protection, Current, Inverse Overcurrent (51-1) screen and
send the low range test settings (minimum pickup setting) to the BE1-11g for your sensing input
type in Table 206.
Sensing Input Type
5 A
1 A
Step 4: Prepare to monitor the 51-1 function operation. Operation can be verified by monitoring OUT2
(see Figure 317).
Step 5: Connect a current source to terminals D1 and D2 (A-phase).
Step 6: Slowly increase the A-phase current until OUT2 closes and record the pickup. Verify that there
is a 51-1-Residual target on the front-panel display. Slowly decrease the applied current until
OUT2 opens and record the dropout.
Step 7: Repeat step 6 for the middle and high range pickup settings for your sensing input type. Record
the results.
Step 8: (Optional.) Repeat steps 1 through 7 for settings group 1, 2, and 3.
Step 9: (Optional.) Repeat steps 1 through 8 for 51-2, 51-3, 51-4, 51-5, 51-6, and 51-7.
Step 10: (Optional.) Repeat steps 1 through 9 with CT Circuit 2 as the source for protection systems
equipped with two sets of CTs. In step 5, replace D1 with F1, D2 with F2, etc.
Inverse Overcurrent (51) Test
BESTCOMSPlus Screen
Protection, Current, Instantaneous
Overcurrent (51-1)
Target Configuration, Targets

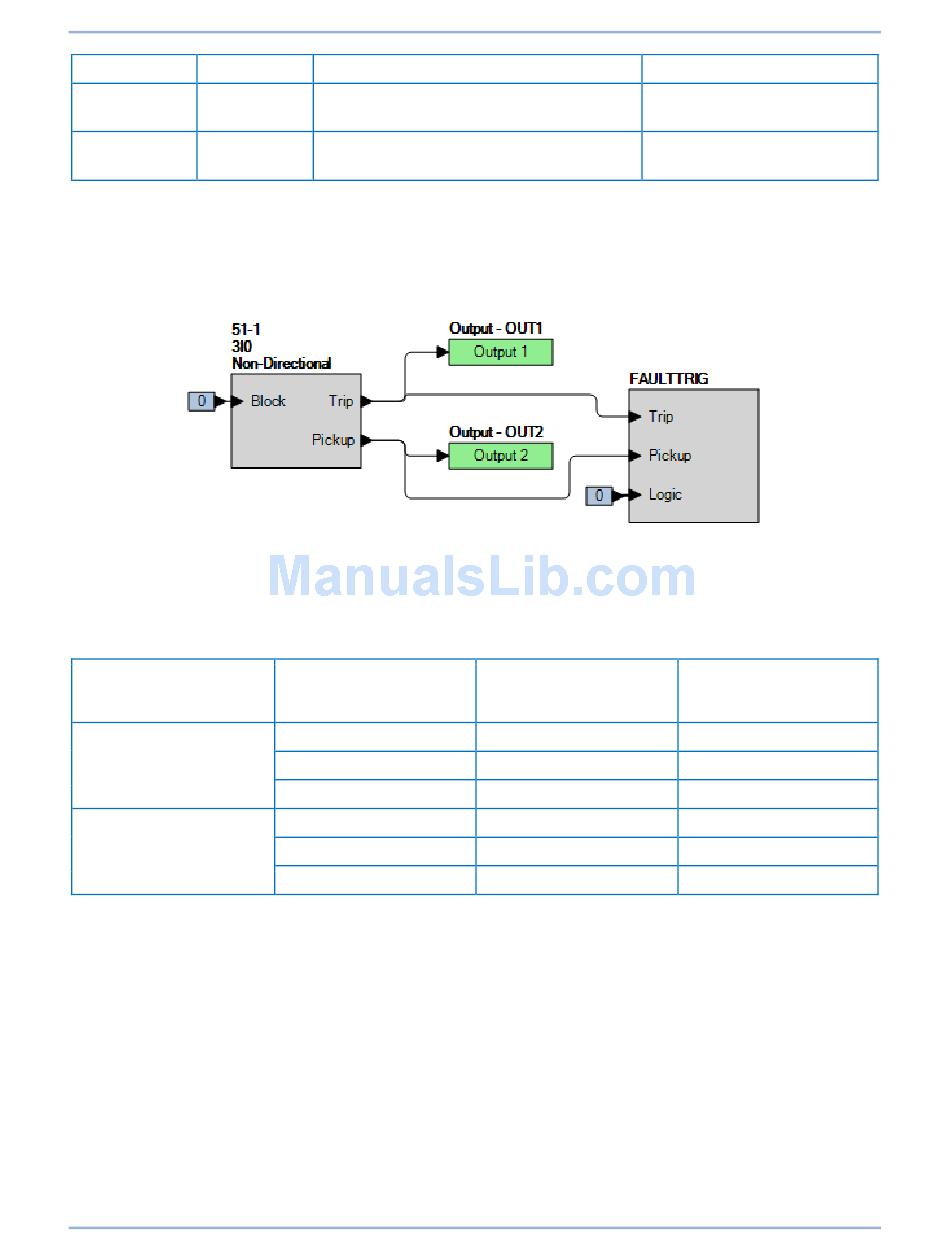

Figure 317. BESTlogicPlus Settings (3I0 Mode)
Table 206. Pickup Test Settings (3I0 Mode)
Range
Low
Middle
High
Low
Middle
High
Selects CT circuit 1 as the
source
Enables residual target for
51-1
Pickup Setting
0.5 A
5.0 A
16.0 A
0.1 A
1.0 A
3.2 A
