Basler BE1-11g Instruction Manual page 328

316

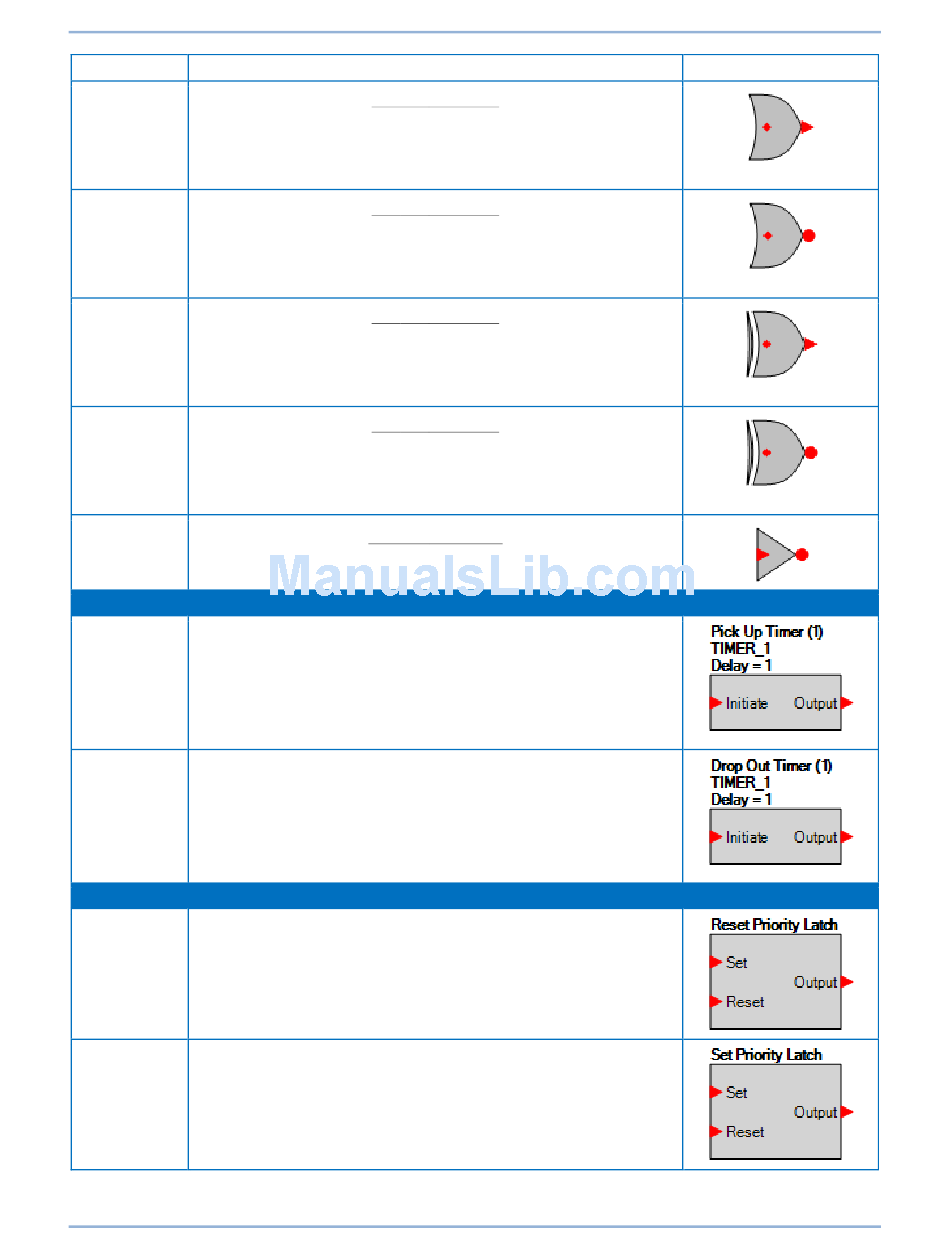

Name
OR
NOR
XOR
XNOR
NOT
(INVERTER)
Pick Up A pickup timer produces a true output when the elapsed time is
Timer greater than or equal to the Pickup Time setting after a false to true
transition occurs on the Initiate input from the connected logic.
Whenever the Initiate input status transitions to false, the output
transitions to false immediately. Refer to Programming
BESTlogicPlus, Pickup and Dropout Timers. Double-click or right-
click on the logic timer to select from timers 1 through 16.
Drop Out A drop out timer produces a true output when the elapsed time is
Timer greater than or equal to the Dropout Time setting after a true to false
transition occurs on the Initiate input from the connected logic.
Whenever the Initiate input transitions to true, the output transitions
to false immediately. Refer to Programming BESTlogicPlus, Pickup
and Dropout Timers. Double-click or right-click on the logic timer to
select from timers 1 through 16.
Reset Priority The latch is set when the Set input is true and the Reset input is
Latch false. The latch is cleared when the Reset input is true.
Set Priority The latch is set when the Set input is true. The latch is cleared when
Latch the Set input is false and the Reset input is true.
BESTlogic™Plus
Description
Input Output
0 0 0
0 1 1
1 0 1
1 1 1
Input Output
0 0 1
0 1 0
1 0 0
1 1 0
Input Output
0 0 0
0 1 1
1 0 1
1 1 0
Input Output
0 0 1
0 1 0
1 0 0
1 1 1
Input Output
0 1
1 0
Pickup and Dropout Timers
Latches
9424200994 Rev U
Symbol
BE1-11g
