If the 60FL element trip logic is true and Block Phase/V1 is enabled, all functions that use the phase
voltage are blocked. See the Fuse Loss (60FL) chapter for more information on the 60FL functions.
Protective elements blocked by 60FL should be set so that trip times are 60 milliseconds or greater to
assure proper coordination of blocking.
Block Logic Input
The Block input provides logic-supervision control of the element. When true, the Block input disables the
element by forcing the element outputs to logic 0. Connect the element Block input to the desired logic in
BESTlogicPlus. When the element is initially selected from the Elements view, the default condition of the
Block input is logic 0.

Logic Connections

Sync-check element logic connections are made on the BESTlogicPlus screen in BESTCOMSPlus. The
sync-check element logic block is illustrated in Figure 42. Logic inputs and outputs are summarized in
Table 12.
Logic
Name
Function
Block Input
Sync Output
Volt Monitor Output
Volt Synced Output
Angle Output
Synced
Slip Synced Output

Operational Settings

Sync-check element operational settings are configured on the Sync-Check (25) settings screen (Figure
43) in BESTCOMSPlus. Setting ranges and defaults are summarized in Table 13.
Sync-Check (25) Protection

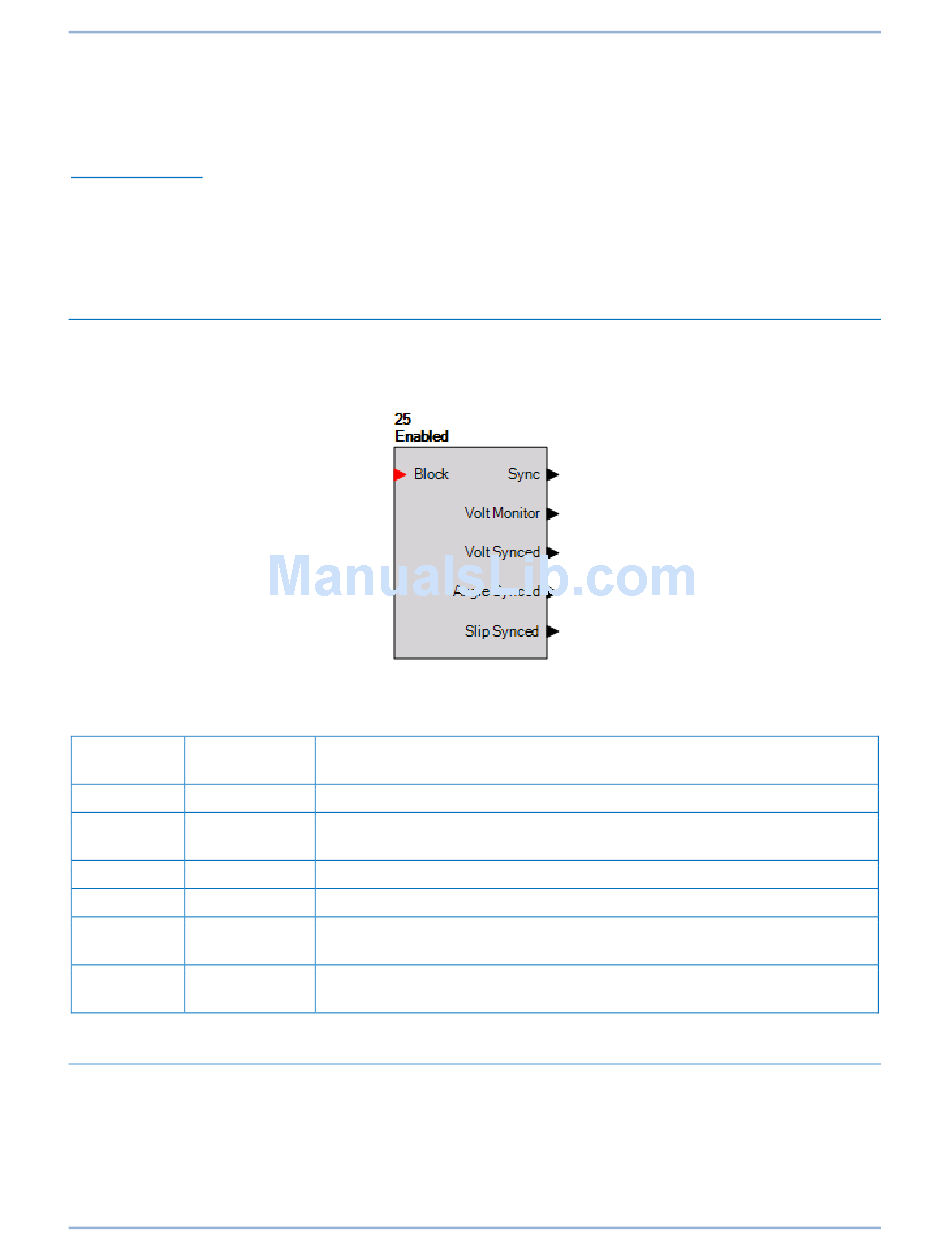

Figure 42. Sync-Check Element Logic Block
Table 12. Logic Inputs and Outputs
Disables the 25 function when true
True when the monitored voltage between the sources meets angle,
voltage, and slip criteria
True when the bus and/or line is dead
True when the voltage magnitude between sources is less than setting
True when the phase angle between sources is less than the Slip
Angle setting
True when the frequency error between sources is less than the Slip
Frequency setting
