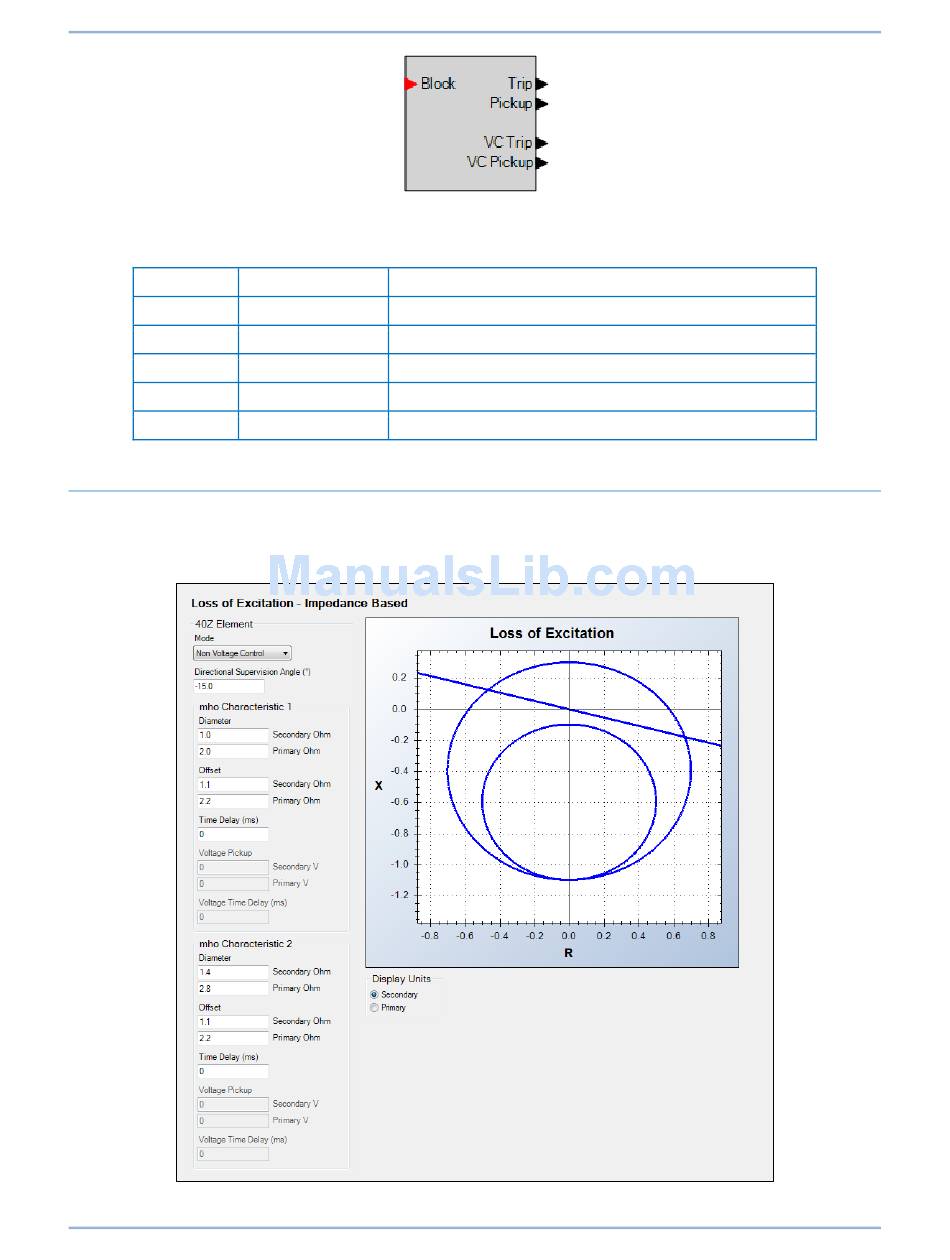

Figure 91. Loss of Excitation - Impedance Based Element Logic Block
Name
Block
Trip
Pickup
VC Trip
VC Pickup

Operational Settings

Loss of excitation - impedance based element operational settings are configured on the Loss of
Excitation - Impedance Based (40Z) settings screen (Figure 92) in BESTCOMSPlus. Setting ranges and
defaults are summarized in Table 55.
Figure 92. Loss of Excitation - Impedance Based Settings Screen
BE1-11g
Table 54. Logic Inputs and Outputs
Logic Function
Input Disables the 40Z function when true
Output True when the 40Z element is in a trip condition
Output True when the 40Z element is in a pickup condition
Output Voltage Control pickup
Output Voltage Control trip
Purpose
Loss of Excitation - Impedance Based (40Z) Protection
