Overexcitation (24)

General

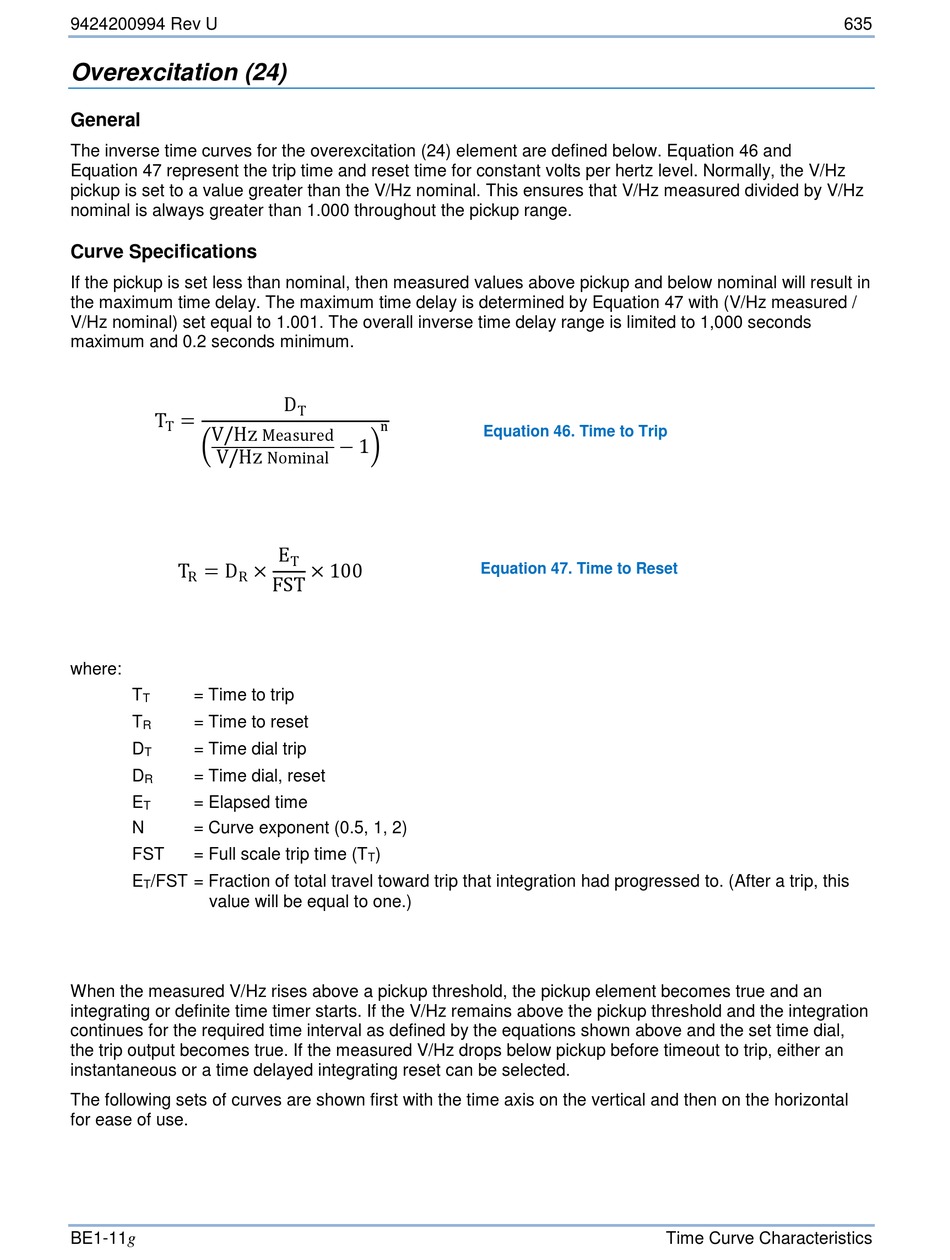

The inverse time curves for the overexcitation (24) element are defined below. Equation 46 and
Equation 47 represent the trip time and reset time for constant volts per hertz level. Normally, the V/Hz
pickup is set to a value greater than the V/Hz nominal. This ensures that V/Hz measured divided by V/Hz
nominal is always greater than 1.000 throughout the pickup range.
Curve Specifications
If the pickup is set less than nominal, then measured values above pickup and below nominal will result in
the maximum time delay. The maximum time delay is determined by Equation 47 with (V/Hz measured /
V/Hz nominal) set equal to 1.001. The overall inverse time delay range is limited to 1,000 seconds
maximum and 0.2 seconds minimum.
T =
V/Hz
T
�
V/Hz
T = D
R R
where:
T = Time to trip
T
T = Time to reset
R
D = Time dial trip
T
D = Time dial, reset
R
E = Elapsed time
T
N = Curve exponent (0.5, 1, 2)
FST = Full scale trip time (T
E /FST = Fraction of total travel toward trip that integration had progressed to. (After a trip, this
T
value will be equal to one.)
When the measured V/Hz rises above a pickup threshold, the pickup element becomes true and an
integrating or definite time timer starts. If the V/Hz remains above the pickup threshold and the integration
continues for the required time interval as defined by the equations shown above and the set time dial,
the trip output becomes true. If the measured V/Hz drops below pickup before timeout to trip, either an
instantaneous or a time delayed integrating reset can be selected.
The following sets of curves are shown first with the time axis on the vertical and then on the horizontal
for ease of use.
BE1-11g
D
T
n
Measured
− 1�
Nominal
E
× × 100
T
FST
)
T
Equation 46. Time to Trip
Equation 47. Time to Reset
