9424200994 Rev U 199

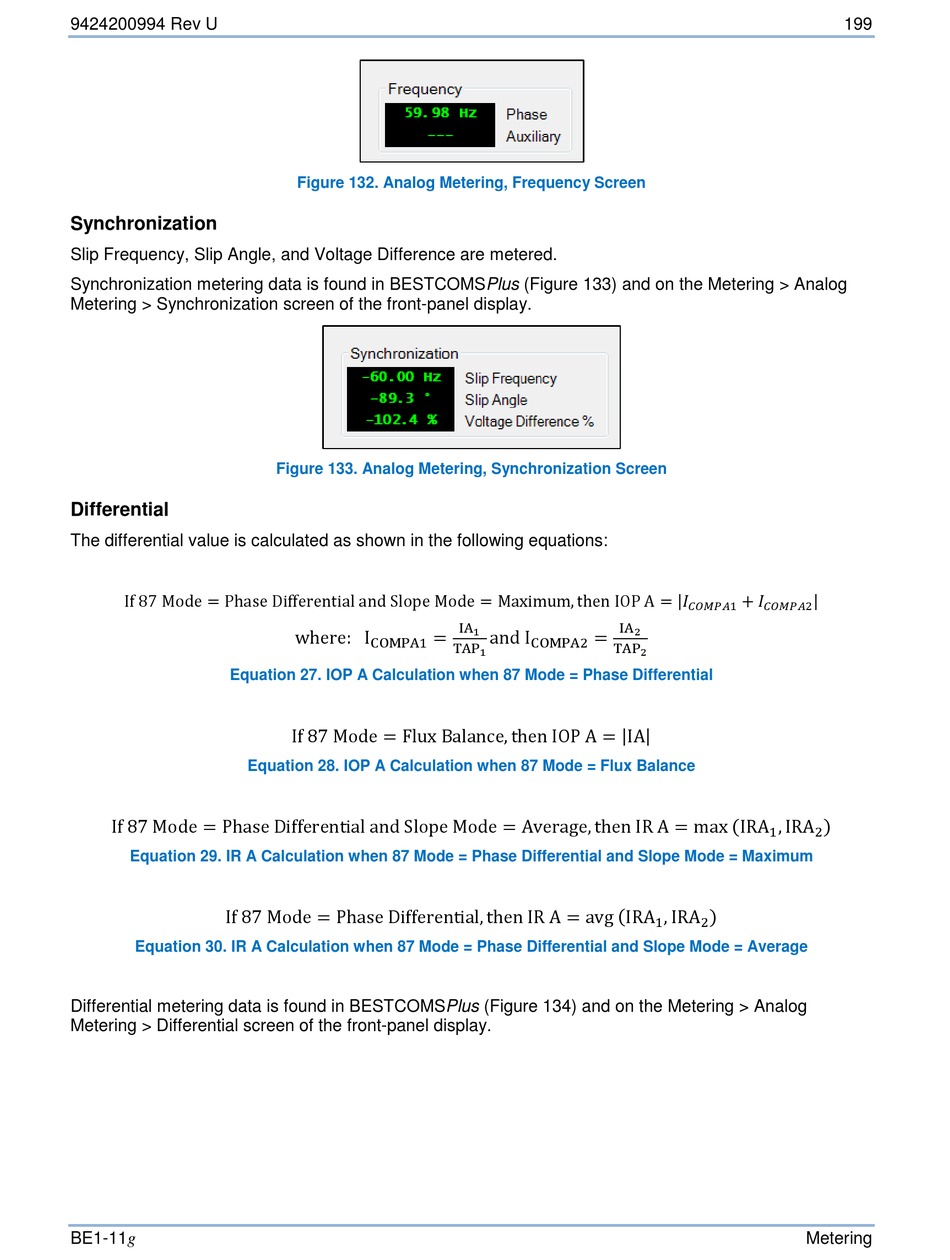

Figure 132. Analog Metering, Frequency Screen
Synchronization
Slip Frequency, Slip Angle, and Voltage Difference are metered.
Synchronization metering data is found in BESTCOMSPlus (Figure 133) and on the Metering > Analog
Metering > Synchronization screen of the front-panel display.
Figure 133. Analog Metering, Synchronization Screen
Differential
The differential value is calculated as shown in the following equations:
If 87 Mode = Phase Differential and Slope Mode = Maximum, then IOP A = | ���� |
+ ����
��������������������1 ��������������������2
where: I = and I =
IA IA
1 2
COMPA1 COMPA2
TAP TAP
1 2
Equation 27. IOP A Calculation when 87 Mode = Phase Differential
If 87 Mode = Flux Balance, then IOP A = | IA |
Equation 28. IOP A Calculation when 87 Mode = Flux Balance
If 87 Mode = Phase Differential and Slope Mode = Average, then IR A = max ( IRA , IRA )
1 2
Equation 29. IR A Calculation when 87 Mode = Phase Differential and Slope Mode = Maximum
If 87 Mode = Phase Differential, then IR A = avg ( IRA )
, IRA
1 2
Equation 30. IR A Calculation when 87 Mode = Phase Differential and Slope Mode = Average
Differential metering data is found in BESTCOMSPlus (Figure 134) and on the Metering > Analog
Metering > Differential screen of the front-panel display.
BE1-11g Metering
