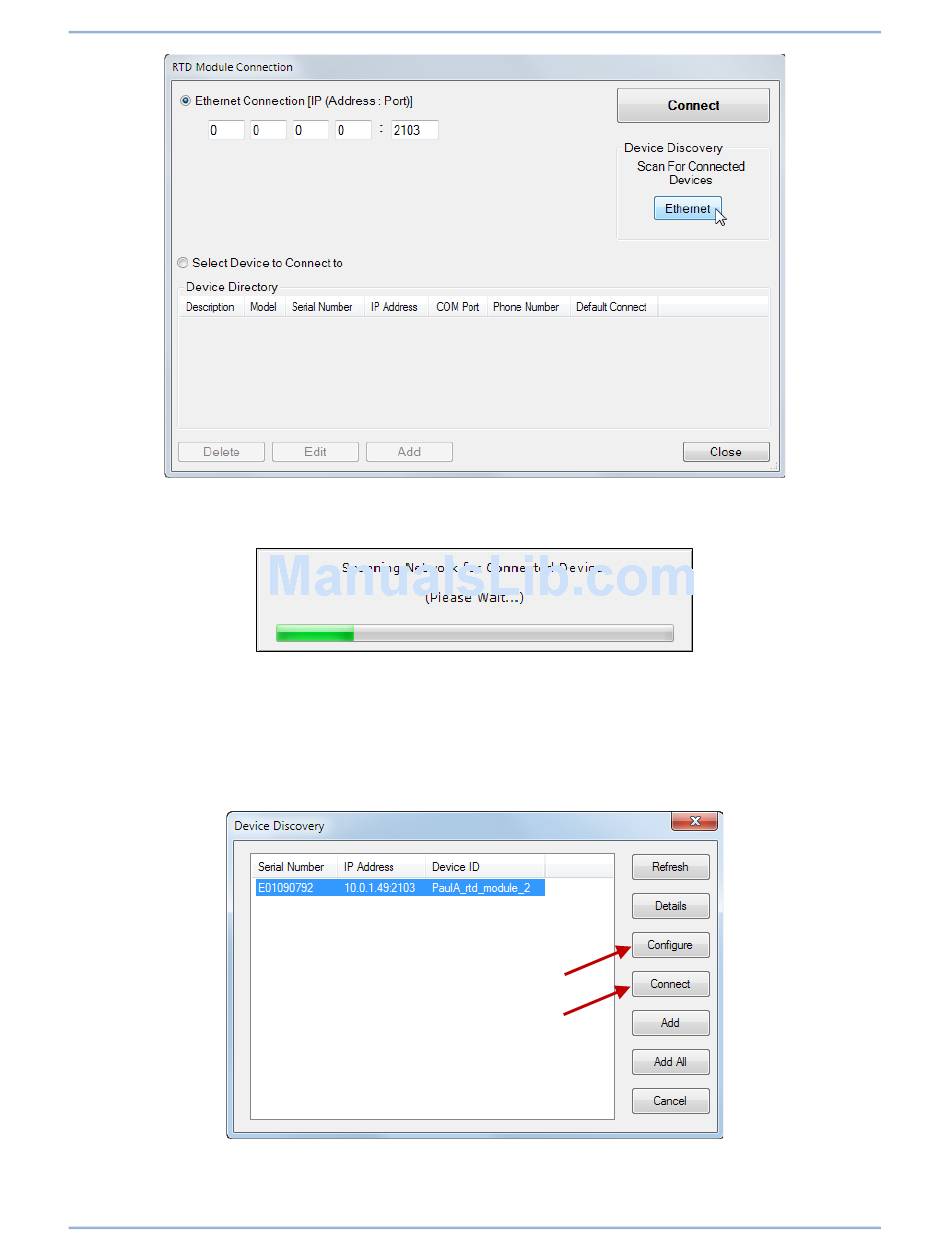

Figure 397. RTD Module Connection Screen
Wait until scanning is complete. See Figure 398.
Figure 398. Scanning for Connected Devices
The Device Discovery screen shown in Figure 399 appears. Use the computer mouse to highlight the
desired RTD module and click the Connect button (or proceed to configure communications as explained
in the next paragraph). The RTD Module plugin opens indicating that activation was successful. You can
now configure the RTD module settings.
Click the Configure button to change RTD module communication settings.
Figure 399. Device Discovery Screen
BE1-11g RTD Module
