Step 2: Use BESTCOMSPlus to configure the BESTlogicPlus programmable logic shown in Figure 300.
•
Blocking is disabled.
•
OUT1 closes for 59X-1 Trip.
•
OUT2 closes for 59X-1 Pickup.
•
Fault recording is enabled.
Step 3: Use BESTCOMSPlus to open the Protection, Voltage, Overvoltage (59X-1) screen and send
the first row of test settings in Table 163 to the BE1-11g.
Step 4: Prepare to monitor the 59X-1 function operation. Operation can be verified by monitoring OUT2
(see Figure 300).
Step 5: Connect and apply a 150 Vac, three-phase voltage source to terminals C13 (A-phase), C14 (B-
phase), C15 (C-phase), and C16 (neutral).
Step 6: Slowly increase the A-phase voltage until OUT2 closes around 265 volts (150 Vac nominal +
115 V 3V0 pickup setting) and record the pickup. Verify the 59X-1-3V0 target on the front-panel
display. Slowly decrease the A-phase voltage until OUT2 opens and record the dropout. Reset
the target.
Step 7: Verify the pickup and dropout accuracy at a pickup setting of 65 V and 20 V as listed in Table
163. Record the results.
Step 8: (Optional.) Repeat steps 1 through 7 for the B-phase and C-phase voltage inputs.
Step 9: (Optional.) Repeat steps 1 through 8 for settings group 1, 2, and 3.
Step 10: (Optional.) Repeat steps 1 through 9 for 59X-2, 59X-3, and 59X-4.
Timing Verification (3V0 Mode)
Step 1: Use BESTCOMSPlus to open the Protection, Voltage, Overvoltage (59X-1) screen and send
the first row of test settings in Table 164 to the BE1-11g for settings group 0.
Auxiliary Overvoltage (59X) Test

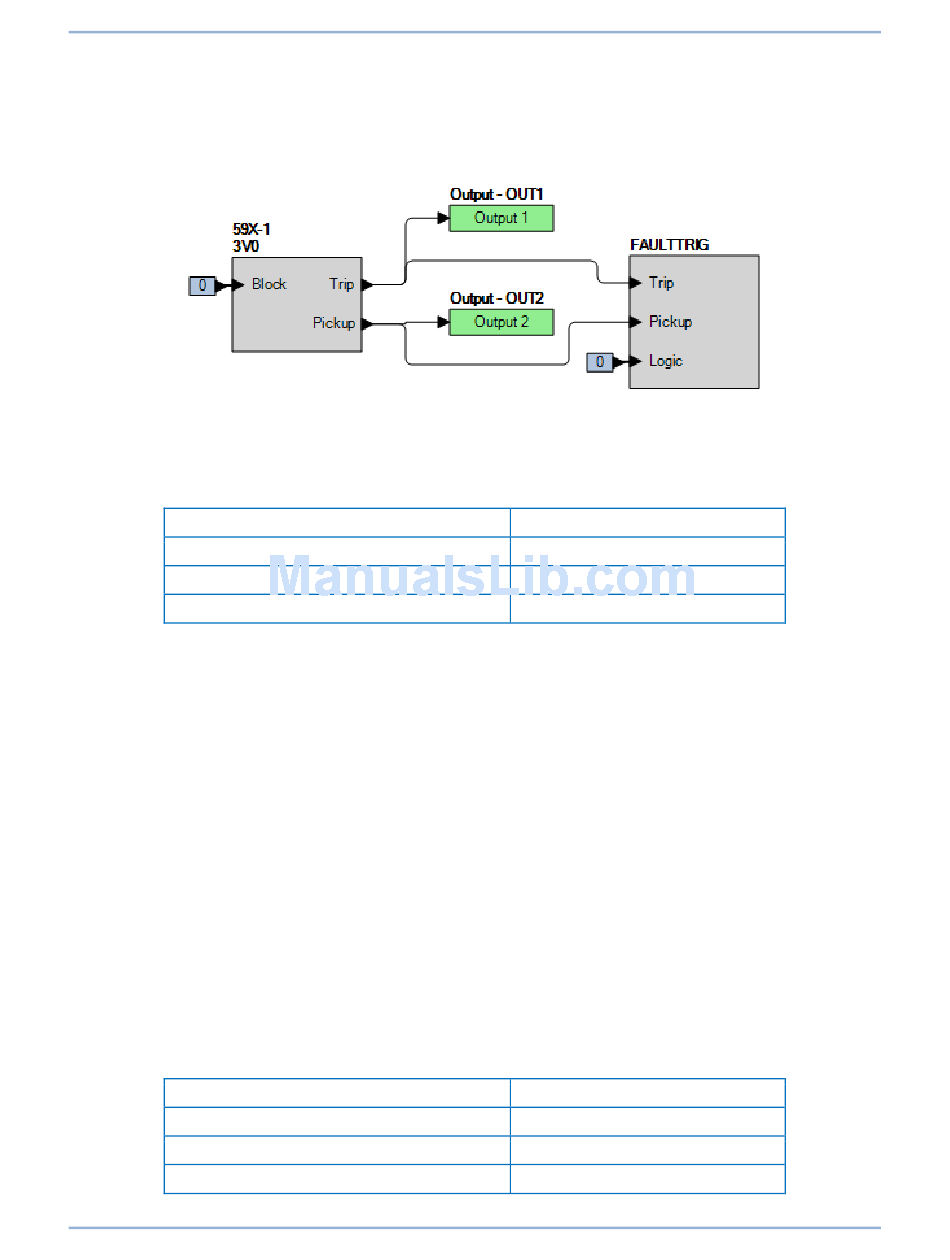

Figure 300. BESTlogicPlus Settings (3V0 Mode)
Table 163. Pickup Test Settings (3V0 Mode)
Pickup Setting
115 V
65 V
20 V
Table 164. Timing Test Settings (3V0 Mode)
Pickup Setting
65 V
65 V
65 V
