Basler BE1-11g Instruction Manual page 412

400
Setting
Element Mode Enabled
24 Enabled
24 Volts Per Hertz Major/Non-
Latching
Step 2: Use BESTCOMSPlus to configure the BESTlogicPlus programmable logic shown in Figure 290.
•
Blocking is disabled.
•
OUT1 closes for 24 Trip.
•
OUT2 closes for 24 Pickup.
Step 3: Use BESTCOMSPlus to open the Protection, Voltage, Overexcitation (24) screen and send the
test settings in Table 131 to the BE1-11g.
Setting
Inverse Time Pickup
Inverse Time Dial
Inverse Reset Dial
Curve Exponent
Definite Timer 1 Pickup
Definite Timer 2 Pickup
Alarm Pickup
Step 4: Prepare to monitor the operation of the 24 Alarm and Trip functions. Alarm operation can be
verified by monitoring the Major Alarm LED on the protection system's front panel. Operation of
the 24 Trip can be verified by monitoring OUT1.
Step 5: Connect a three-phase, 100 Vac/50-Hz or 120 Vac/60-hertz voltage source (depending on
user's nominal frequency) to Terminals C13 (A-phase), C14 (B-phase), C15 (C-phase), and
C16 (neutral).
Step 6: Apply A-phase voltage at nominal frequency and slowly increase until the Major Alarm LED
lights (V/H PU x Freq x % Alarm = PU) and record the alarm pickup. Slowly decrease the A-
phase voltage until the Major Alarm LED extinguishes and record the dropout.
Step 7: Apply A-phase voltage at nominal frequency and slowly increase until OUT2 closes (V/H Trip x
Freq = PU) and record the pickup. Verify that there is a 24 target on the front-panel display.
Slowly decrease the A-phase voltage until OUT2 opens and record the dropout.
Step 8: (Optional.) Repeat steps 1 through 7 for higher and lower alarm and pickup settings.
Step 9: (Optional.) Repeat steps 1 through 8 for frequencies other than nominal.
Overexcitation (24) Test
Value BESTCOMSPlus Screen
Protection, Voltage,
Overexcitation
Target Configuration, Targets
Alarm Configuration, Alarms

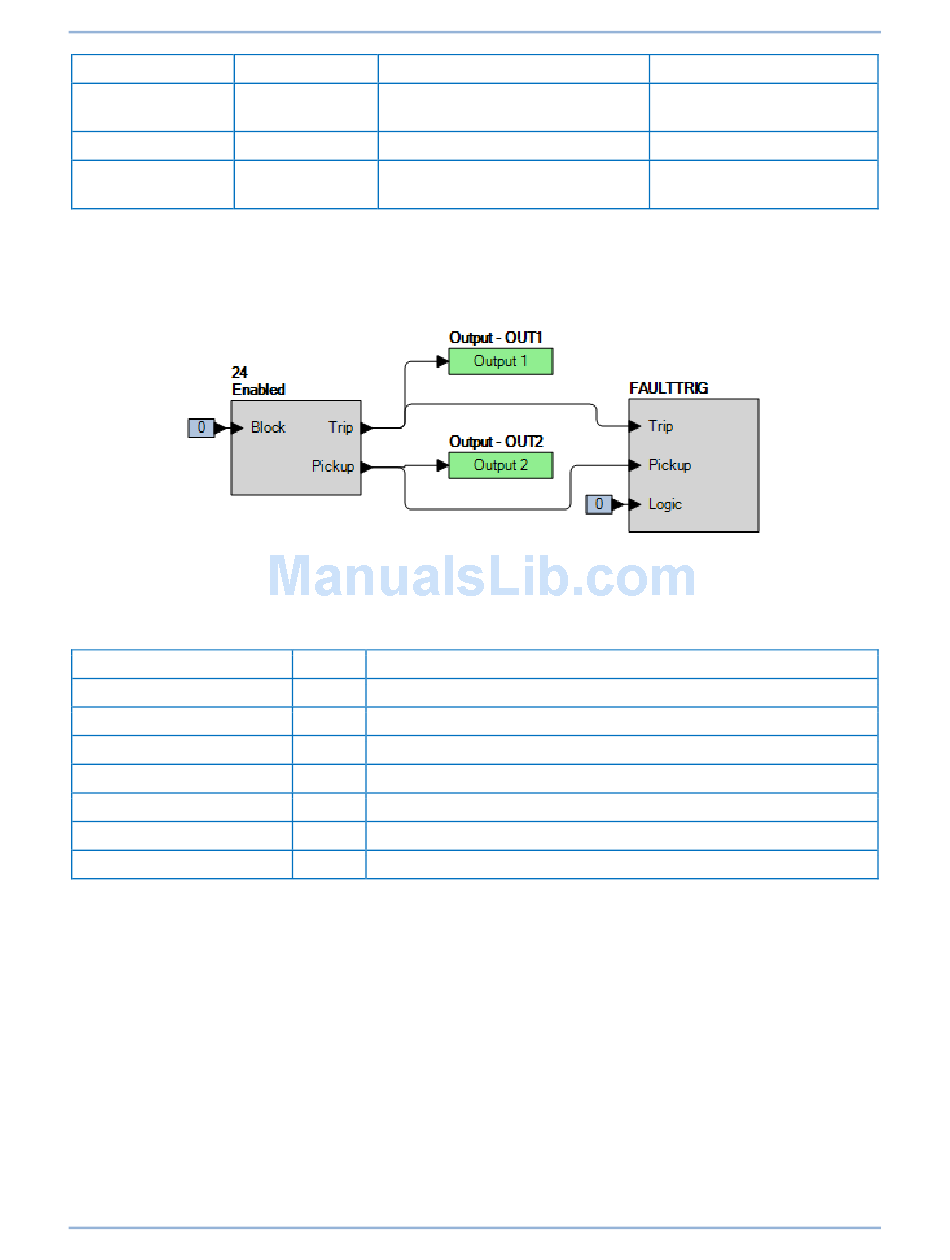

Figure 290. BESTlogicPlus Settings
Table 131. Alarm and Inverse Time Pickup Test Settings
Value
2.1 Sets Inverse Time Pickup at 105% of nominal (2.10 V/Hz)
0 Sets Inverse Time Dial at minimum
0 Sets Inverse Reset Dial at minimum
2 Sets Curve Exponent to 2
0 Disables Definite Timer 1 Pickup
0 Disables Definite Timer 2 Pickup
2.05 Sets Alarm at 102.5% of nominal (2.05 V/Hz)
9424200994 Rev U
Description
Enables 24 function
Enables target for 24
Enables alarm for 24
Description
BE1-11g
