Logic Connections

Virtual control switch element logic connections are made on the BESTlogicPlus screen in
BESTCOMSPlus. The virtual control switch element logic block is illustrated in Figure 106. Logic inputs
and outputs are summarized in Table 65.
Name
Set
Reset
Pulse
Informational Tag
Informational Untag
Blocking Tag
Blocking Untag
Output

Operational Settings

Virtual control switch element operational settings are configured on the Virtual Control Switches (43)
settings screen (Figure 107) in BESTCOMSPlus. Setting ranges and defaults are summarized in Table
66.
BE1-11g

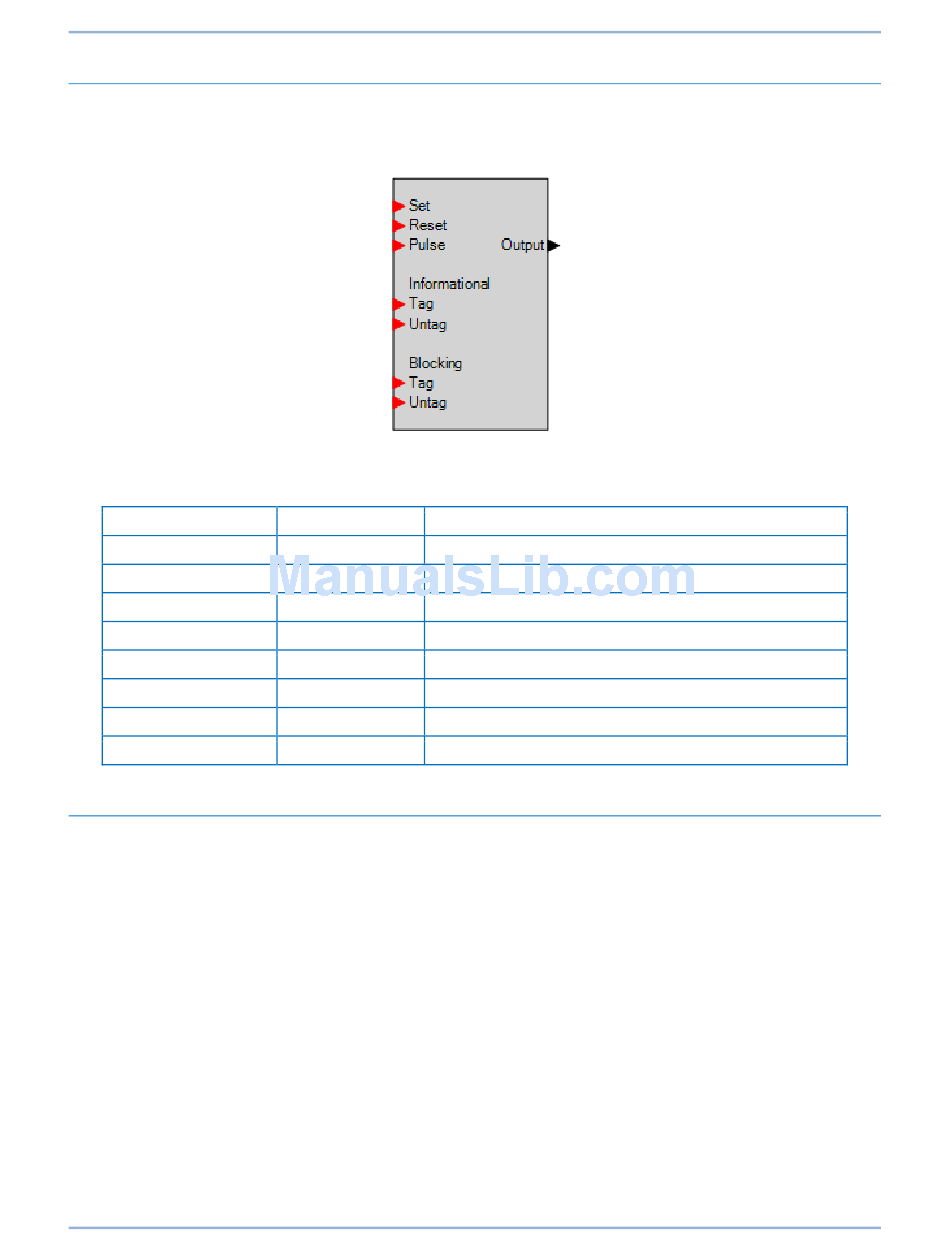

Figure 106. Virtual Control Switch Element Logic Block
Table 65. Logic Inputs and Outputs
Logic Function
Input Sets the state of the output to true
Input Sets the state of the output to false
Input Momentarily changes state of the output
Input Sets an informational tag on the 43 element
Input Removes the informational tag from the 43 element
Input Sets a blocking tag on the 43 element
Input Removes the blocking tag from the 43 element
Output True when the 43 element is set
Purpose
Virtual Control Switches (43)
