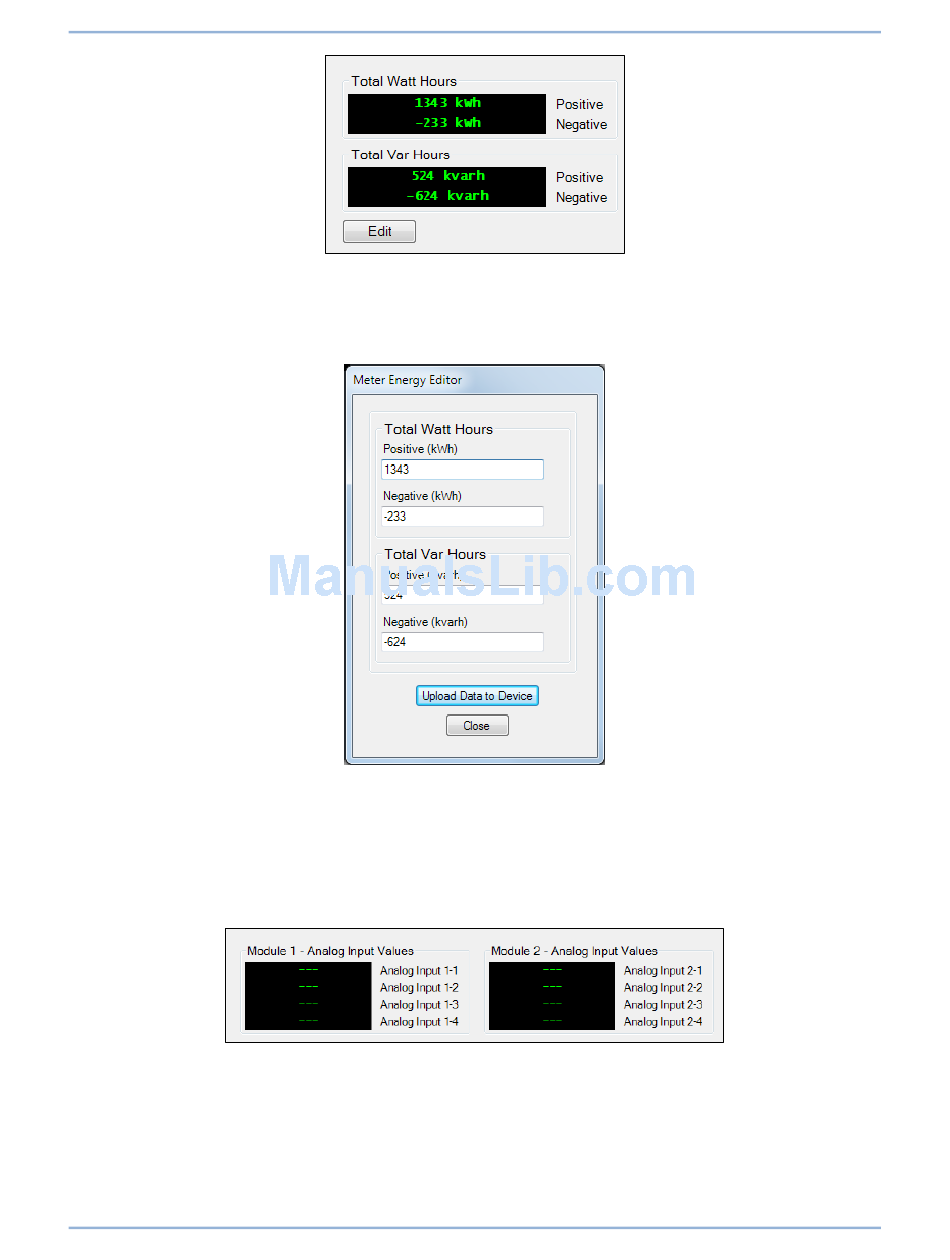

Figure 135. Analog Metering, Energy Screen
Click the Edit button to change the values. The Meter Energy Editor screen appears as shown in
Figure 136. Make the desired changes and then click Upload Data to Device. A username and password
are required to upload data. Click Close when finished.
Figure 136. Meter Energy Editor Screen
Analog Inputs and Outputs
The following screens are used when an optional RTD module is connected to the BE1-11g. For more
information, refer to the RTD Module chapter.
The Analog Inputs screen is shown in Figure 137 and the Analog Outputs screen is shown in Figure 138.
Figure 137. Analog Metering, Analog Inputs Screen
