Lockout Functions (86)

Two lockout function (86) elements can be used to prevent operation of circuit breakers or other devices
until the condition causing lockout is eliminated.
The two, identical lockout function elements are designated 86-1 and 86-2. Element logic connections are
made on the BESTlogic™Plus screen in BESTCOMSPlus® and element operational settings are
configured on the Lockout Functions screen in BESTCOMSPlus. A summary of the logic inputs and
outputs and operational settings appears at the end of this chapter.
BESTCOMSPlus Navigation Path: Settings Explorer, Control, Lockout Functions (86)
HMI Navigation Path: Settings Explorer, Control, Lockout 86

Element Operation

When the Set input is asserted, the output of the function becomes true (breaker opens). When the Reset
input is asserted, the output becomes false (breaker closes). If both inputs are asserted at the same time,
the Set input will have priority and drive the output to true. The state of the function is stored in nonvolatile
memory.

Logic Connections

Lockout function element logic connections are made on the BESTlogicPlus screen in BESTCOMSPlus.
The lockout function element logic block is illustrated in Figure 116. Logic inputs and outputs are
summarized in Table 69.
Name
Set
Reset
Output

Operational Settings

Lockout function element operational settings are configured on the Lockout Functions (86) settings
screen (Figure 117) in BESTCOMSPlus. Setting ranges and defaults are summarized in Table 70.
BE1-11g

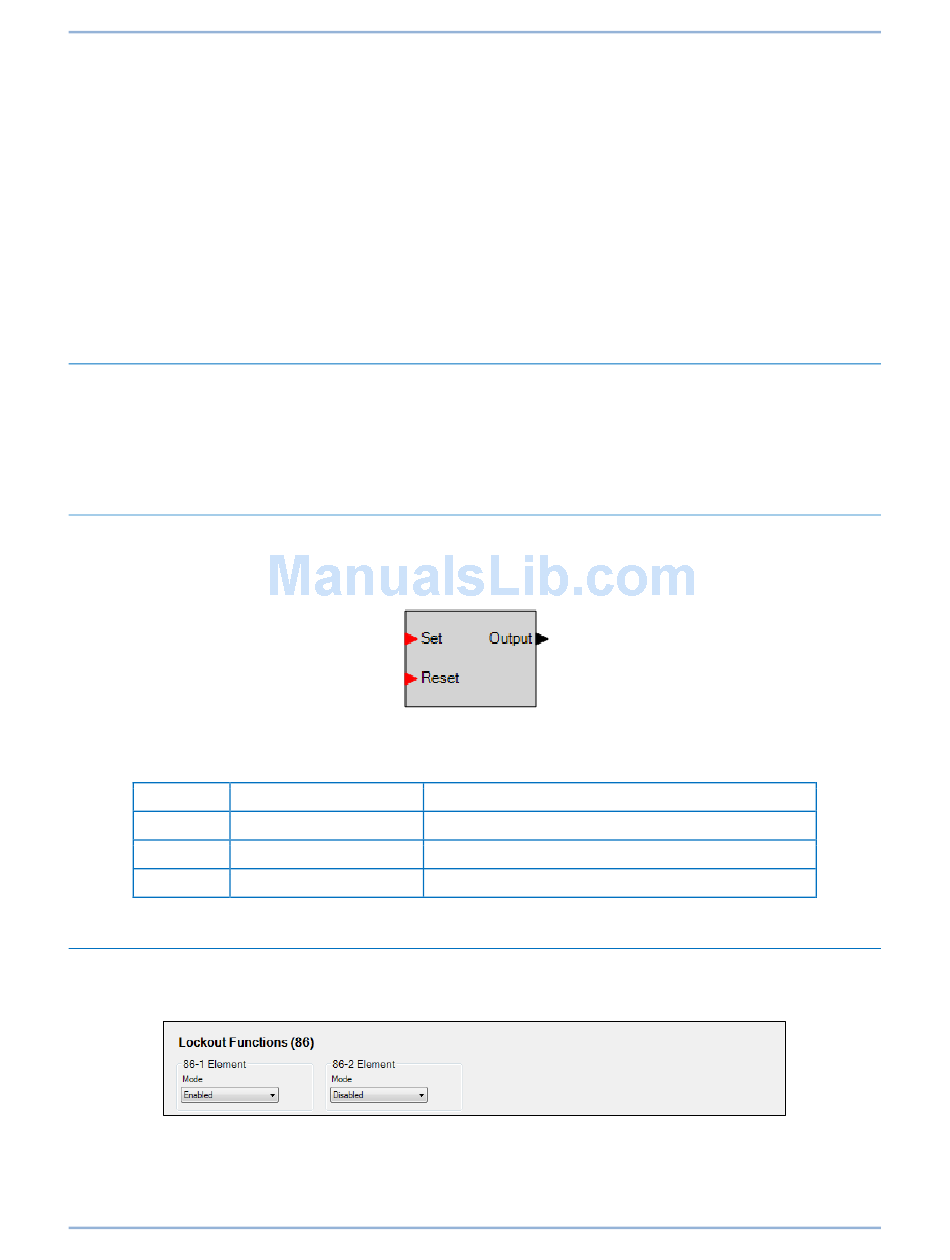

Figure 116. Lockout Function Element Logic Block
Table 69. Logic Inputs and Outputs
Logic Function
Input Sets the state of the output to true
Input Sets the state of the output to false
Output True when the Set input is asserted
Figure 117. Lockout Functions Settings Screen
Purpose
Lockout Functions (86)
