Twelve user programmable targets are available. BESTlogicPlus Programmable Logic is used to set up
target logic. User target labels are programmed on the User Programmable Targets screen (Figure 144)
under Target Configuration. When active, the label of a user target is displayed on the front-panel display,
in the fault report, and in the sequence of events report.
Grouped Targets
A grouped target is annunciated when any target in the group is active. The group targets in Table 80 can
be enabled or disabled on the Target Settings screen in BESTCOMSPlus.
Fault Reporting

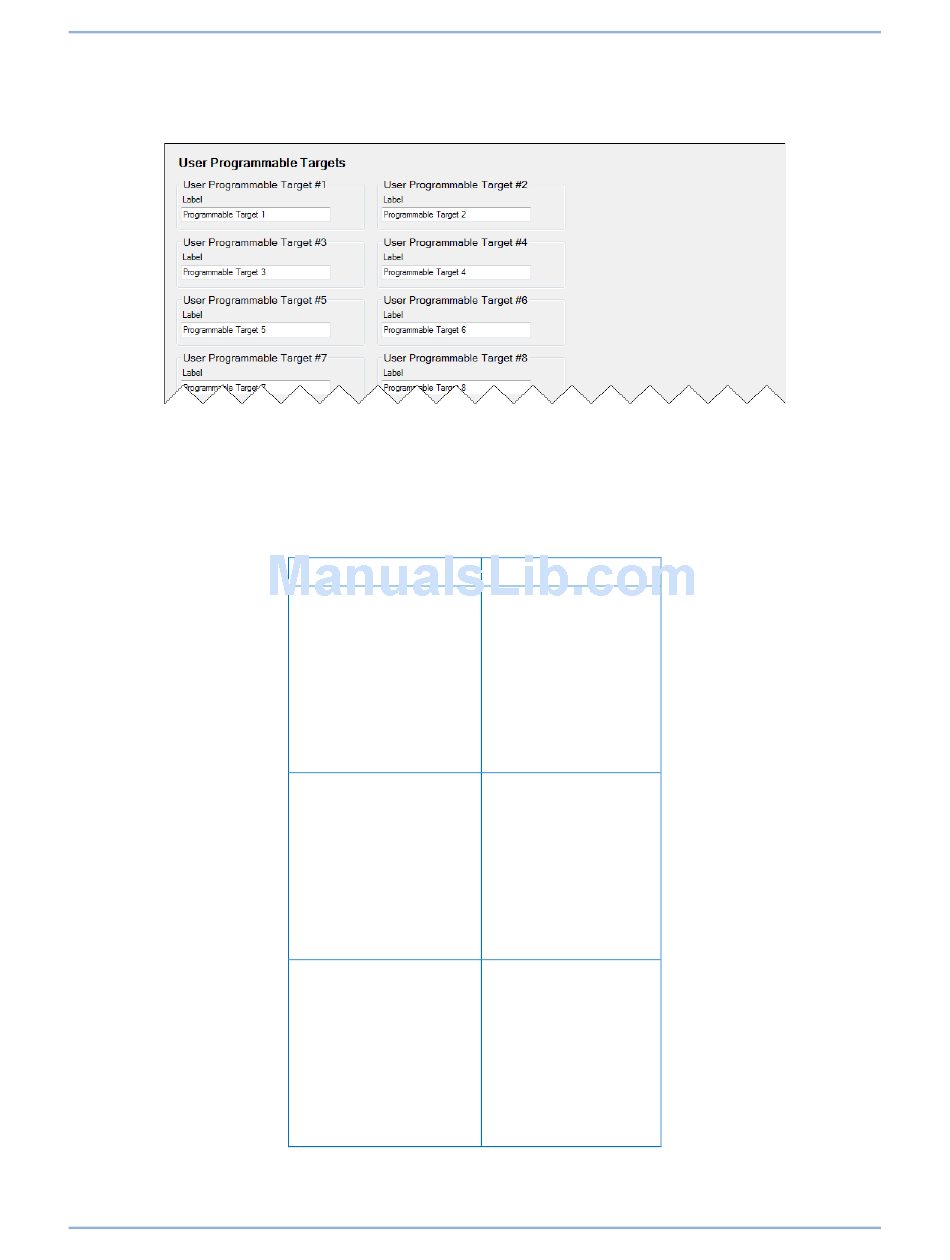

Figure 144. User Programmable Targets Screen
Table 80. Grouped Targets
Target
Phase A
Phase B
Phase C
Targets in Group
27P A
59P A
50 A
50 67 A
51 A
51 67 A
32 A
87 A
21 AB/CA
27P B
59P B
50 B
50 67 B
51 B
51 67 B
32 B
87 B
21 AB/BC
27P C
59P C
50 C
50 67 C
51 C
51 67 C
32 C
87 C
21 BC/CA
