Operational Settings - Basler BE1-11g Instruction Manual

9424200994 Rev U
Name
Trip
Close
Informational Tag
Informational Untag
Blocking Tag
Blocking Untag
Trip
TSC
Close
CSC

Operational Settings

Breaker control element operational settings are configured on the Breaker Control Switch (101) settings
screen (Figure 122) in BESTCOMSPlus. Setting ranges and defaults are summarized in Table 72.
Setting
Mode Disabled or Enabled
BE1-11g

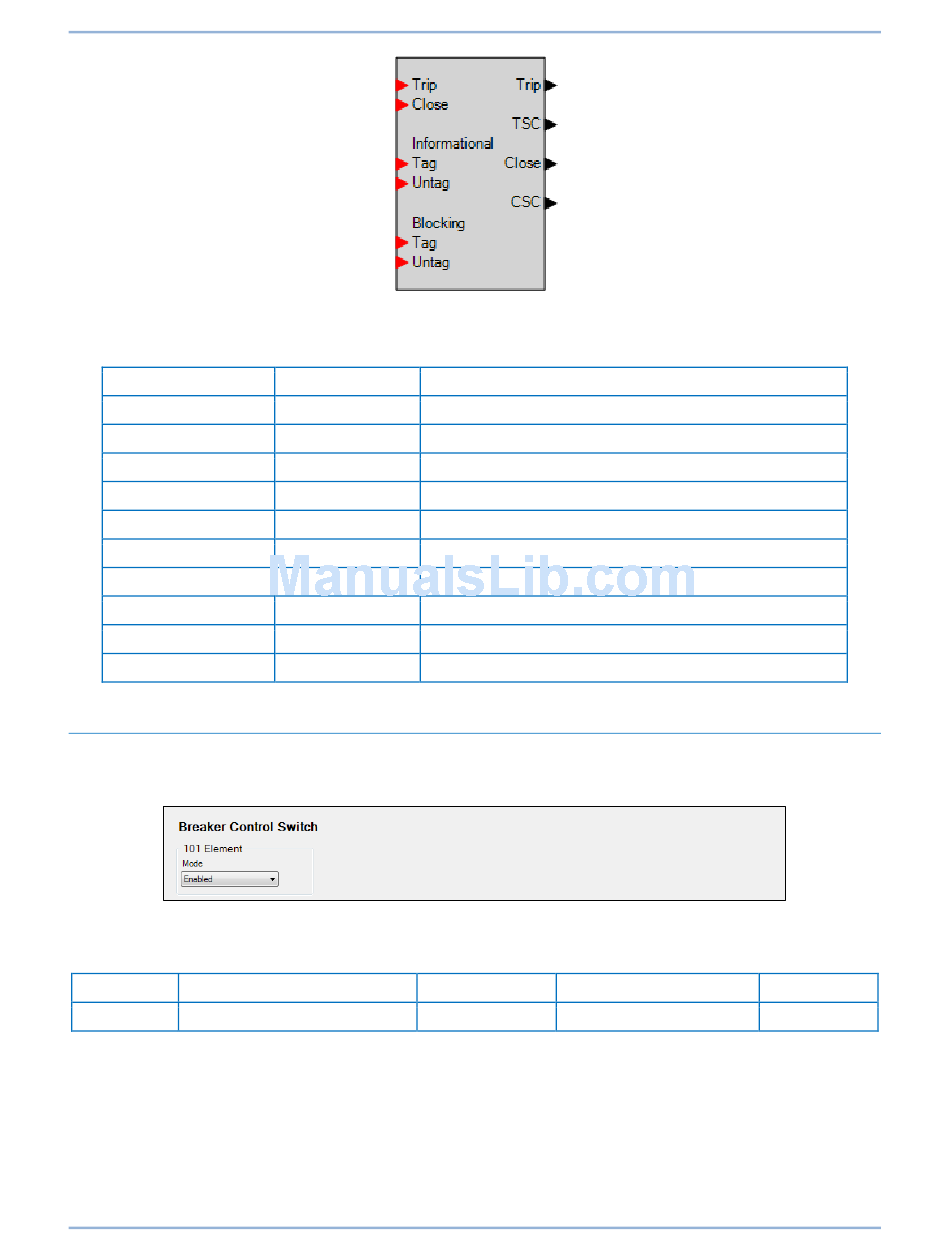

Figure 121. Breaker Control Element Logic Block
Table 71. Logic Inputs and Outputs
Logic Function
Input Sets the state of the 101 element to Trip
Input Sets the state of the 101 element to Close
Input Sets an informational tag on the 101 element
Input Removes the informational tag from the 101 element
Input Sets a blocking tag on the 101 element
Input Removes the blocking tag from the 101 element
Output True if the 101 element is in the Trip state
Output True after the Trip output momentarily closes
Output True if the 101 element is in the Close state
Output True after the Close output momentarily closes
Figure 122. Breaker Control Switch Settings Screen
Table 72. Operational Settings
Range Increment
Purpose
Unit of Measure
n/a n/a
Default
Disabled
Breaker Control Switch (101)
185
