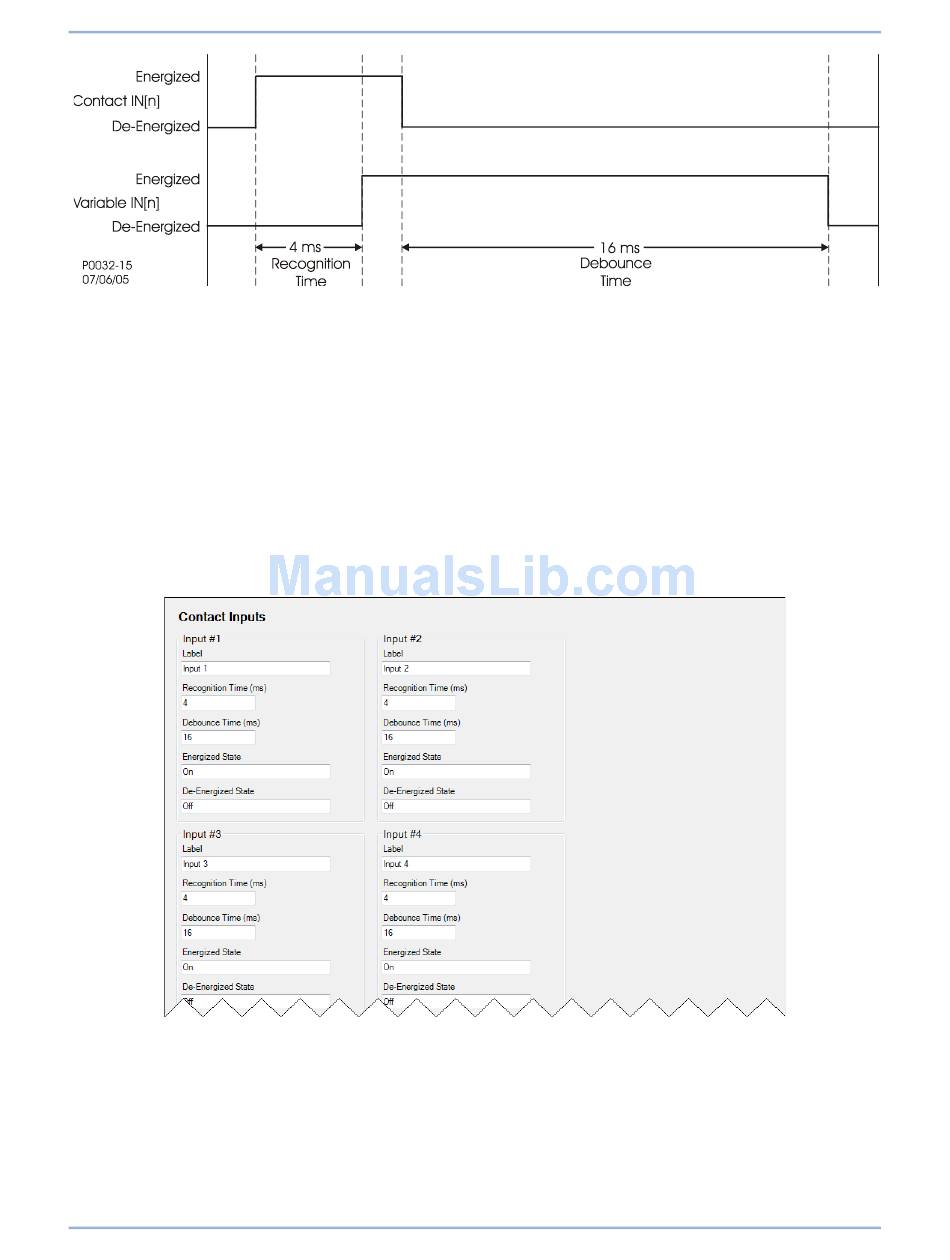

Figure 29. Digital Input Conditioning Timing Diagram
Setting the Contact Inputs
BESTCOMSPlus Navigation Path: Settings Explorer, Programmable Inputs, Contact Inputs
HMI Navigation Path: Settings Explorer, Contact Inputs
Settings and labels for the contact inputs are set using BESTCOMSPlus®.
Each of the inputs has two settings and three labels. The settings are Recognition Time and Debounce
Time. The labels include a label to describe the input, a label to describe the Energized State, and a label
to describe the De-Energized State. Labels are used by the BE1-11g's reporting functions.
To edit the settings or labels, use the Settings Explorer to open the Programmable Inputs, Contact Inputs
tree branch as shown in Figure 30.
Figure 30. Contact Inputs Screen
