Voltage

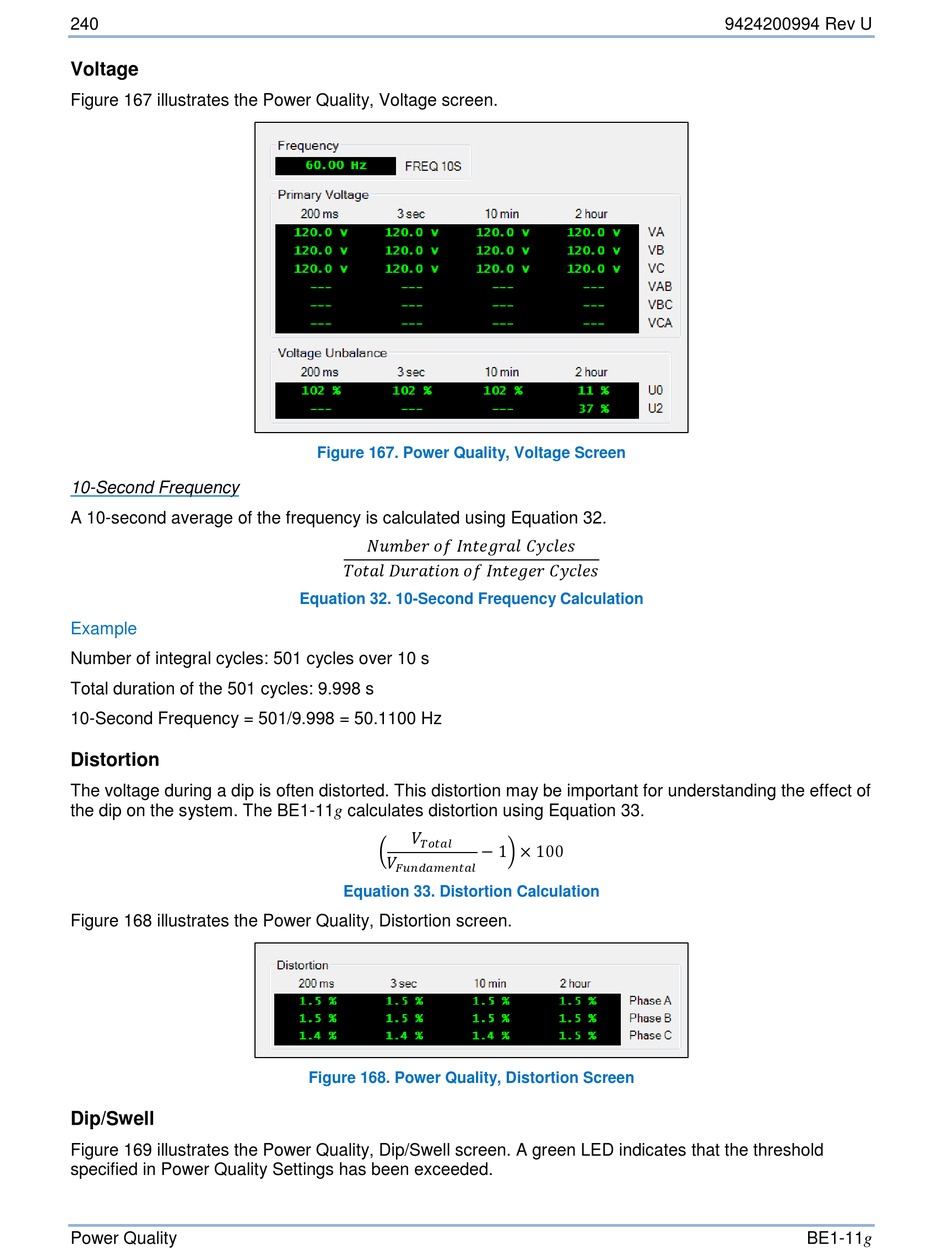

Figure 167 illustrates the Power Quality, Voltage screen.
Figure 167. Power Quality, Voltage Screen
10-Second Frequency
������������������������ �������� ���� ���� ������������������������ ���������������� ���� ����
A 10-second average of the frequency is calculated using Equation 32.
�������������������� ������������������������ ���� ���� �������� ���� ���� �������������������� ���������������� ���� ����
Equation 32. 10-Second Frequency Calculation
Example
Number of integral cycles: 501 cycles over 10 s
Total duration of the 501 cycles: 9.998 s
10-Second Frequency = 501/9.998 = 50.1100 Hz
Distortion
The voltage during a dip is often distorted. This distortion may be important for understanding the effect of
����
the dip on the system. The BE1-11g calculates distortion using Equation 33.
� − 1� × 100
��������������������
����
��������������������������������������������
Equation 33. Distortion Calculation
Figure 168 illustrates the Power Quality, Distortion screen.
Figure 168. Power Quality, Distortion Screen
Dip/Swell
Figure 169 illustrates the Power Quality, Dip/Swell screen. A green LED indicates that the threshold
specified in Power Quality Settings has been exceeded.
