334
Ethernet Setup
Located on the rear panel, the optional Ethernet communication port provides dynamic addressing
(DHCP), Web pages (HTTP), email alerts (SMTP), as well as communication with a PC running
BESTCOMSPlus, Modbus
The Enable Web Pages box must be checked to enable viewing of BE1-11g web pages. Refer to the
BESTnet™Plus chapter for more information on viewing web pages.
Ethernet Port Configuration
Initially you must use a USB connection on the front panel to configure communications.
1.
Connect an Ethernet cable between the BE1-11g and your network.
2.
Connect a USB cable between the BE1-11g and your PC.
3.
Apply operating power to the BE1-11g and wait until the boot sequence is complete.
4.
Use BESTCOMSPlus to connect to the BE1-11g through the USB port.
Communication

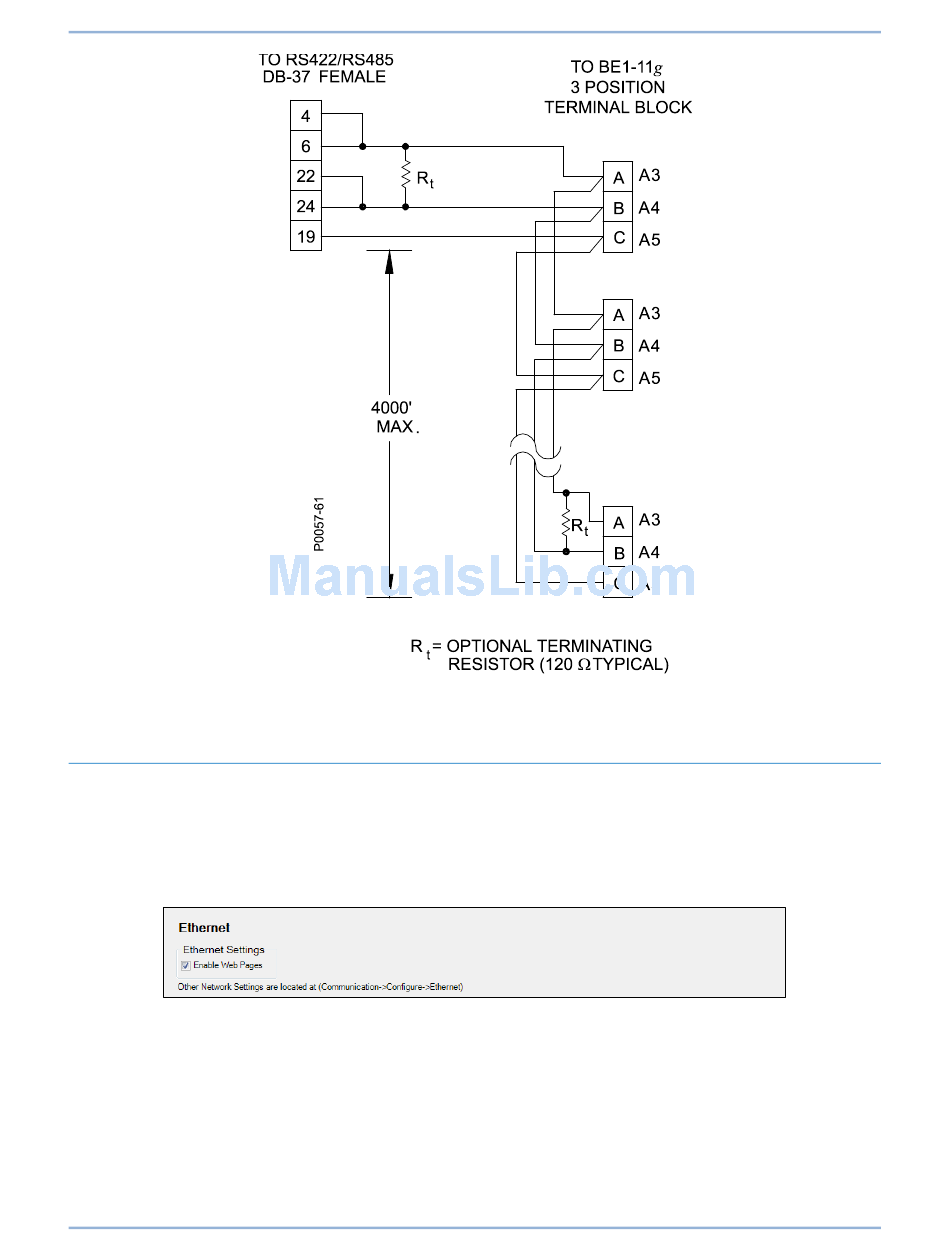

Figure 250. RS-485 DB-37 to BE1-11g
®
, or DNP software. Additional Ethernet settings are illustrated in Figure 251.
Figure 251. Ethernet Screen
9424200994 Rev U
BE1-11g
