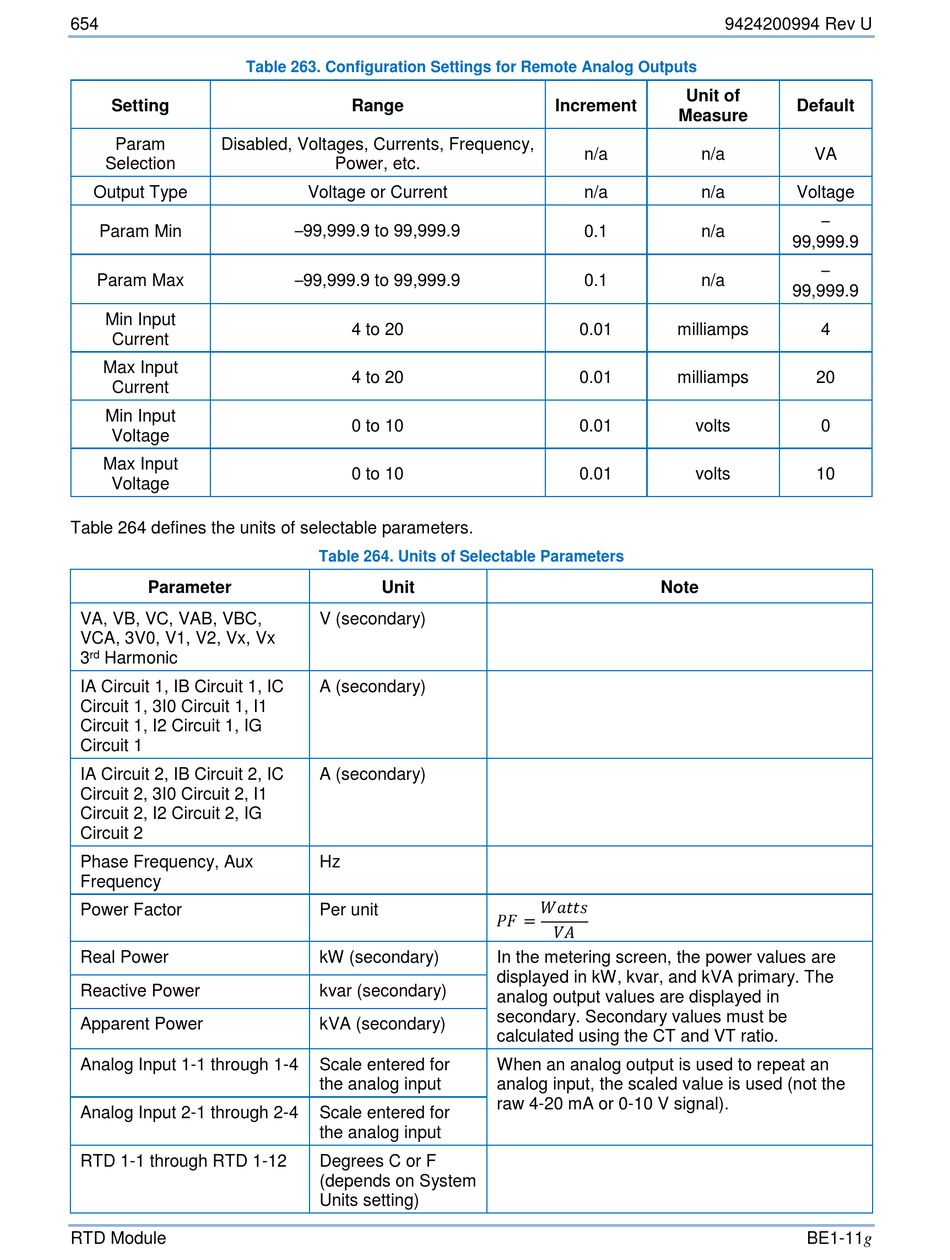

Table 263. Configuration Settings for Remote Analog Outputs
Setting
Param Disabled, Voltages, Currents, Frequency,
Selection
Output Type
Param Min
Param Max
Min Input
Current
Max Input
Current
Min Input
Voltage
Max Input
Voltage
Table 264 defines the units of selectable parameters.
Parameter
VA, VB, VC, VAB, VBC,
VCA, 3V0, V1, V2, Vx, Vx
rd
3 Harmonic
IA Circuit 1, IB Circuit 1, IC
Circuit 1, 3I0 Circuit 1, I1
Circuit 1, I2 Circuit 1, IG
Circuit 1
IA Circuit 2, IB Circuit 2, IC
Circuit 2, 3I0 Circuit 2, I1
Circuit 2, I2 Circuit 2, IG
Circuit 2
Phase Frequency, Aux
Frequency
Power Factor
Real Power
Reactive Power
Apparent Power
Analog Input 1-1 through 1-4
Analog Input 2-1 through 2-4
RTD 1-1 through RTD 1-12
RTD Module
Range
Power, etc.
Voltage or Current
–99,999.9 to 99,999.9
–99,999.9 to 99,999.9
4 to 20
4 to 20
0 to 10
0 to 10
Table 264. Units of Selectable Parameters
Unit
V (secondary)
A (secondary)
A (secondary)
Hz
Per unit
kW (secondary)
kvar (secondary)
kVA (secondary)
Scale entered for
the analog input
Scale entered for
the analog input
Degrees C or F
(depends on System
Units setting)
Increment
n/a
n/a
0.1
0.1
0.01
0.01
0.01
0.01
Note
��������������������
�������� =
��������
In the metering screen, the power values are
displayed in kW, kvar, and kVA primary. The
analog output values are displayed in
secondary. Secondary values must be
calculated using the CT and VT ratio.
When an analog output is used to repeat an
analog input, the scaled value is used (not the
raw 4-20 mA or 0-10 V signal).
