EMAIL-x Email Trigger 1 through 8.
Refer to the Communication chapter.
FAULTTRIG Fault Trigger.
Refer to the Fault Reporting chapter.
INDICATORx Indicators 1 through 7.
Refer to the Controls and Indicators chapter.
The indicator is displayed in the sequence of events and
the corresponding indicator on the front panel is lit when
the Trigger input is true.
To name indicators, use the Settings Explorer in
BESTCOMSPlus to expand the BESTlogicPlus
Programmable Logic tree branch and select Front Panel
Indicator Labels.
LOGICALMRST Logic Alarm Reset. The Reset input is positive-edge
triggered.
Refer to the Alarms chapter.
LOGICLABELx Logic Label 1 through 12.
The logic label is displayed in the sequence of events
when the Trigger input is true.
To name logic labels, use the Settings Explorer in
BESTCOMSPlus to expand the BESTlogicPlus
Programmable Logic tree branch and select Logic Labels.
MAJORALMRST Major Alarm Reset. The Reset input is positive-edge
triggered.
Refer to the Alarms chapter.
MINORALMRST Minor Alarm Reset. The Reset input is positive-edge
triggered.
Refer to the Alarms chapter.
TARGETRESET Target Reset. The Reset input is positive-edge triggered.
Refer to the Fault Reporting chapter.
USERALARMx User Programmable Alarms 1 through 16.
Refer to the Alarms chapter.
USERTARGx User Programmable Targets 1 through 12.
Refer to the Targets chapter.
BE1-11g
Description
323

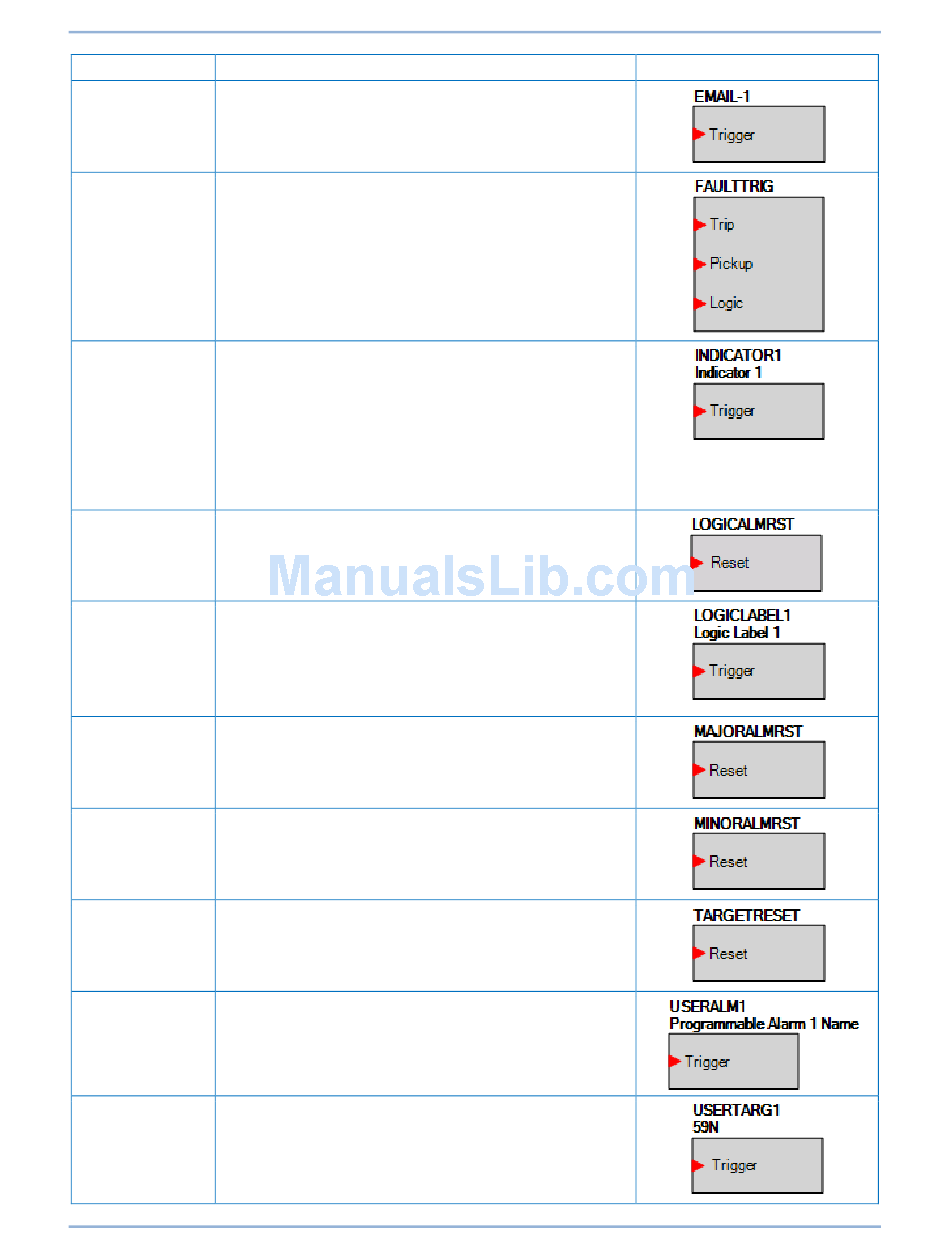

Symbol
