Basler BE1-11g Instruction Manual page 256

244
Table 93. Current Draw for each Power Supply Voltage Rating (J Type Case)
Power Supply Voltage Rating
24 Vdc
48/125 Vdc
125/250 Vdc
Trip Circuit Monitor (52TCM)

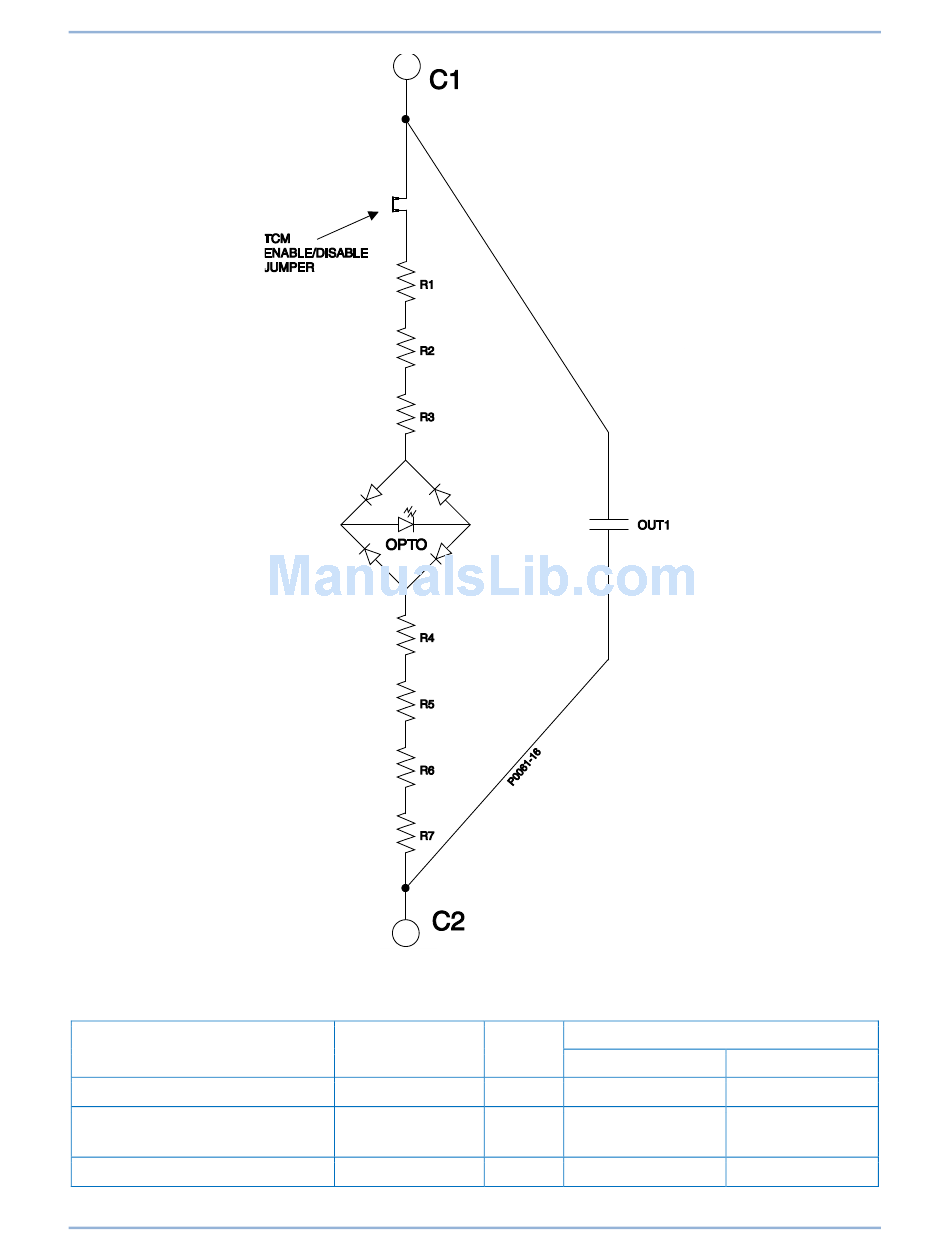

Figure 171. Trip Detector Circuit (J Type Case)
Resistor
R1 - R7 = 2.2 kΩ
R1 = 6.8 kΩ
R2 - R7 = 4.7 kΩ
R1 - R7 = 13 kΩ
Optical Isolator
R Total
Off (25% V)
15.4 kΩ
6.0 V (0.390 mA)
35 kΩ
12.0 V (0.343 mA)
91 kΩ 31.2 V (0.344 mA)
9424200994 Rev U
On (80% V)
19.2 V (1.25 mA)
38.4 V (1.10 mA)
100 V (1.10 mA)
BE1-11g
