Alarm Settings; User Programmable Alarms - Basler BE1-11g Instruction Manual

9424200994 Rev U
Name
S Demand
Setting Change
Settings Group 0
Settings Group 1
Settings Group 2
Settings Group 3
SGC Active
SGC Logic Override
Trip Coil Monitor
uP Reset Alarm
Var Negative Demand
Var Positive Demand
Watt Forward Demand
Watt Reverse Demand

Alarm Settings

BESTCOMSPlus Navigation Path: Settings Explorer, Alarm Configuration, Alarms
HMI Navigation Path: Not available through the front panel
Alarms are enabled using BESTCOMSPlus. Use the Settings Explorer to open the Alarm Configuration,
Alarms tree branch. Configure alarms by selecting Disabled, Latching, or Non-Latching from the Minor,
Major, and Logic drop-down menus next to the alarms. Refer to Figure 151.

User Programmable Alarms

BESTCOMSPlus Navigation Path: Settings Explorer, Alarm Configuration, User Programmable Alarms
HMI Navigation Path: Not available through the front panel
Sixteen user programmable alarms are available. BESTlogicPlus Programmable Logic is used to set up
alarm logic. User alarm labels are programmed on the User Programmable Alarms screen (Figure 152)
BE1-11g
Apparent power (VA) demand maximum exceeded
Setting change made by user
Setting group 0 is active
Setting group 1 is active
Setting group 2 is active
Setting group 3 is active
Active setting group changed
Setting group control was overridden by logic
Monitored trip circuit open
Microprocessor watchdog circuit timed out
Negative var demand maximum exceeded
Positive var demand maximum exceeded
Forward watt demand maximum exceeded
Reverse watt demand maximum exceeded

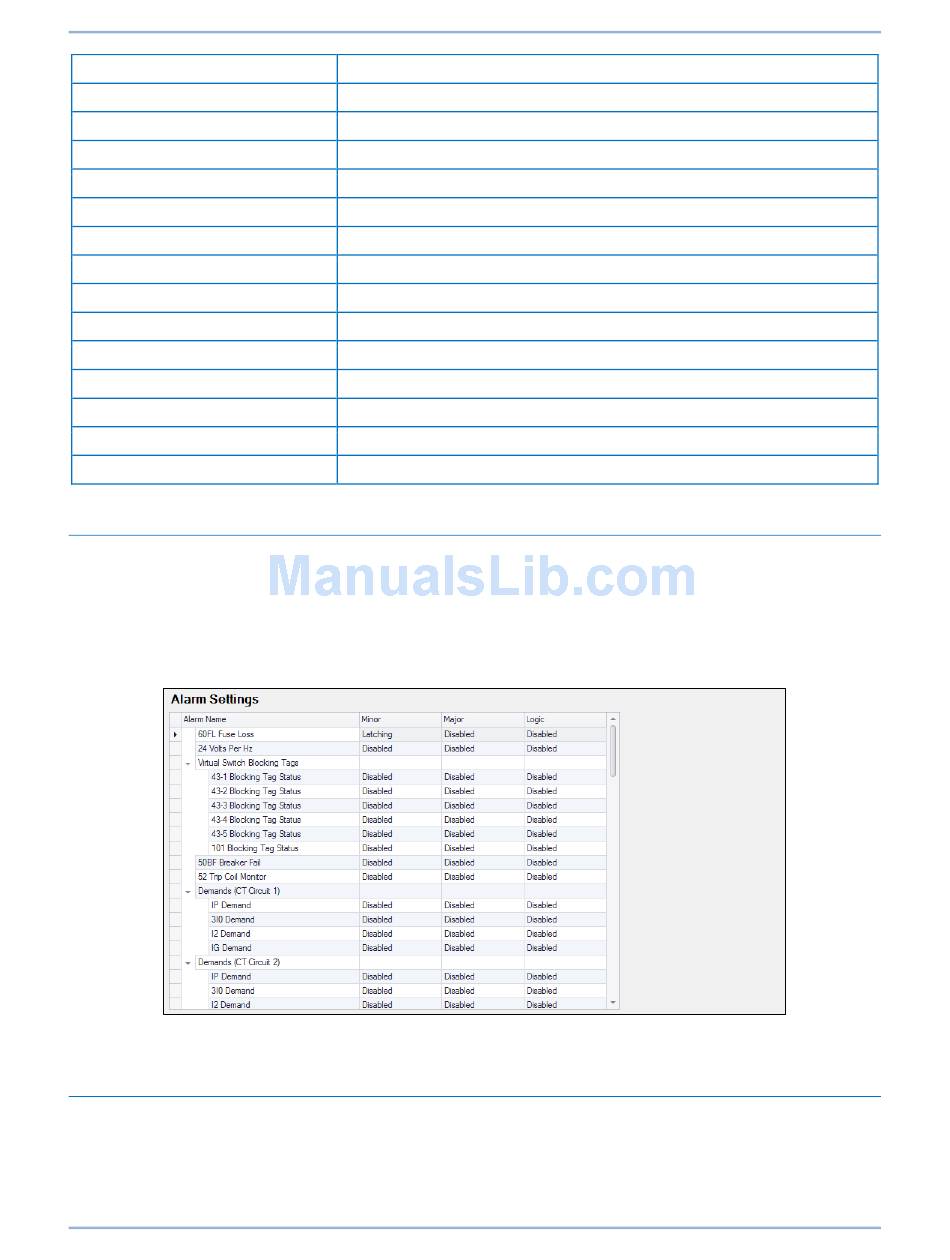

Figure 151. Alarm Settings Screen
Description
221
Alarms
