Target
59X-#-V1
59X-#-V2
59X-#-AUX
59X-#-3RD
60FL
62-#
78OOS
78V
81-#-Over
81-#-Under
81-#-ROC
86-#
87-A/B/C
87-Unrestrained A/B/C
87N-1
Analog In #
Target logging for a protective function can be disabled if the function is used in a supervisory or
monitoring capacity. The following paragraphs describe how the BE1-11g is programmed to define which
protective functions log targets.
Target Settings
Targets are enabled using BESTCOMSPlus. Use the Settings Explorer to open the Target Configuration
tree branch. You can select which protective elements trigger a target by selecting Enabled or Disabled
from the Mode drop-down menu next to the targets. See Figure 143.
User Programmable Targets
BESTCOMSPlus Navigation Path: Settings Explorer, Target Configuration, User Programmable Targets
HMI Navigation Path: Not available through the front panel
BE1-11g
Auxiliary Overvoltage, Positive-Sequence
Auxiliary Overvoltage, Negative-Sequence
Auxiliary Overvoltage, Fundamental VX
Auxiliary Overvoltage, 3
Fuse Loss Detection
Timer Output
Out of Step
Vector Shift
Frequency, Over
Frequency, Under
Frequency, Rate of Change
Lockout Function
Differential Current, Phase A, B, or C
87 Unrestrained, Phase A, B, or C
Neutral Current Differential
Remote Analog Input

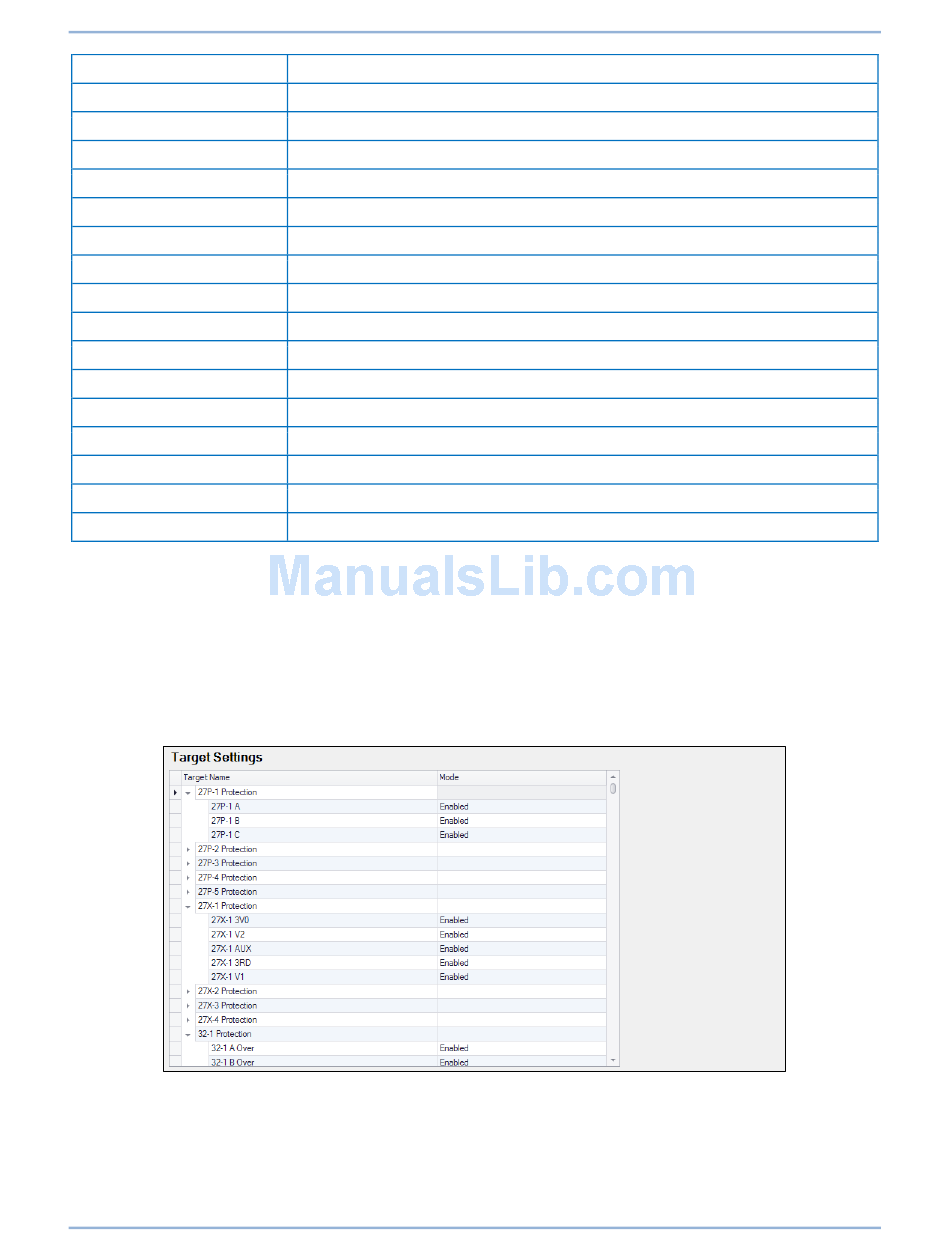

Figure 143. Target Settings Screen
Description
rd
Harmonic VX
