Settings.bstx". The BESTCOMSPlus Settings Loader Tool searches in "C:\Files" for the filename "BE1-11
Settings.bstx".
Append Bar-Code to Location: When enabled, the bar code is appended to the specified location when
uploading the settings file. For example, an entry with the bar code "0002" is located in C:\Files\0002 and
an entry with the bar code "0003" is located in C:\Files\0003.
Logon: If User Name and Password are specified, you will not be prompted for credentials when
required.
Save After Upload: After uploading a settings file, the settings are downloaded from the connected
device and saved to the specified location, when enabled.
Upload Security: When enabled, the security settings stored in the settings file are uploaded to the
device. Credentials will be requested if not already specified.

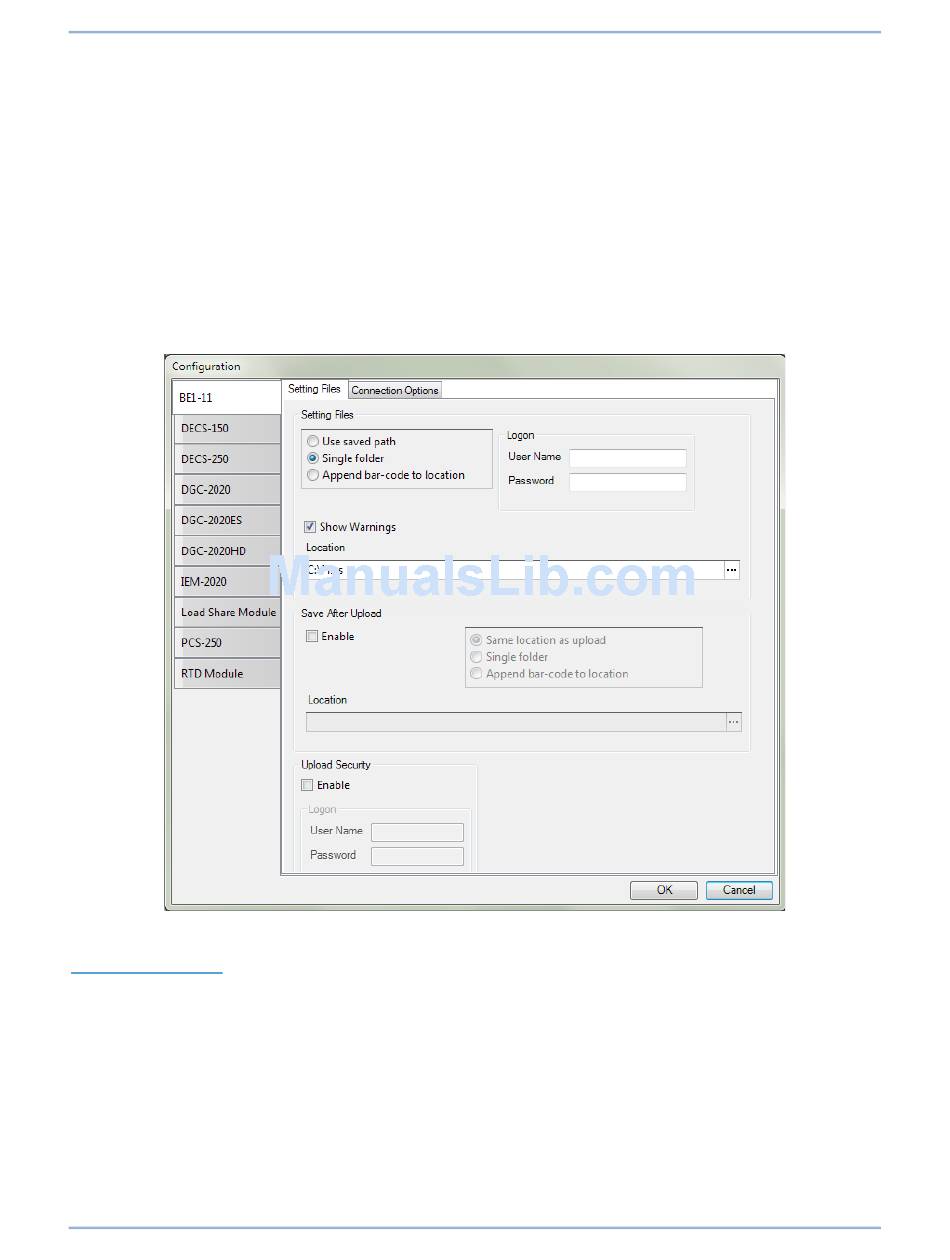

Figure 412 illustrates the Setting Files tab.
Figure 412. Configuration, Settings Files Tab
Connection Options
Connection options consist of the three selections described below. Refer to the Basler product
instruction manual for detailed connection information.
Always Prompt for Connection: When enabled, a dialog appears which provides connection options for
the appropriate type of device each time a connection attempt is made.
Ethernet Connection: When enabled, the BESTCOMSPlus Settings Loader Tool automatically attempts
to connect to the specified IP address before uploading settings.
®
USB Connection: When enabled, the BESTCOMSPlus Settings Loader Tool automatically attempts to
connect to the device via USB port before uploading settings.
Figure 413 illustrates the Connection Options tab.
