Retrieving Target Information and Resetting Targets
To view targets at the front-panel display, navigate to Metering > Status > Targets. The BE1-11g provides
target information from the most recent trip event. Target information is specific to an event; it is not
cumulative. Targets for previous events are recorded in the fault summary reports, which are described in
Fault Reports.
When a protective trip occurs and targets are logged, the front-panel Trip LED seals-in. The target can be
viewed on the front-panel display by navigating to Metering > Status > Targets.
To view target status using BESTCOMSPlus, use the Metering Explorer to open the Status, Targets
screen shown in Figure 145.
Targets can also be viewed through the web page interface. Refer to the BESTnet™Plus chapter.
BE1-11g
Target
Phase G
Phase N
Phase G/N
Positive Sequence
Negative Sequence

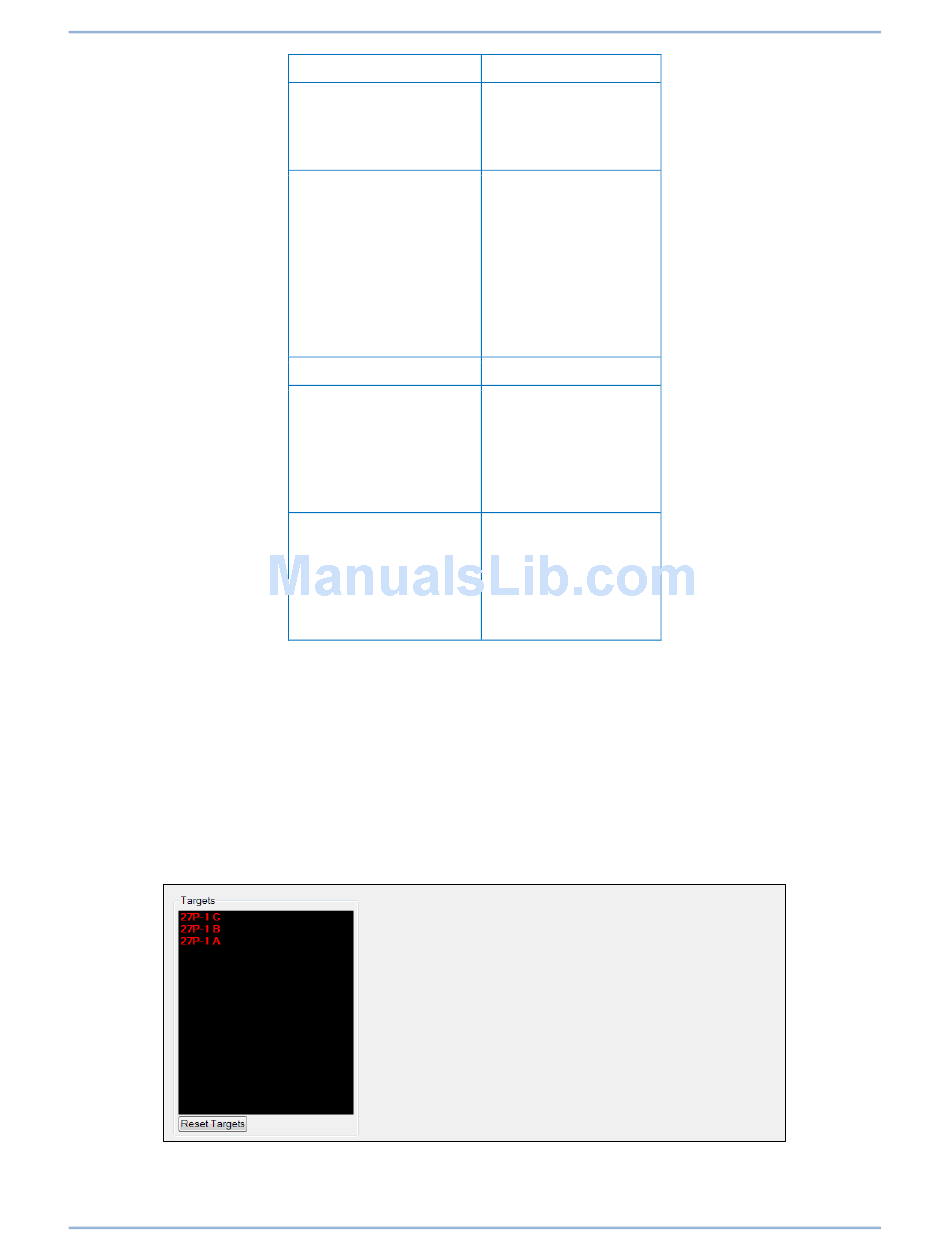

Figure 145. Targets Screen
Targets in Group
50 G
50 67 G
51 G
51 67 G
27X 3V0
27X Aux
59X 3V0
59X Aux
50 3I0
50 67 3I0
51 3I0
51 67 3I0
87N
All G and N
27X V1
59X V1
50 I1
50 67 I1
51 I1
51 67 I1
27X V2
59X V2
50 I2
50 67 I2
51 I2
51 67 I2
