Anticipatory Functional Test Procedure - Basler BE1-11g Instruction Manual

9424200994 Rev U

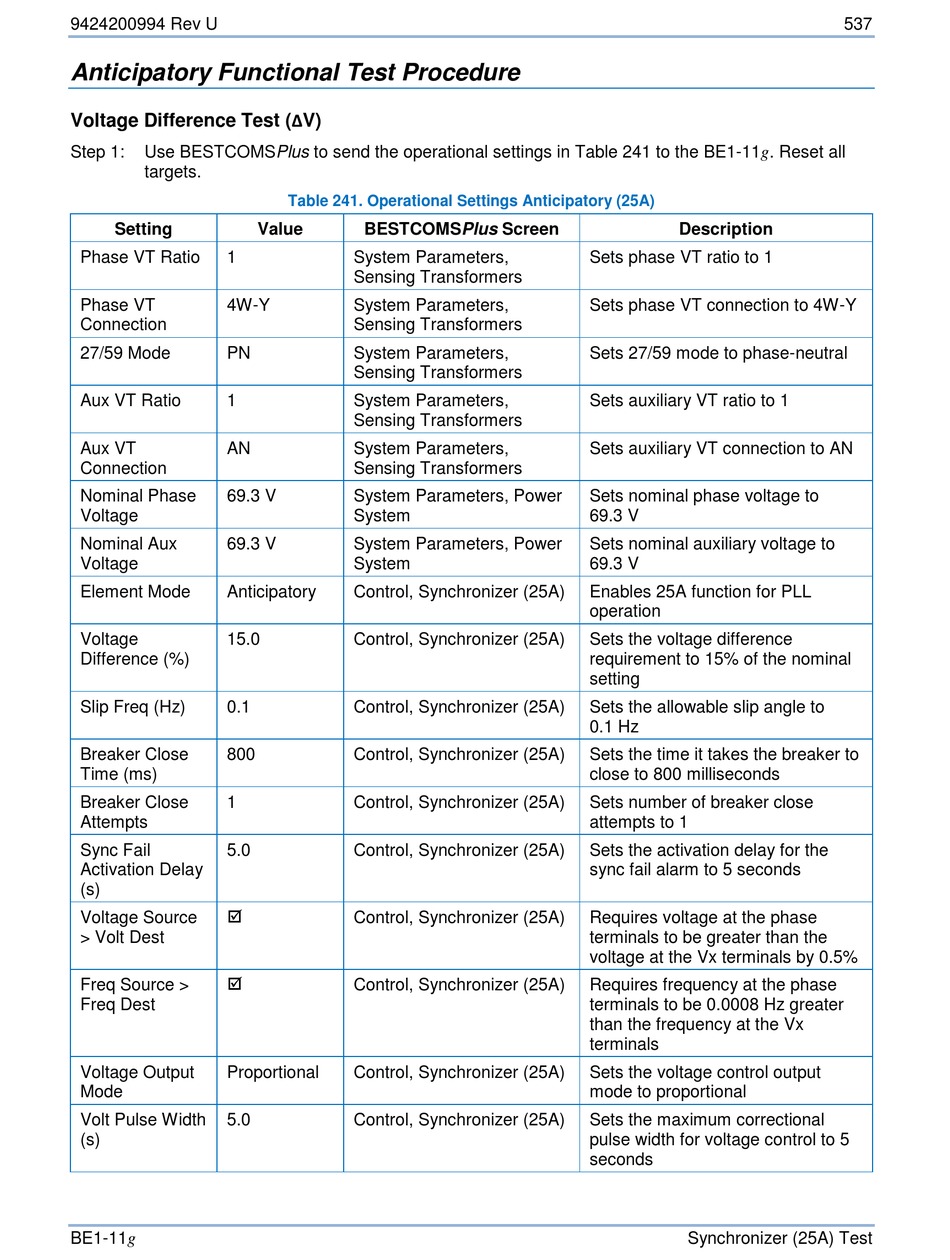

Anticipatory Functional Test Procedure

Voltage Difference Test (ΔV)
Step 1: Use BESTCOMSPlus to send the operational settings in Table 241 to the BE1-11g. Reset all
targets.
Setting
Phase VT Ratio 1
Phase VT 4W-Y
Connection
27/59 Mode PN
Aux VT Ratio 1
Aux VT AN
Connection
Nominal Phase 69.3 V
Voltage
Nominal Aux 69.3 V
Voltage
Element Mode Anticipatory
Voltage 15.0
Difference (%)
Slip Freq (Hz) 0.1
Breaker Close 800
Time (ms)
Breaker Close 1
Attempts
Sync Fail 5.0
Activation Delay
(s)

Voltage Source
> Volt Dest

Freq Source >
Freq Dest
Voltage Output Proportional
Mode
Volt Pulse Width 5.0
(s)
BE1-11g
Table 241. Operational Settings Anticipatory (25A)
Value BESTCOMSPlus Screen
System Parameters,
Sensing Transformers
System Parameters,
Sensing Transformers
System Parameters,
Sensing Transformers
System Parameters,
Sensing Transformers
System Parameters,
Sensing Transformers
System Parameters, Power
System
System Parameters, Power
System
Control, Synchronizer (25A)
Control, Synchronizer (25A)
Control, Synchronizer (25A)
Control, Synchronizer (25A)
Control, Synchronizer (25A)
Control, Synchronizer (25A)
Control, Synchronizer (25A)
Control, Synchronizer (25A)
Control, Synchronizer (25A)
Control, Synchronizer (25A)
Description
Sets phase VT ratio to 1
Sets phase VT connection to 4W-Y
Sets 27/59 mode to phase-neutral
Sets auxiliary VT ratio to 1
Sets auxiliary VT connection to AN
Sets nominal phase voltage to
69.3 V
Sets nominal auxiliary voltage to
69.3 V
Enables 25A function for PLL
operation
Sets the voltage difference
requirement to 15% of the nominal
setting
Sets the allowable slip angle to
0.1 Hz
Sets the time it takes the breaker to
close to 800 milliseconds
Sets number of breaker close
attempts to 1
Sets the activation delay for the
sync fail alarm to 5 seconds
Requires voltage at the phase
terminals to be greater than the
voltage at the Vx terminals by 0.5%
Requires frequency at the phase
terminals to be 0.0008 Hz greater
than the frequency at the Vx
terminals
Sets the voltage control output
mode to proportional
Sets the maximum correctional
pulse width for voltage control to 5
seconds
Synchronizer (25A) Test
537
