The BE1-GPS100 is a multifunction, programmable numerical protection, meter, and control
relay. Functions provided include three phase voltage controlled, voltage restrained, or
standard overcurrent, phase residual and independent ground overcurrent, negative sequence
overcurrent, breaker failure, over/underfrequency, phase over/undervoltage, zero sequence
over/undervoltage, and negative sequence overvoltage, forward or reverse power, loss of
excitation, volts per hertz, sync check, sensitive third harmonic ground fault monitoring, breaker
monitoring and control and metering functions, all in an integrated system.
BESTiogic provides the user with very high flexibility in configuring a protection and control
•
system.
Substantial functionality in a small package, useful where space is very limited but high
•
functionality is needed.
Programmable LCD display allows the relay to replace local indication and control func­
•
tions, such as panel metering, alarm annunciation, and control switches.
Three independent communication ports with protocol support allows integration with
•
distributed control systems.
Provides optional separate ground current input for those applications where this is
•
required.
Includes frequency tracking and voltage restrained overcurrent for backup and cogenera­
•
tion applications.
Includes Real Time Clock with 8 hour capacitor ride through and optional battery backup.
•

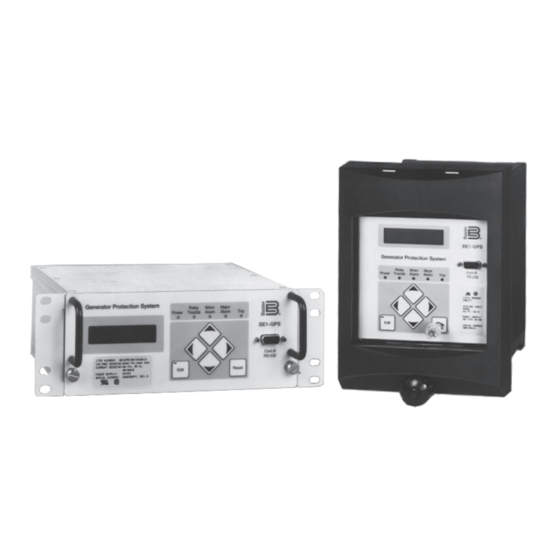

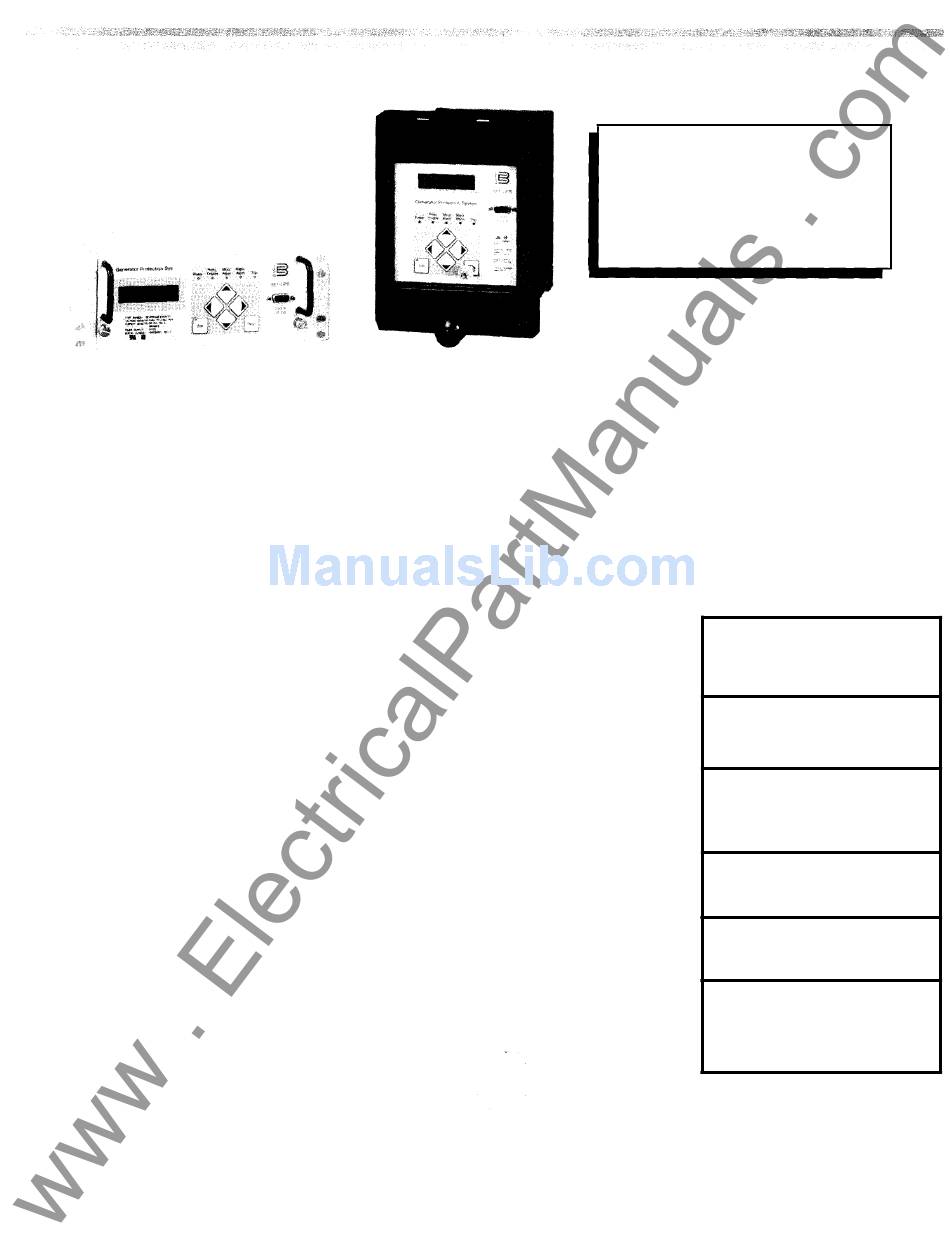

Available in fully drawout half rack case. Two Basler Electric half rack IEDs (Intelligent
•
Electronic Devices) can be dovetailed together to mount in a standard 19-inch equipment
rack with no special mounting hardware.
Available in fully drawout S1 case with test paddle. The S1 case, with available adapter
•
plates, fits cutout, drilling and behind panel projection dimensions for common Basler
Electric, GE and Westinghouse unit case relays.
WINDOWS® SOFTWARE
Interface for setting and communicating with Basler protection products.
Request BESTCOMS'" for BE1-GPS1 00.
ADDITIONAL INFORMATION
INSTRUCTION MANUAL
Request publication
TIMING CURVES
Request publication
ADVANTAGES
MOD8US
9318700990
Request publication
DNP 3.0
9252000999
Request publication
§l
Basler Electric
P. 0. BOX 269 HIGHLAND, ILLINOIS, U.S.A. 62249
lNS
r;:;; t CTION MANUAL
9318700991
INSTRUCTlON MANUAL
9318700992
PHONE 618-654·2341 FAX 618-654·2351
BE1-GPS100
GENERATOR
PROTECTION
SYSTEM
FEATURES
Pages 2 and
APPLICATIONS
Page 3
FUNCTIONAL
DESCRIPTION
Pages 4-6
BESTiogic
8
Pages and
SPECIFICATIONS
7,
Pages 10 - 11
ORDERING
INFORMATION
Page 12
UHQ-5
11-01
3
9
