178
Block input to the desired logic in BESTlogicPlus. When the element is initially selected from the
Elements view, the default condition of the Block input is a logic 0.

Logic Connections

Logic timer element logic connections are made on the BESTlogicPlus screen in BESTCOMSPlus. The
logic timer element logic block is illustrated in Figure 114. Logic inputs and outputs are summarized in
Table 67.
Name Logic Function
Initiate Input
Block Input
Output Output

Operational Settings

Logic timer element operational settings are configured on the Logic Timers (62) settings screen (Figure
115) in BESTCOMSPlus. Setting ranges and defaults are summarized in Table 68.
Logic Timers (62)

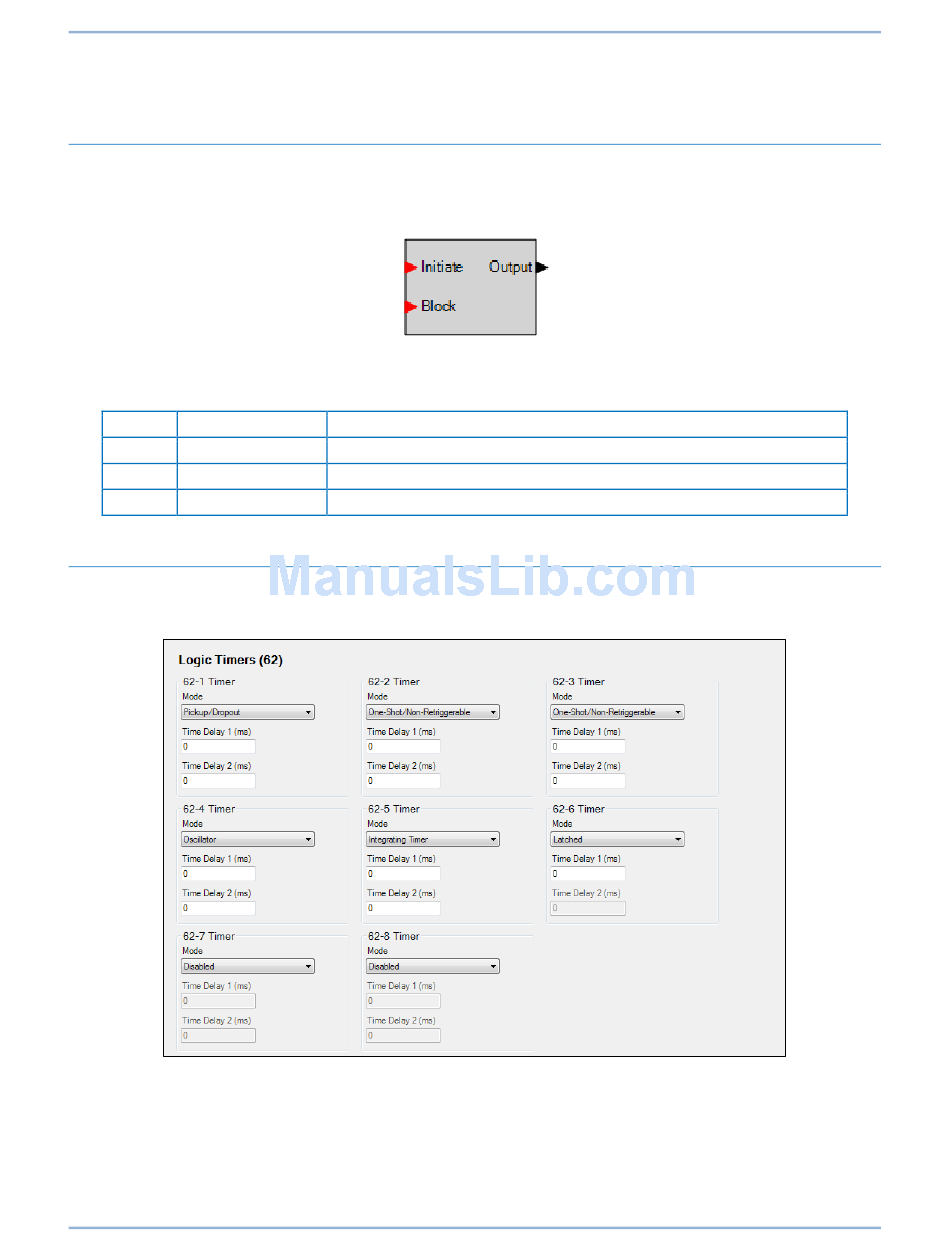

Figure 114. Logic Timer Element Logic Block
Table 67. Logic Inputs and Outputs
Starts the 62 timing sequence
Disables the 62 function when true
True when 62 timing criteria have been met according to mode
Figure 115. Logic Timers Settings Screen
9424200994 Rev U
Purpose
BE1-11g
