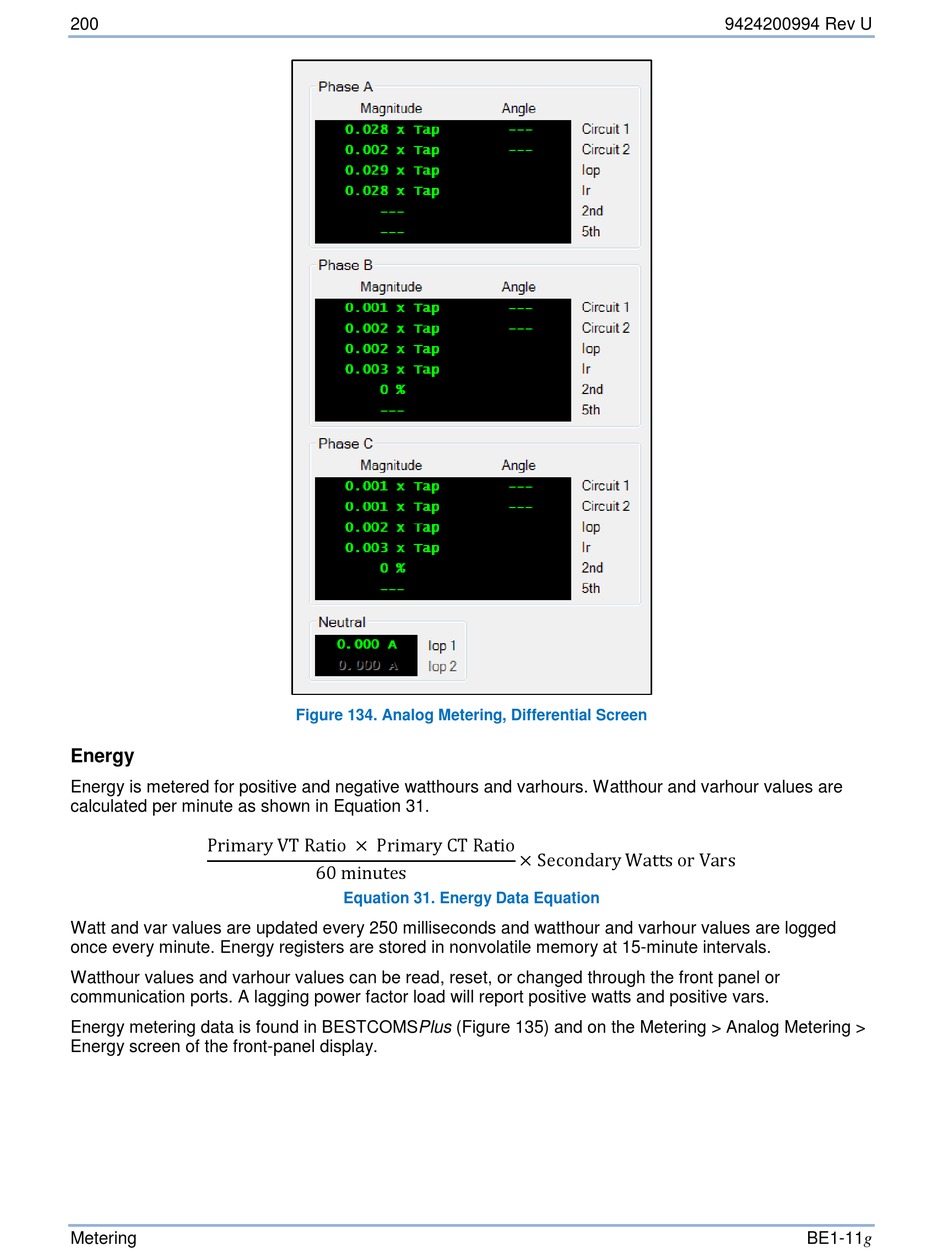

Figure 134. Analog Metering, Differential Screen
Energy
Energy is metered for positive and negative watthours and varhours. Watthour and varhour values are
Primary VT Ratio × Primary CT Ratio
calculated per minute as shown in Equation 31.
× Secondary Watts or Vars
60 minutes
Equation 31. Energy Data Equation
Watt and var values are updated every 250 milliseconds and watthour and varhour values are logged
once every minute. Energy registers are stored in nonvolatile memory at 15-minute intervals.
Watthour values and varhour values can be read, reset, or changed through the front panel or
communication ports. A lagging power factor load will report positive watts and positive vars.
Energy metering data is found in BESTCOMSPlus (Figure 135) and on the Metering > Analog Metering >
Energy screen of the front-panel display.
