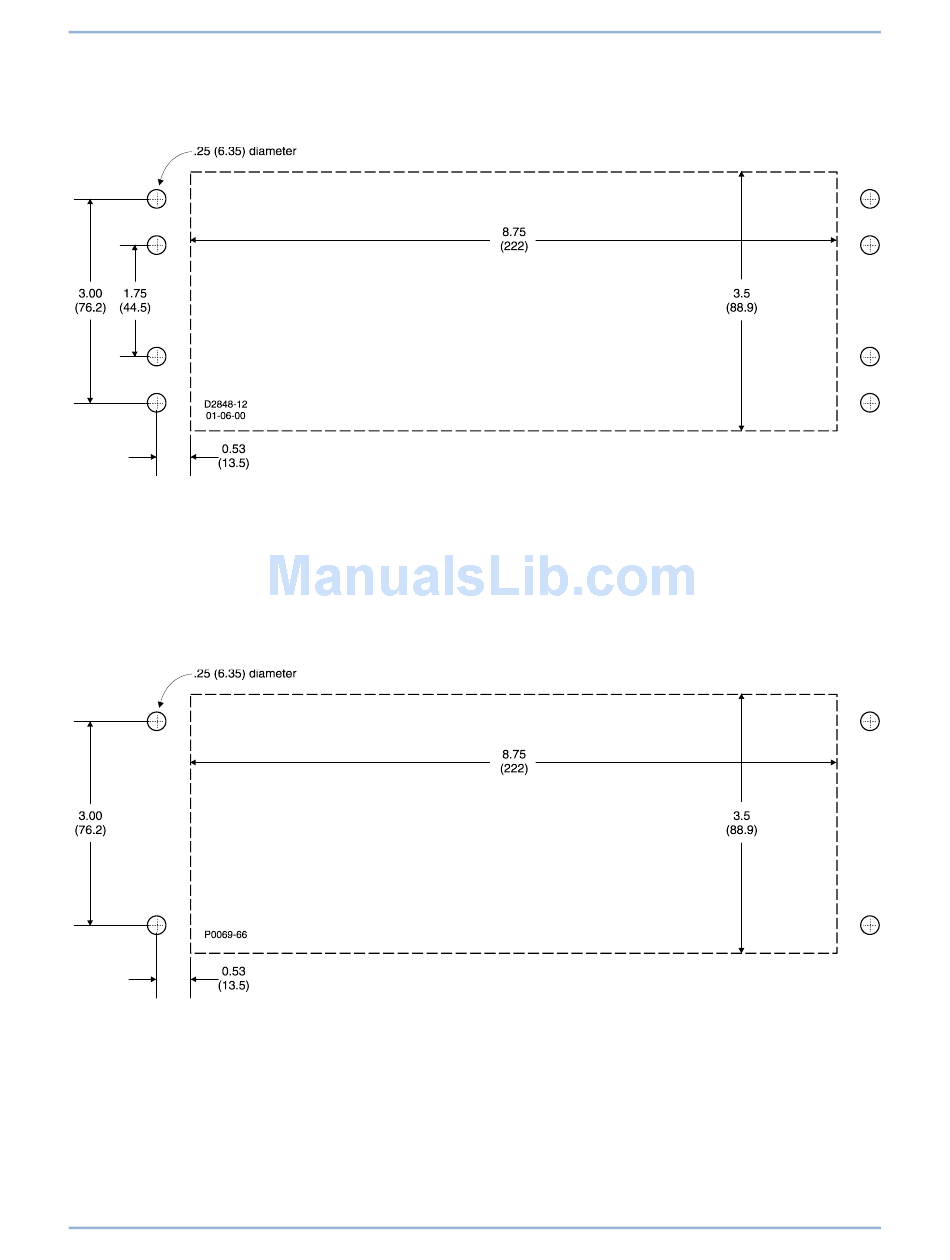

If a single H1 BE1-11g (H style case) is to be rack mounted, the cutout and drilling dimensions of Figure
202 should be used. If a single H1 BE1-11g (P style case) is to be panel mounted, the cutout and drilling
dimensions of Figure 203 should be used.
Figure 202. Single H1 BE1-11g (H Style Case) Cutout and Drilling Dimensions for Rack Mounting
Figure 203. Single H1 BE1-11g (P Style Case) Cutout and Drilling Dimensions for Panel Mounting
