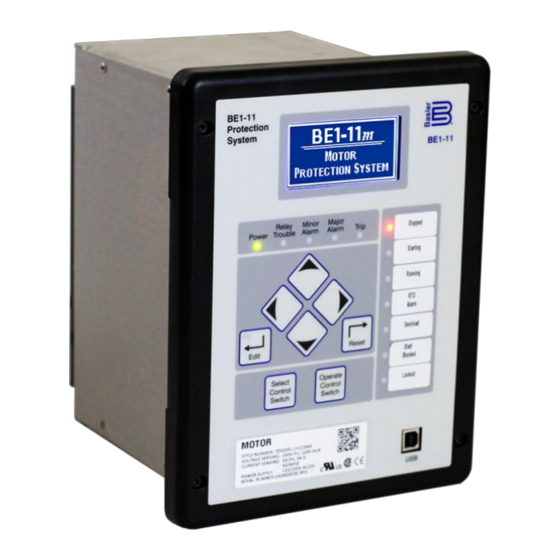

Basler BE1-11m Instruction Manual

Basler BE1-11m Instruction Manual

Motor protection system

Hide thumbs Also See for BE1-11m:

Quick start manual (24 pages)

Table of Contents

Advertisement

Quick Links

Download this manual

12570 Route 143 • Highland, Illinois 62249-1074 USA

Tel +1 618.654.2341 • Fax +1 618.654.2351

www.basler.com • info@basler.com

BE1-11m

Motor Protection System

Instruction Manual

Publication

9424200996, Rev Z

July 2021

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the BE1-11m and is the answer not in the manual?

Questions and answers

Summary of Contents for Basler BE1-11m

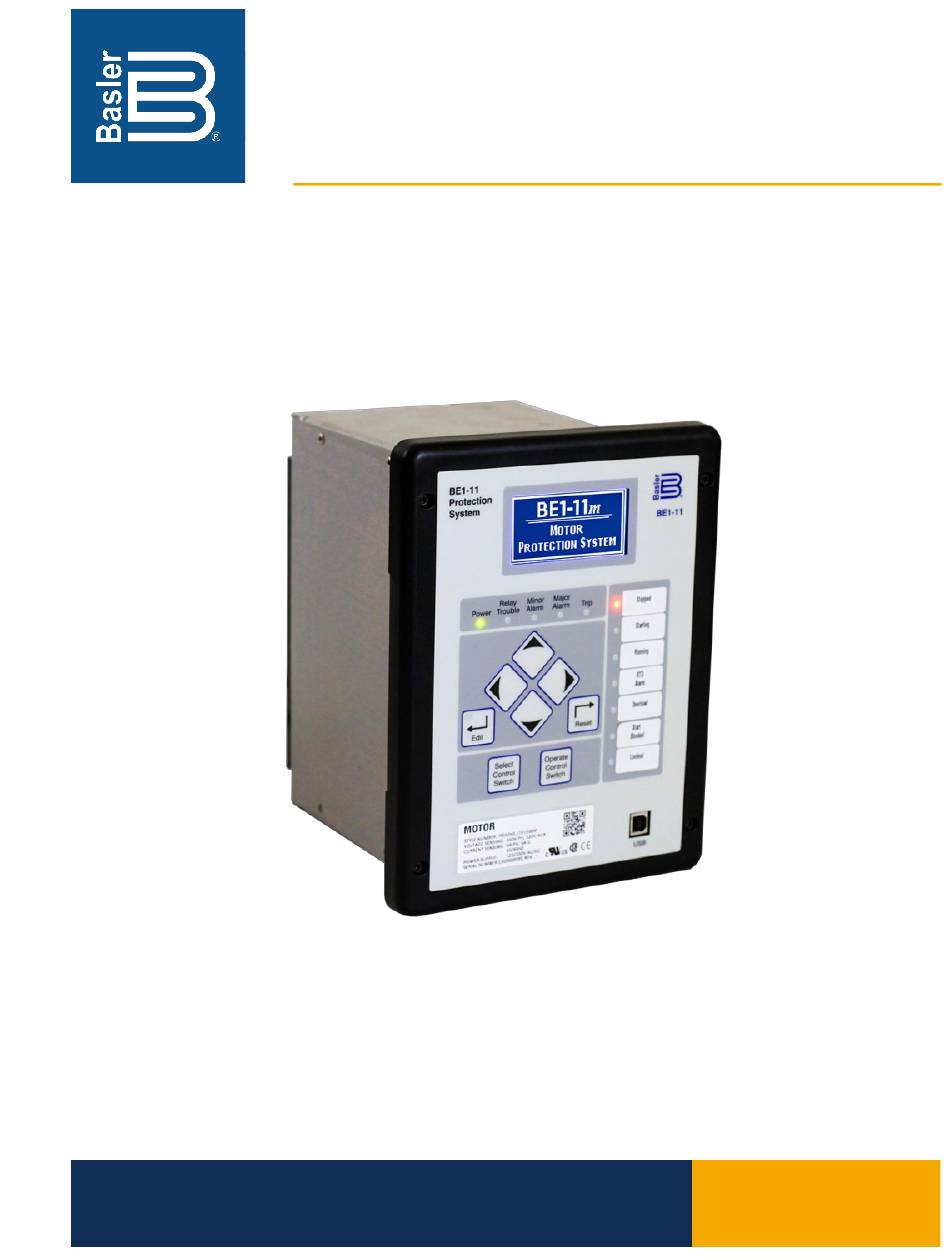

Page 1 BE1-11m Motor Protection System Instruction Manual Publication 12570 Route 143 • Highland, Illinois 62249-1074 USA Tel +1 618.654.2341 • Fax +1 618.654.2351 9424200996, Rev Z www.basler.com • info@basler.com July 2021...
Page 2 Proposition 65 warning, we are notifying you that one or more of the Proposition 65 listed chemicals may be present in products we sell to you. For more information about the specific chemicals found in this product, please visit https://www.basler.com/Prop65.
Page 3 9424200996 Preface This instruction manual provides information about the installation and operation of the BE1-11m Motor Protection System. To accomplish this, the following information is provided: General information and a quick start guide • • Controls and indicators Inputs and outputs •...
Page 4 The availability and design of all features and options are subject to modification without notice. Over time, improvements and revisions may be made to this publication. Before performing any of the following procedures, contact Basler Electric for the latest revision of this manual.
Page 5 Other minor text edits S, Jul-17 • Added support for BE1-11m BESTCOMSPlus version 3.17.01 R, May-17 • Added support for BE1-11m firmware version 2.11.01 and BESTCOMSPlus version 3.17.00 Minor text edits throughout manual • This revision letter not used •...
Page 6 9424200996 Manual Change Revision and Date N, Jul-16 Added support for BE1-11m firmware version 2.10.00 and BESTCOMSPlus • version 3.14.00 Minor text edits • M, Dec-15 Added support for BE1-11m firmware version 2.09.00 and BESTCOMSPlus • version 3.11.00 • Replaced several BESTCOMSPlus settings screens showing primary and...
Page 7 Minor text edits and other improvements throughout manual • A, Jan-11 Added DNP Certification in Section 1 • Added Figure D-2, Re-Attaching the Front Cover • Added RTD Module Communications Setup Procedure in Appendix E • —, Sep-10 Initial release • BE1-11m Revision History...
Page 8 9424200996 Revision History BE1-11m...
Page 9: Table Of Contents
Lockout Functions (86) ..........................27-1 Breaker Control Switch (101) ........................28-1 Setting Groups ............................29-1 Metering ..............................30-1 Digital Points ............................31-1 Sequence of Events ..........................32-1 Fault Reporting ............................33-1 Motor Reporting ............................34-1 Alarms ..............................35-1 Differential Reporting ..........................36-1 BE1-11m Contents...
Page 10 Thermal Curve (49TC) Test ........................70-1 Incomplete Sequence (48) Test ....................... 71-1 Starts per Time Interval (66) Test ......................72-1 Restart Inhibit Test ........................... 73-1 Virtual Control Switches (43) Test ......................74-1 Logic Timers (62) Test ..........................75-1 Contents BE1-11m...
Page 11 Frequently Asked Questions (FAQ) ......................78-1 Troubleshooting ............................79-1 Specifications ............................80-1 Specifications - 25 Hz Operation ......................81-1 Time Curve Characteristics ........................82-1 RTD Module ............................. 83-1 Settings Calculation Examples ........................ 84-1 BESTCOMSPlus Settings Loader Tool ....................85-1 ® BE1-11m Contents...
Page 12 9424200996 Contents BE1-11m...
Page 13: Introduction
Through BESTCOMSPlus, all BE1-11m settings and logic can be retained in a file for printing or uploading to other BE1-11m protection systems. Oscillography and sequential events records can be retrieved from a BE1-11m, viewed, and printed.
Page 14 Three free-form fields (Device ID, Station ID, and User ID) can be used to enter information to identify the BE1-11m. These fields are used by many of the reporting functions to identify the BE1-11m reporting the information. Examples of BE1-11m identification field uses include motor name and motor number.
Page 15 NTP synchronizes the real-time clock to network time servers through the Ethernet port. BESTCOMSPlus is used to establish the priority of time reference sources available to the BE1-11m, IRIG-B, NTP, DNP, and RTC (real-time clock). The NTP address is set using BESTCOMSPlus.
Page 16 BESTlogicPlus. Alarms Extensive self-diagnostics will trigger a fatal relay trouble alarm if any of the BE1-11m core functions are compromised. Fatal relay trouble alarms are not programmable and are dedicated to the Alarm output (OUTA) and the front panel Relay Trouble LED. Additional relay trouble alarms and all other alarm functions are programmable for major or minor priority.
Page 17 BESTwave is included on the BE1-11 product CD. Sequence of Events Recorder A Sequence of Events Recorder (SER) records and time stamps all BE1-11m inputs and outputs as well as all alarm conditions monitored by the BE1-11m. Time stamp resolution is to the nearest half-cycle. I/O and Alarm reports can be extracted from the records as well as reports of events recorded during the time span associated with a specific fault report.
Page 18 Optionally, an SEF (sensitive earth fault) version of the separate ground CT is available. Note BE1-11m protection systems enabled for IEC-61850 communication (style Mxxxx5xxxxxxxx) do not allow voltage controlled or restrained overcurrent elements. Blocking a 51 with an Undervoltage (27) element may allow control pending application requirements.
Page 19 Resistance Temperature Detector (49RTD) Fourteen resistance temperature detector elements provide over/undertemperature protection in applications where a remote RTD module is connected to the BE1-11m via Ethernet or RS-485 cable. For more information, refer to the RTD Module chapter. Incomplete Sequence (48) Protection...
Page 20 The style number describes the options included in a specific device and appears on labels located on the front panel and inside the case. Upon receipt of a BE1-11m, be sure to check the style number against the requisition and the packing list to ensure that they agree.
Page 21 9424200996 Figure 1-1. Style Chart BE1-11m Introduction...
Page 22 1-10 9424200996 Introduction BE1-11m...
Page 23: Quick Start
Basler Electric Regional Sales Office, your sales representative, or a sales representative at Basler Electric, Highland, Illinois. If the BE1-11m is not installed immediately, store it in the original shipping carton in a moisture- and dust- free environment.
Page 24 BE1-11m is possible only after activating the BE1-11 plugin. Note that if a BE1-11m is not connected, you will not be able to configure certain Ethernet settings. Ethernet settings can be changed only when an active USB or Ethernet connection is present. Refer to the Communication chapter for more information.
Page 25 Connect rear terminals A6, A7, and A8 (ground) to a power supply. Figure 2-2 shows the rear terminals of the BE1-11m with standard I/O option. Apply operating power consistent with the nominal power supply values listed on the front-panel label. Wait until the boot sequence is complete.
Page 26 The BE1-11 Connection screen shown in Figure 2-6 appears. Select USB Connection and then click the Connect button. The BE1-11 plugin opens indicating that activation was successful. You can now configure the BE1-11m communication ports and other BE1-11m settings. Quick Start...
Page 27 BE1-11m is brought into BESTCOMSPlus by downloading settings and logic from the BE1-11m or by selecting application type “M” on the Style Number screen. This gives the user the option of developing a custom setting file by modifying the default logic scheme or by building a unique scheme from scratch.
Page 28 9424200996 BESTlogic™Plus Programmable Logic is used to program BE1-11m logic for protection elements, inputs, outputs, alarms, etc. This is accomplished by the drag-and-drop method. The user can drag elements, components, inputs, and outputs onto the program grid and make connections between them to create the desired logic scheme.
Page 29 Step 3: Select Download Settings and Logic from Device from the Communication pull-down menu. This copies all settings and logic from the BE1-11m to BESTCOMSPlus. Step 4: Click on the View drop-down button and de-select Show Metering Panel and Show Setting Information.
Page 30 This Overload Off-Page Output is carried over to Logic Page 4 (Figure 2-13) where it becomes an Off-Page Input. The Overload Off-Page Input and several others are AND gated to physical Output 1 on the BE1-11m. Therefore, the OUT1 contacts operate when the 50-4 element is tripped.
Page 31 I/O tab at the bottom. Expand Output Objects and then Physical Outputs. Click and drag OUT4 over to the logic diagram. Click on the Pickup output of the 50-4 element and drag it to the input of OUT4 to make a connection. Refer to Figure 2-14. BE1-11m Quick Start...
Page 32 Click on the Pickup output of the 50-4 element and drag to the input of USERALM1 to make a connection. Refer to Figure 2-15. Step 12: Click the Save button to save the logic to BESTCOMSPlus memory for later inclusion in the settings file. See Figure 2-16. Quick Start BE1-11m...
Page 33 (Overload Pickup) as shown in Figure 2-17. Figure 2-17. Contact Outputs Screen Step 14: In the Settings Explorer, expand Alarm Configuration, User Programmable Alarms, and name User Programmable Alarm #1 (Overload Pickup) as shown in Figure 2-18. BE1-11m Quick Start...
Page 34 Step 16: Select Save from the File pull-down menu to save your new settings file. Step 17: To make your new settings active in the BE1-11m, select Upload Settings and Logic to Device from the Communication pull-down menu. Enter the username and password.
Page 35: Controls And Indicators
9424200996 3 • Controls and Indicators BE1-11m controls and indicators are located on the front panel and include sealed membrane switches, LED (light emitting diode) indicator lamps, and a multiple-line, alphanumeric LCD (liquid crystal display). Illustrations and Descriptions The HMI (Human-Machine Interface) is illustrated in Figure 3-1 and described in Table 3-1. The locators and descriptions of Table 3-1 correspond to the locators shown in Figure 3-1.
Page 36 Locator Description Power Indicator – This green LED lights when operating power is applied to the BE1-11m. Relay Trouble Indicator – This red LED lights momentarily during start-up and lights continuously when a BE1-11m failure is detected. The Contact Inputs and Outputs chapter provides a complete description of all BE1-11m failure alarm diagnostics.
Page 37 Logic Figure 3-2. Front-Panel Display Menu Tree Layout Front Panel Operations The following paragraphs describe how the front-panel interface is used to set and control BE1-11m functions. Entering Usernames and Passwords If password security has been initiated for a function, the front-panel display will prompt you to enter a username and password when the Edit pushbutton is pressed.
Page 38 To close access immediately, press the Reset button while any non-settings screen is displayed. The BE1-11m should flash “Read Only” on the LCD screen to indicate access through the front panel has been terminated.
Page 39 Targets and alarms are automatically displayed on the front-panel LCD when they become active if on the splash screen. After targets and alarms are reset, the BE1-11m returns to the main screen and begins scrolling if scrolling is enabled. Press the RIGHT navigation key to access the menu when targets and alarms are being displayed.
Page 40 9424200996 Figure 3-3. Front-Panel Display Setup Screen Controls and Indicators BE1-11m...
Page 41: Contact Inputs And Outputs
This section describes the function and setup of each input and output. Contact-Sensing Inputs Either seven or 10 contact inputs are available to initiate BE1-11m protection system actions. Refer to the style chart for I/O options. Each isolated input requires an external wetting voltage. The nominal voltage(s) of the external dc source(s) must fall within the BE1-11m dc power supply input voltage range.
Page 42 9424200996 input(s) that you want to configure. Observe all electrostatic discharge (ESD) precautions when handling the BE1-11m. Using the input labels on the rear panel as a guide, locate the appropriate jumper terminal block that is mounted on the circuit board. Each terminal block has two sets of pins. With the jumper as installed at the factory, one pin should be visible when viewed from the back of the unit.
Page 43 Debounce Time. The labels include a label to describe the input, a label to describe the Energized State, and a label to describe the De-Energized State. Labels are used by the BE1-11m's reporting functions. To edit the settings or labels, use the Settings Explorer to open the Programmable Inputs, Contact Inputs tree branch as shown in Figure 4-3.
Page 44 Contact input status is determined through BESTCOMSPlus by using the Metering Explorer to open the Status, Inputs tree branch. BESTCOMSPlus must be online with the BE1-11m to view contact input status. Alternately, status can be determined through the front-panel display by navigating to Metering >...
Page 45 Table 4-3. If any one of these points asserts, the failsafe alarm output relay de-energizes and closes/opens (depending on style number) the OUTA contact, the front-panel Relay Trouble LED lights, all output relays are disabled, logic OUTA is set, and the BE1-11m is taken offline. The relay trouble alarms function is not programmable.
Page 46 Energized State, and a label to describe the De-Energized State. Labels are used by the BE1-11m's reporting functions. To edit the settings or labels, use the Settings Explorer to open the Programmable Outputs, Contact Outputs tree branch as shown in Figure 4-7.
Page 47 Reset, Set, and Pulse. Pulsing a Contact Output Pulsing BE1-11m outputs provides the user the ability to test the operability of an output without energizing a measuring or timing element. This feature is useful when testing the protection and control system.
Page 48 Output status is determined through BESTCOMSPlus by using the Metering Explorer to open the Status/Outputs tree branch. BESTCOMSPlus must be online with the BE1-11m to view contact output status. Alternately, status can be determined through the front-panel display by navigating to Metering >...
Page 49: Phase Undervoltage (27P) Protection
9424200996 5 • Phase Undervoltage (27P) Protection Four phase undervoltage (27P) elements monitor the sensing voltage applied to the BE1-11m. An element can be configured to protect against undervoltage when the phase voltage decreases below a defined level. The four, identical phase undervoltage protection elements are designated 27P-1, 27P-2, 27P-3, and 27P-4.
Page 50 Table curves can be entered regardless of the curve chosen for the protection element. However, the table curve will not be enabled until T1, T2, T3, or T4 is selected as the curve for the protective element. Phase Undervoltage (27P) Protection BE1-11m...
Page 51 If a target is enabled for the element, the BE1-11m will record a target when the Trip output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 52 Element Blocking Fuse Loss The fuse loss (60FL) element of the BE1-11m can be used to block 27P protection when fuse loss or loss of potential is detected in a three-phase system. If the 60FL element trip logic is true and Block Phase/V1 is enabled, all functions that use the phase voltage are blocked.
Page 53 9424200996 Figure 5-3. Phase Undervoltage Settings Screen BE1-11m Phase Undervoltage (27P) Protection...
Page 54 9424200996 Phase Undervoltage (27P) Protection BE1-11m...
Page 55: Negative-Sequence Voltage (47) Protection
4 to 10 times the current imbalance. For a motor feeder, the negative-sequence voltage unbalances should not exceed 5 percent to avoid overheating and damage. BE1-11m Negative-Sequence Voltage (47) Protection...
Page 56 9424200996 Negative-Sequence Voltage (47) Protection BE1-11m...
Page 57: Phase Overvoltage (59P) Protection
9424200996 7 • Phase Overvoltage (59P) Protection Two phase overvoltage (59P) elements monitor the sensing voltage applied to the BE1-11m. An element can be configured to protect against overvoltage when the phase voltage increases above a defined level. The two, identical overvoltage protection elements are designated 59P-1 and 59P-2. Element logic connections are made on the BESTlogic™Plus screen in BESTCOMSPlus®...
Page 58 Table curves can be entered regardless of the curve chosen for the protection element. However, the table curve will not be enabled until T1, T2, T3, or T4 is selected as the curve for the protective element. Phase Overvoltage (59P) Protection BE1-11m...
Page 59 Element Blocking Fuse Loss The fuse loss (60FL) element of the BE1-11m can be used to block 59P protection when fuse loss or loss of potential is detected in a three-phase system. If the 60FL element trip logic is true and Block Phase/V1 is enabled, all functions that use the phase voltage are blocked.
Page 60 True when the 59P element is in a trip condition Pickup Output True when the 59P element is in a pickup condition Operational Settings Overvoltage element operational settings are configured on the Overvoltage settings screen (Figure 7-3) in BESTCOMSPlus. Phase Overvoltage (59P) Protection BE1-11m...
Page 61 9424200996 Figure 7-3. Overvoltage Settings Screen BE1-11m Phase Overvoltage (59P) Protection...
Page 62 9424200996 Phase Overvoltage (59P) Protection BE1-11m...
Page 63: Auxiliary Overvoltage (59X) Protection
Connections Connections are made on the rear of the BE1-11m. The phase VT inputs (Va, Vb, Vc) are used when 3V0, V1, or V2 mode is selected. The auxiliary VT input (Vx) is used when Vx Fundamental or Vx Third Harmonic mode is selected.
Page 64 Has greatest effect on selected curve curve shape near pickup. Exponent specific to Affects how inverse the characteristics are. Has greatest effect selected curve on curve shape at low to medium multiples of tap. Auxiliary Overvoltage (59X) Protection BE1-11m...
Page 65 9424200996 Parameter Description Explanation Time to reset Relevant if 59X-x function is set for integrating reset. Constant specific to Affects the speed of reset when integrating reset is selected. selected curve Curve constants are entered on the Overvoltage (59X) settings screen in BESTCOMSPlus. Programmable curve constants can be entered only when the P curve is chosen for the protection element from the Curve drop-down menu.
Page 66 Element Blocking Fuse Loss The fuse loss (60FL) element of the BE1-11m can be used to block 59X protection when fuse loss or loss of potential is detected in a three-phase system. If the 60FL element trip logic is true and Block Phase/V1 is enabled, the 59X function will be blocked when configured for V1 mode.
Page 67 9424200996 Figure 8-3. Auxiliary Overvoltage Settings Screen To use 3V0, V1, or V2 mode, the VTP connection cannot be single-phase. BE1-11t Auxiliary Overvoltage (59X) Protection...
Page 68 9424200996 Auxiliary Overvoltage (59X) Protection BE1-11m...
Page 69: Frequency (81) Protection
BE1-11m auxiliary voltage (Vx) sensing input. Refer to the Typical Connections chapter for information on voltage connections. To measure frequency, the voltage sensed by the BE1-11m must be greater than 10 Vac. The measured frequency is the average of two cycles of voltage measurement.
Page 70 If a target is enabled for the element, the BE1-11m will record a target when the Trip output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 71 9424200996 Sensing Source Frequency ROC protection can be applied to the voltage sensed at the BE1-11m phase VT input or auxiliary VT (Vx) input. A Source setting of Phase VT selects the voltage sensed at the phase VT input and a Source setting of Aux VT selects the voltage sensed at the Vx input.
Page 72 Frequency element operational settings are configured on the Frequency settings screen (Figure 9-2) in BESTCOMSPlus. Figure 9-2. Frequency Settings Screen Phase-to-phase and phase-to-neutral settings depend on the Phase VT and Aux VT connection settings. Refer to the Configuration chapter for more information on these settings. Frequency (81) Protection BE1-11m...
Page 73: Instantaneous Undercurrent (37) Protection
If a target is enabled for the element, the BE1-11m will record a target when the Trip output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 74 Operational Settings Instantaneous undercurrent element operational settings are configured on the Instantaneous Undercurrent (37) settings screen (Figure 10-2) in BESTCOMSPlus. Figure 10-2. Instantaneous Undercurrent Settings Screen For protection systems equipped with two sets of CTs. Instantaneous Undercurrent (37) Protection BE1-11m...
Page 75: Negative-Sequence Overcurrent (46) Protection
The phase-to-phase fault is made up of both positive and negative-sequence components as shown in of the magnitude of the total phase current. When these two factors ( √ 3/2 and 1/ √ 3) are combined, the √ 3 factors cancel which leaves the one-half factor. BE1-11m Negative-Sequence Overcurrent (46) Protection...
Page 76 Generally, for coordination with downstream phase overcurrent devices, phase-to-phase faults are the most critical to consider. All other fault types result in an equal or greater shift of the time current characteristic curve to the right on the plot. Negative-Sequence Overcurrent (46) Protection BE1-11m...
Page 77: Instantaneous Overcurrent (50) Protection
12 • Instantaneous Overcurrent (50) Protection Six instantaneous overcurrent (50) elements monitor the current applied to the BE1-11m. An element can be configured to protect against overcurrent by monitoring a single- or three-phase system, neutral current, positive-sequence current, negative-sequence current, ground current, or unbalanced current.
Page 78 If a target is enabled for the element, the BE1-11m will record a target when the Trip output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 79 True when the 50 element is in a pickup condition Operational Settings Instantaneous overcurrent element operational settings are configured on the Instantaneous Overcurrent (50) settings screen (Figure 12-2) in BESTCOMSPlus. Figure 12-2. Instantaneous Overcurrent Settings Screen BE1-11m Instantaneous Overcurrent (50) Protection...
Page 80 12-4 9424200996 Instantaneous Overcurrent (50) Protection BE1-11m...
Page 81: Breaker Failure (50Bf) Protection
(50BFI) is the initiation signal when current is used to determine a breaker failure. These initiate inputs can be driven by other relays through BE1-11m contact inputs or GOOSE over IEC 61850. Alternately, they can come from trip signals from other protective elements within the BE1-11m. Breaker status input is provided by the BRKSTAT logic element.
Page 82 If a target is enabled for the element, the BE1-11m will record a target when the Trip output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 83 True when the 50BF Delay Timer is actively timing Operational Settings Breaker failure element operational settings are configured on the Breaker Fail (50BF) settings screen (Figure 13-2) in BESTCOMSPlus. Figure 13-2. Breaker Fail Settings Screen BE1-11m Breaker Failure (50BF) Protection...
Page 84 13-4 9424200996 Breaker Failure (50BF) Protection BE1-11m...
Page 85: Inverse Overcurrent (51) Protection
14-1 14 • Inverse Overcurrent (51) Protection Five inverse overcurrent (51) elements monitor the current applied to the BE1-11m. An element can be configured to protect against overcurrent by monitoring a single- or three-phase system, neutral current, positive-sequence current, negative-sequence current, ground current, or unbalanced current.
Page 86 Constant Characteristic minimum delay term. Time to reset Relevant if 51-x function is set for integrating reset. Coefficient specific to Affects the speed of reset when integrating reset is selected. selected curve Inverse Overcurrent (51) Protection BE1-11m...
Page 87 Time Curve Characteristics chapter. The K factor is the time the motor can withstand 1 per unit I where 1 pu is the BE1-11m setting for nominal current. Pickup and Trip The Pickup output occurs first, followed by the Trip output.
Page 88 If a target is enabled for the element, the BE1-11m will record a target when the Trip output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 89 100% of its setting. See the Fuse Loss (60FL) chapter for more information. Protective elements blocked by 60FL should be set so that trip times are 60 milliseconds or greater to assure proper coordination of blocking. BE1-11m Inverse Overcurrent (51) Protection...
Page 90 True when the 51 element is in a trip condition Pickup Output True when the 51 element is in a pickup condition Operational Settings Inverse overcurrent element operational settings are configured on the Inverse Overcurrent (51) settings screen (Figure 14-4) in BESTCOMSPlus. Inverse Overcurrent (51) Protection BE1-11m...
Page 91 9424200996 14-7 Figure 14-4. Inverse Overcurrent Settings Screen BE1-11m Inverse Overcurrent (51) Protection...
Page 92 14-8 9424200996 Inverse Overcurrent (51) Protection BE1-11m...
Page 93: Phase Current Differential (87) Protection
The phase-current differential element compares the currents entering and leaving the protected motor. If a fault is detected, the BE1-11m initiates a trip signal to isolate the motor. This action limits damage to the motor and minimizes impact on the power system.
Page 94 If the target is enabled for the element, the BE1-11m will record a target when the Trip output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 95 9424200996 15-3 Figure 15-2. Phase Current Differential Settings Screen Figure 15-3. Phase Current Differential Operation Chart BE1-11m Phase Current Differential (87) Protection...
Page 96 Instantaneous Overcurrent (50) element provides flux-balancing protection. Figure 15-4. Flux-Balancing Connections If a BE1-11m is equipped with the differential option, an alternate method can be used to configure flux- balancing protection. In the Phase Differential (87) window of BESTCOMSPlus, set the mode to Flux Balance.
Page 97: Power (32) Protection
To clarify the difference between Three of Three and Total Power modes, assume that Two of Three mode has been selected and the pickup setting is 30 watts. Therefore, the BE1-11m picks up when two of the three phases have exceeded 30 watts. Alternately, if two phases are zero (0) watts and the third phase is 70 watts, the BE1-11m does not pickup because two of the phases have not exceeded the pickup threshold required for operation in Two of Three mode.
Page 98 In addition to exceeding the power pickup threshold, direction of power flow (forward or reverse) must match the directional setting for the 32 element to operate. In the BE1-11m, the forward and reverse directions are defined by the polarity voltage and current connections to the BE1-11m as shown in Figure 16-1.
Page 99 Element Blocking Fuse Loss The fuse loss (60FL) element of the BE1-11m can be used to block 32 protection when fuse loss or loss of potential is detected in a three-phase system. If the 60FL element trip logic is true and Block Power/Power Factor is enabled, all functions that use power measurements are blocked.
Page 100 True when the 32 element is in a trip condition Pickup Output True when the 32 element is in a pickup condition Operational Settings Power element operational settings are configured on the Power (32) settings screen (Figure 16-4) in BESTCOMSPlus. Figure 16-4. Power Settings Screen Power (32) Protection BE1-11m...
Page 101: Loss Of Excitation - Reverse Var Based (40Q) Protection
Pickup setting. In BESTlogicPlus, the Pickup output can be connected to other logic elements to annunciate the condition, control other elements in logic, and start the fault recorder (logic element FAULTTRIG). BE1-11m Loss of Excitation - Reverse Var Based (40Q) Protection...
Page 102 If a target is enabled for the element, the BE1-11m will record a target when the Trip output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 103: Power Factor (55) Protection
See the Fault Reporting chapter for more information about target reporting. Element Blocking Fuse Loss The fuse loss (60FL) element of the BE1-11m can be used to block 55 protection when fuse loss or loss of potential is detected in a three-phase system. BE1-11m...
Page 104 True when the 55 element is in trip condition Pickup Output True when the 55 element is in pickup condition Operational Settings Power factor operational settings are configured on the Power Factor (55) settings screen (Figure 18-2) in BESTCOMSPlus. Power Factor (55) Protection BE1-11m...
Page 105 9424200996 18-3 Figure 18-2. Power Factor Settings Screen BE1-11m Power Factor (55) Protection...
Page 106 18-4 9424200996 Power Factor (55) Protection BE1-11m...
Page 107: Resistance Temperature Detector (49Rtd) Protection
Time Delay setting. A Time Delay setting of zero (0) makes the element instantaneous with no intentional time delay. If the pickup condition subsides before the element delay expires, the timer and Pickup output are reset and no corrective action is taken. BE1-11m Resistance Temperature Detector (49RTD) Protection...
Page 108 BESTlogicPlus, the Trip output can be connected to other logic elements and to a physical relay output to annunciate the condition and to initiate corrective action. If a target is enabled for the element, the BE1-11m will record a target when the Trip output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 109 RTD metering values are obtained through BESTCOMSPlus by using the Metering Explorer to open the Analog Metering, RTD Meter tree branch. BESTCOMSPlus must be online with the BE1-11m to view RTD metering. Alternately, values can be obtained through the front-panel display by navigating to the Metering, Analog Metering, RTD Meter Input screen.
Page 110 19-4 9424200996 Resistance Temperature Detector (49RTD) Protection BE1-11m...
Page 111: Thermal Curve (49Tc) Protection
An internal hot-to-cold timer is initiated when the motor is stopped while in a hot state and the thermal capacity is less than 10%. The motor is determined as cold when the internal timer exceeds the Stopped BE1-11m Thermal Curve (49TC) Protection...
Page 112 When the 49TC element is set in User Curve mode, the Locked Rotor Curve is used when the Locked Rotor logic input is true. When the Locked Rotor logic input is false, the Overload Curve is used. Figure 20-1 shows the Overload Characteristic Curves screen. Thermal Curve (49TC) Protection BE1-11m...
Page 113 9424200996 20-3 Figure 20-1. Overload Characteristic Curves Screen Figure 20-2 shows the Locked Rotor Characteristic Curve screen. Figure 20-2. Locked Rotor Characteristic Curve Screen BE1-11m Thermal Curve (49TC) Protection...
Page 114 K Setting The K setting determines how much the negative-sequence current will bias the equivalent thermal current calculated by the BE1-11m. The equivalent thermal current is calculated in Equation 20-4. If the IEC Curve is being used, then I is fixed at zero and this equation is not necessary.
Page 115 When performing an emergency start, the Max Emergency Thermal Capacity setting determines the maximum thermal capacity allowed. An emergency start is requested when the Emergency input of the Motor Status logic block is true. The emergency start condition remains until the thermal capacity drops BE1-11m Thermal Curve (49TC) Protection...
Page 116 True when the 49TC element is in trip condition Overloaded Output True when the 49TC element is in overload condition Operational Settings Thermal curve operational settings are configured on the Thermal Curve (49TC) settings screen (Figure 20-5) in BESTCOMSPlus. Thermal Curve (49TC) Protection BE1-11m...
Page 117 20-7 Figure 20-5. Thermal Curve Settings Screen It is recommended that the IEC Hot Curve Current setting (I ) is set no greater than 95% of the thermal current pickup (S • SF • FLA). BE1-11m Thermal Curve (49TC) Protection...
Page 118 20-8 9424200996 Thermal Curve (49TC) Protection BE1-11m...
Page 119: Incomplete Sequence (48) Protection
If a target is enabled for the element, the BE1-11m will record a target when the Trip output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 120 Output True when the 48 element is in trip condition Operational Settings Incomplete sequence operational settings are configured on the Incomplete Sequence (48) settings screen (Figure 21-2) in BESTCOMSPlus. Figure 21-2. Incomplete Sequence Settings Screen Incomplete Sequence (48) Protection BE1-11m...
Page 121: Starts Per Time Interval (66) Protection
Configuration chapter for more information. If a target is enabled for the element, the BE1-11m will record a target when the Start Blocked logic output of the Motor Status logic element becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 122 22-2 9424200996 Starts per Time Interval (66) Protection BE1-11m...
Page 123: Restart Inhibit Protection
The Time Between Starts setting is a user-selectable time that an operator must wait between each start of the motor. Operational Settings Restart inhibit operational settings are configured on the Restart Inhibit settings screen (Figure 23-1) in BESTCOMSPlus. Figure 23-1. Restart Inhibit Settings Screen BE1-11m Restart Inhibit Protection...
Page 124 23-2 9424200996 Restart Inhibit Protection BE1-11m...
Page 125: Analog Input Protection
If a target is enabled for the element, the BE1-11m will record a target when the Trip output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 126 Analog input metering values are obtained through BESTCOMSPlus by using the Metering Explorer to open the Analog Metering, Analog Inputs tree branch. BESTCOMSPlus must be online with the BE1-11m to view analog input metering. Alternately, values can be obtained through the front-panel display by navigating to the Metering, Analog Metering, Analog Input screen.
Page 127: Virtual Control Switches (43)
The traditional approach might be to install a switch on the panel and wire the output to a contact sensing input on the BE1-11m or in series with the ground trip output of the BE1-11m. Instead, a virtual control switch can be used to reduce costs with the added benefit of being able to operate the switch both locally through the front panel and remotely from a substation computer or through an Ethernet connection to a remote operator’s console.
Page 128 If a tag is placed through the front panel, it can be removed only through the front panel. This applies for all other forms of communication when placing tags. Virtual Control Switches (43) BE1-11m...
Page 129 Removes the blocking tag from the 43 element Output Output True when the 43 element is set Operational Settings Virtual control switch element operational settings are configured on the Virtual Control Switches (43) settings screen (Figure 25-3) in BESTCOMSPlus. BE1-11m Virtual Control Switches (43)
Page 130 25-4 9424200996 Figure 25-3. Virtual Control Switches Settings Screen Virtual Control Switches (43) BE1-11m...
Page 131: Logic Timers (62)
BESTlogicPlus, the output can be connected to other logic elements or a physical relay output to alert the operator of a condition. If a target is enabled for the element, the BE1-11m will record a target when the output becomes true. See the Fault Reporting chapter for more information about target reporting.
Page 132 T1 defines the time delay for the output to change to true if the initiate input becomes true and stays true. T2 defines the Logic Timers (62) BE1-11m...
Page 133 Figure 26-6. Latched Mode Element Blocking The Block input provides logic-supervision control of the element. When true, the Block input disables the element by forcing the element output to logic 0 and resetting the element timer. Connect the element BE1-11m Logic Timers (62)
Page 134 True when 62 timing criteria have been met according to mode Operational Settings Logic timer element operational settings are configured on the Logic Timers (62) settings screen (Figure 26-8) in BESTCOMSPlus. Figure 26-8. Logic Timers Settings Screen Logic Timers (62) BE1-11m...
Page 135: Lockout Functions (86)
Sets the state of the output to false Output Output True when the Set input is asserted Operational Settings Lockout function element operational settings are configured on the Lockout Functions (86) settings screen (Figure 27-2) in BESTCOMSPlus. Figure 27-2. Lockout Functions Settings Screen BE1-11m Lockout Functions (86)
Page 136 27-2 9424200996 Retrieving Lockout Status from the BE1-11m Lockout status can be viewed through BESTCOMSPlus, the front-panel display, and the web page interface. To view 86 lockout status using BESTCOMSPlus, use the Metering Explorer to open the Status, 86 Lockout Status screen shown in Figure 27-3. To view lockout status from the front-panel display, navigate to Metering Explorer, Status, 86 Lockout Status.
Page 137: Breaker Control Switch (101)
CSC output pulses true (closed) and the TSC goes false (open). The status of the slip contact outputs is saved to nonvolatile memory so that the BE1-11m will power up with the contact in the same state as when the BE1-11m was powered down.
Page 138 Breaker control element logic connections are made on the BESTlogicPlus screen in BESTCOMSPlus. The breaker control element logic block is illustrated in Figure 28-3. All logic inputs use rising-edge detection for recognition. Logic inputs and outputs are summarized in Table 28-1. Breaker Control Switch (101) BE1-11m...
Page 139 True after the Close output momentarily closes Operational Settings Breaker control element operational settings are configured on the Breaker Control Switch (101) settings screen (Figure 28-4) in BESTCOMSPlus. Figure 28-4. Breaker Control Switch Settings Screen BE1-11m Breaker Control Switch (101)
Page 140 28-4 9424200996 Breaker Control Switch (101) BE1-11m...
Page 141: Setting Groups
To prevent the BE1-11m from changing settings while a fault condition is in process, setting group changes are blocked when the BE1-11m is in a picked-up state. Since the BE1-11m is completely programmable, the fault condition is defined by the pickup logic expression in the fault reporting functions.
Page 142 D0 and D1 inputs except when blocked by the AUTOMATIC input. Note that a pulse on the D1 input while D0 is also active does not cause a setting change to SG3 because the AUTOMATIC input is active. Setting Groups BE1-11m...
Page 143 The Setting Change alarm bit is asserted for the SGCON time setting. This output can be used in the programmable alarms function if it is desired to monitor when the BE1-11m changes to a new setting group. See the Alarms chapter for more information on setting up alarms.
Page 144 29-4 9424200996 to an alternate setting group that can accommodate the condition. The BE1-11m can be set to alarm for this condition using the programmable logic alarms. The BE1-11m has the logic to automatically change setting groups based upon the status of the fuse loss (60FL).
Page 145 Output True when Setting Group Control is overridden by logic Operational Settings Setting group operational settings are configured on the Setting Group Setup screen (Figure 29-4) in BESTCOMSPlus. Setting ranges and defaults are summarized in Table 29-3. BE1-11m Setting Groups...
Page 146 SG0. (Set in increments of 0.01A, secondary amps.) 0 = Disabled Time, in minutes, that determines when a return to SG0 Return 1 to 60 minutes will occur once the monitored current has decreased Time below the Return Threshold setting. Setting Groups BE1-11m...
Page 147 Group is also displayed on this screen. Figure 29-5. Setting Group Control Screen Manual setting group control can also be achieved by navigating to the Metering > Control > Settings Group Control screen on the front-panel display. BE1-11m Setting Groups...
Page 148 29-8 9424200996 Setting Groups BE1-11m...
Page 149: Metering
9424200996 30-1 30 • Metering The BE1-11m measures the voltage and current inputs, displays those values in real time, records those values every quarter-second, and calculates other quantities from the measured inputs. Metering Explorer The Metering Explorer is a convenient tool within BESTCOMSPlus® that contains analog metering, status, reports, demands, power quality, and control.
Page 150 Metering functions are summarized in the following paragraphs. For information on power, VA, and var calculations, refer to the Configuration chapter. Auto Ranging The BE1-11m automatically scales metered values. Table 30-2 illustrates the ranges for each value metered. Table 30-2. Auto Ranging Scales for Metered Values...
Page 151 Real power is metered over a range of –4,500 kilowatts to +4,500 kilowatts on five-ampere nominal systems. One-ampere nominal systems meter real power over a range of –900 watts to +900 watts. Phases A, B, C, and total phase are included. BE1-11m Metering...
Page 152 “---“. Frequency is sensed from Va to N on the back of the BE1-11m. Refer to the Typical Connections chapter for three-wire and four-wire connection diagrams. The frequency of the auxiliary voltage input (VX) is also measured.
Page 153 Equation 30-4. IR A Calculation when 87 Mode = Phase Differential and Slope Mode = Average Differential metering data is found in BESTCOMSPlus (Figure 30-6) and on the Metering > Analog Metering > Differential screen of the front-panel display. BE1-11m Metering...
Page 154 A lagging power factor load will report positive watts and positive vars. Energy metering data is found in BESTCOMSPlus (Figure 30-7) and on the Metering > Analog Metering > Energy screen of the front-panel display. Figure 30-7. Analog Metering, Energy Screen Metering BE1-11m...
Page 155 Figure 30-8. Meter Energy Editor Screen Analog Inputs and Outputs The following screens are used when an optional RTD module is connected to the BE1-11m. For more information, refer to the RTD Module chapter. The Analog Inputs screen is shown in Figure 30-9 and the Analog Outputs screen is shown in Figure 30-10.
Page 156 30-8 9424200996 Figure 30-11. RTD Meter Screen Metering BE1-11m...
Page 157: Digital Points
31 • Digital Points BE1-11m digital points are shown in BESTCOMSPlus under Metering Explorer, Status, Digital Points. The user can search for points by scrolling through a grid of all points or by entering the point name in the top filter row.
Page 158 31-2 9424200996 Figure 31-2. Digital Points – Monitor Screen Digital Points BE1-11m...
Page 159: Sequence Of Events
The SER tracks over 700 data points by monitoring the internal and external status of the BE1-11m. Data points are scanned every quarter-cycle. All changes of state that occur during each scan are time tagged to 1 millisecond resolution.
Page 160 Use the Metering Explorer to open the Reports, Sequence of Events screen. If an active connection to a BE1-11m is present, the sequence of events will automatically download. Using the Options button, you can copy, print, or save the Sequence of Events. The Refresh button is used to refresh/update the list of events.
Page 161: Fault Reporting
Logic Logic trigger expressions allow the fault reporting function to be triggered even though the BE1-11m is not picked up. A logic trigger expression provides an input to the fault reporting function much as the pickup expression does.
Page 162 Remote Analog Input Target logging for a protective function can be disabled if the function is used in a supervisory or monitoring capacity. The following paragraphs describe how the BE1-11m is programmed to define which protective functions log targets. Fault Reporting...
Page 163 Figure 33-3. User Programmable Targets Screen Grouped Targets A grouped target is annunciated when any target in the group is active. The group targets in Table 33-2 can be enabled or disabled on the Target Settings screen in BESTCOMSPlus. BE1-11m Fault Reporting...
Page 164 Retrieving Target Information and Resetting Targets To view targets at the front-panel display, navigate to Metering > Status > Targets. The BE1-11m provides target information from the most recent trip event. Target information is specific to an event; it is not cumulative.
Page 165 When a new fault summary report is generated, the BE1-11m discards the oldest of the 255 events and replaces it with a new one. Each fault summary report is assigned a sequential number (from 1 to 255) by the BE1-11m. After event number 255 has been assigned, the numbering starts over at 1.
Page 166 Fault report data can be viewed through the web page interface. For more information, refer to the BESTnetPlus chapter. Viewing Fault Data through the Front-Panel Display Fault report data for the last 10 faults can be viewed through the front-panel display by navigating to Metering, Reports, Fault Reports. Fault Reporting BE1-11m...
Page 167 Figure 33-8 and Table 33-3, call-out A. Fault Number This line reports the sequential number (from 1 to 255) assigned to the report by the BE1-11m. Event Type This line reports the type of event that occurred. There are five event categories: Trip: A fault was detected as defined by the pickup expression and the BE1-11m tripped to clear the fault.
Page 168 Refer to Figure 33-8 and Table 33-3, call-out B. Fault Clearing Time This line reports the time from when the BE1-11m detected the fault until the BE1-11m detected that the fault had cleared. Refer to Figure 33-8 and Table 33-3, call-out C.
Page 169 Maximum data capture resolution is 32 samples per cycle and is user selectable. The BE1-11m can store up to 2,048 cycles of data at 8 samples per cycle or 512 cycles of data at 32 samples per cycle. Refer to Error! Reference source not found. for Oscillographic Records Settings.
Page 170 Oscillographic records can be downloaded through the Reports, Fault Reports screen in BESTCOMSPlus (Figure 33-6). See Fault Reports earlier in this chapter. Oscillographic records can also be downloaded through the web page interface. For more information, refer to the BESTnetPlus chapter. Fault Reporting BE1-11m...
Page 171 (When Fault Trigger (PU) is TRUE) flashing Red TRIP LED (When Fault Trigger (Trip) is TRUE) solid Breaker interruption duty Setting group (When Fault Trigger (PU) is TRUE) change blocked P0037-12 03-23-06 Figure 33-8. Protective Fault Analysis BE1-11m Fault Reporting...
Page 172 During the time the Trip expression is true, the red Trip LED on the front panel lights steadily indicating that the BE1-11m is in a tripped state. If targets have been logged for the fault, the Trip LED is sealed in until the targets have been reset.
Page 173: Motor Reporting
9424200996 34-1 34 • Motor Reporting The motor reporting function records and reports information about motor operation. The BE1-11m provides many reporting features. These features include Status, Metering, Start Records, and Data. Status Motor status can be viewed through BESTCOMSPlus® and the front-panel display. To view motor status using BESTCOMSPlus, use the Metering Explorer to open the Status, Motor Status screen shown in Figure 34-1.
Page 174 When a new motor start record is generated, the BE1-11m discards the oldest of the five records and replaces it with a new one. Each motor start record is assigned a sequential number by the BE1-11m.
Page 175 Figure 34-5 illustrates the Motor Run Time screen. Hours and minutes can be reset or changed by clicking the Edit button. Figure 34-5. Motor Run Time Screen The Total Starts screen is illustrated in Figure 34-6. Click the Edit button to reset or change the values. BE1-11m Motor Reporting...
Page 176 Learned Motor Data The Learned Motor Data screen is shown in Figure 34-9. Learned motor data is calculated from the five most recent successful starts. Values for RTD Group 1-4 are displayed when an optional RTD module is connected. Motor Reporting BE1-11m...
Page 177 9424200996 34-5 Figure 34-9. Learned Motor Data Screen BE1-11m Motor Reporting...
Page 178 34-6 9424200996 Motor Reporting BE1-11m...
Page 179: Alarms
The ability to program the reporting and display of alarms along with the automatic display priority feature of the front-panel display gives the BE1-11m the functionality of a local and remote alarm annunciator. See the Controls and Indicators chapter for more information on the automatic display priority logic.
Page 180 Programmable Alarm 5 Programmable alarm 5 is true Programmable Alarm 6 Programmable alarm 6 is true Programmable Alarm 7 Programmable alarm 7 is true Programmable Alarm 8 Programmable alarm 8 is true Programmable Alarm 9 Programmable alarm 9 is true Alarms BE1-11m...
Page 181 Name Description Real Time Clock Real-time clock not set BE1-11m cannot communicate with the RTD module. This alarm is set by RTD Comm Receive Fail the BE1-11m. RTD Comm Send Fail RTD module cannot communicate with the BE1-11m. This alarm is set by the remote RTD module.
Page 182 To view alarm status using BESTCOMSPlus, use the Metering Explorer to open the Status, Alarms screen shown in Figure 35-3. Alarms can be reset by clicking the Reset Alarms button under the appropriate column. Figure 35-3. Alarms Screen Alarms BE1-11m...
Page 183 Read. Alarm reset can also be set outside of security control, allowing reset without logging in. Refer to the Security chapter for more information. An alarm reset is available as a status input in BESTlogicPlus. Refer to the BESTlogicPlus chapter for more information. BE1-11m Alarms...
Page 184 35-6 9424200996 Alarms BE1-11m...
Page 185: Differential Reporting
36-1 36 • Differential Reporting The BE1-11m records information about the phase current differential (87) status of the BE1-11m and creates a differential report. Only one report is stored in nonvolatile memory. When a new report is generated, the BE1-11m discards the old report and replaces it with the new one.
Page 186 36-2 9424200996 Differential Reporting BE1-11m...
Page 187: Breaker Monitoring
The number of breaker operations can be read at the front-panel display. The counter value can be adjusted using the Edit key. This allows the BE1-11m counter value to be matched to an existing mechanical cyclometer on a breaker mechanism. Write access to the reports functions must be gained to...
Page 188 Even though duty register values are calculated and stored in primary amperes or primary amperes- squared, the duty value is reported as a percent of maximum. The user sets the value that the BE1-11m will use for 100 percent duty (D ).
Page 189 (When Fault Trigger (PU) is TRUE) flashing Red TRIP LED (When Fault Trigger (Trip) is TRUE) solid Breaker interruption duty Setting group (When Fault Trigger (PU) is TRUE) change blocked P0037-12 03-23-06 Figure 37-3. Protective Fault Analysis BE1-11m Breaker Monitoring...
Page 190 During the time the Trip expression is true, the red Trip LED on the front panel lights steadily indicating that the BE1-11m is in a tripped state. If targets have been logged for the fault, the Trip LED is sealed in until the targets have been reset.
Page 191 HMI Navigation Path: Metering Explorer, Reports, Breaker Report Breaker duty values can be read at the front-panel display. Duty values can be changed by using the front-panel Edit key. Write access to reports is required to edit breaker duty values. Duty values can also BE1-11m Breaker Monitoring...
Page 192 Settings are made using BESTCOMSPlus. Use the Settings Explorer to open the Alarm Configuration, Breaker Monitoring tree branch shown in Figure 37-4. Using the pull-down menus and settings boxes, make the application-appropriate settings to the breaker alarms. Breaker Monitoring BE1-11m...
Page 193: Demands
The BE1-11m continuously calculates demand values for current, watts, vars, and VA. Demand values are recorded with timestamps for peak demands and present demands. Programmable alarm points can be set to alarm if thresholds are exceeded for overload and unbalanced loading conditions.
Page 194 To access demand data through BESTCOMSPlus, use the Metering Explorer to open the Demand tree branch and select Demand Current (Figure 38-2), Demand Power (Figure 38-3), Demand Reactive Power, or Demand Apparent Power. The Demand Reactive Power and Demand Apparent Power screens are similar. Demands BE1-11m...
Page 195 9424200996 38-3 Figure 38-2. Demand Current Screen Figure 38-3. Demand Power Screen Refer to the BESTnet™Plus chapter for information on viewing the demands through the web page interface. BE1-11m Demands...
Page 196 38-4 9424200996 Demands BE1-11m...
Page 197: Load Profile
BESTCOMSPlus Navigation Path: Metering Explorer, Reports, Load Profile HMI Navigation Path: Not available through the front panel Recorded load profile data can be downloaded through BESTCOMSPlus on the Load Profile screen under Reports of the Metering Explorer. BE1-11m Load Profile...
Page 198 39-2 9424200996 Load Profile BE1-11m...
Page 199: Power Quality
40-1 40 • Power Quality The BE1-11m offers class B power quality measurement performance as defined by IEC 610004-30. Power quality data consists of voltage, distortion, dips/swells, and harmonics. Power quality is reported through BESTCOMSPlus®, the front-panel interface, and the web page interface. Refer to the BESTnet™Plus chapter for information on viewing the demands through the web page interface.
Page 200 10-Second Frequency �� A 10-second average of the frequency is calculated using Equation 40-1. �� Equation 40-1. 10-Second Frequency Calculation Power Quality BE1-11m...
Page 201 10-Second Frequency = 501/9.998 = 50.1100 Hz Distortion The voltage during a dip is often distorted. This distortion may be important for understanding the effect of � �� the dip on the system. The BE1-11m calculates distortion using Equation 40-2. − �� % = × 100 ��...
Page 202 40-4 9424200996 Figure 40-5. Power Quality, Harmonic Voltage Screen Refer to the BESTnetPlus chapter for information on viewing power quality data through the web page interface. Power Quality BE1-11m...
Page 203: Trip Circuit Monitor (52Tcm)
See Figure 41-1. The amount of current drawn through the optical isolator circuit depends on the total input impedance for each power supply voltage rating (see Table 41-1). Figure 41-1. Trip Detector Circuit BE1-11m Trip Circuit Monitor (52TCM)
Page 204 If the trip circuit voltage is significantly greater than the power supply voltage (for example, when using a capacitor trip device), the user should program the BE1-11m to use one of the other output relays for tripping. In this situation, the trip circuit monitor function will not be available.
Page 205 Figure 41-3. TCM with Other Devices Trip Circuit Monitor (52TCM) Enable/Disable Jumper Note A BE1-11m in a J type case is delivered with the trip circuit monitor enabled (TCM jumper connected). Read the following paragraphs before placing the BE1-11m in service.
Page 206 Purpose Alarm Output True when voltage is not detected in the trip circuit Operational Settings Trip circuit monitor element operational settings are configured on the Trip Circuit Monitor (52TCM) settings screen (Figure 41-6) in BESTCOMSPlus. Trip Circuit Monitor (52TCM) BE1-11m...
Page 207 9424200996 41-5 Figure 41-6. Trip Circuit Monitor Settings Screen BE1-11m Trip Circuit Monitor (52TCM)
Page 208 41-6 9424200996 Trip Circuit Monitor (52TCM) BE1-11m...
Page 209: Fuse Loss (60Fl)
60FL Trip = (A * C * G * J * P) + (E * F * G * J) (See Table 42-1.) Reset Logic: 60FL Reset = H * /K */L (See Table 42-1.) Figure 42-1. Fuse Loss Element Logic BE1-11m Fuse Loss (60FL)
Page 210 Programmable Alarm The BE1-11m indicates an alarm condition when the 60FL element detects a fuse loss or loss of potential. The alarm appears on the front-panel display, web page interface, and on the Alarms metering screen in BESTCOMSPlus. Refer to the Alarms chapter for information on how to program alarms.
Page 211 60FL logic is true. (59X - V2 mode) Block Power/Power Factor All functions that use the power measurements are blocked when Elements the 60FL logic is true. (32 and 55) Ignore Breaker Status When enabled, breaker status is ignored. BE1-11m Fuse Loss (60FL)
Page 212 42-4 9424200996 Fuse Loss (60FL) BE1-11m...
Page 213: Bestnet™Plus
43-1 43 • BESTnet™Plus BE1-11m Motor Protection Systems with an Ethernet port have a web page interface that can be used to view BE1-11m status, real-time data, demand data, faults, sequence of events, and power quality. Refer to the Communication chapter for information about configuring the BE1-11m to communicate through the Ethernet port.
Page 214 43-2 9424200996 Figure 43-3. Real Time Data Page Demand Data Figure 43-4 illustrates the Demand Data page. Present and peak demand values are shown on this page. BESTnet™Plus BE1-11m...
Page 215 9424200996 43-3 Figure 43-4. Demand Data Page Faults Fault Summary Figure 43-5 illustrates the Fault Summary page. To view fault details and download oscillography files, click on a fault in the fault summary list. BE1-11m BESTnet™Plus...
Page 216 43-4 9424200996 Figure 43-5. Fault Summary Page Fault Details Figure 43-6 illustrates the Fault Details page. Use the buttons to download oscillography files. Figure 43-6. Fault Details Page BESTnet™Plus BE1-11m...
Page 217 The view can be customized by clicking on View New, View Protection, View Alarms, or View Targets. A selected subset of event data can be downloaded as a *.csv (comma- separated values) file. Figure 43-7. Sequence of Events Summary Page Power Quality Figure 43-8 illustrates the Power Quality page. BE1-11m BESTnet™Plus...
Page 218 43-6 9424200996 Figure 43-8. Power Quality Page BESTnet™Plus BE1-11m...
Page 219: Mounting
44-1 44 • Mounting BE1-11m protection systems are supplied in a non-drawout, S1 size case (J option) that fits in a standard S1 case opening. J case terminal strips are removable via two 7/64” hex screws. Extra terminal strip kits (Figure 44-1) are available as part number 9424226100.
Page 220 Relay Minor Major Power Trouble Alarm Alarm Trip Indicator 1 Indicator 2 Indicator 3 9.12 [231.64] Indicator 4 Indicator 5 Reset Edit Indicator 6 Select Operate Control Control Indicator 7 Switch Switch P0072-74 Figure 44-2. Case Front Dimensions Mounting BE1-11m...
Page 221 9424200996 44-3 Figure 44-3. Case Side Dimensions BE1-11m Mounting...
Page 222 0.245 (16.6) (16.6) (6.2) 2.84 (72.1) Outer Edge of Cover 8.25 (209.6) Cut-Out 8.63 (219.1) 4.31 4.13 (109.5) (104.8) P0072-13 0.245 3.03 (77.0) (6.2) 6.06 (154.0) 0.25 (6.35) diameter, 4 places Figure 44-4. Case Cutout and Drilling Dimensions Mounting BE1-11m...
Page 223 9424200996 44-5 An adapter plate to mount a J case in a GE S2 or ABB FT-21 cutout is shown in Figure 44-5. Order Basler part number 9108551021. Figure 44-5. Adapter Plate (Basler P/N: 9108551021) BE1-11m Mounting...
Page 224 44-6 9424200996 An adapter plate to mount a J case in a ABB FT-32/FT-32 cutout is shown in Figure 44-6. Order Basler part number 9108551022. Figure 44-6. Adapter Plate (Basler P/N: 9108551022) Mounting BE1-11m...
Page 225 9424200996 44-7 An adapter plate to mount a J case in a GE M1/M2 cutout or Basler M1 cutout is shown in Figure 44-7. Order Basler part number 9108551029. Figure 44-7. Adapter Plate for Basler M1, GE M1, and GE M2 Opening...
Page 226 44-8 9424200996 A J case retrofit mounting plate for the Multilin 469 consists of two parts. See Figure 44-8 and Figure 44-9. Order Basler part number 9424200073. Figure 44-8. Retrofit Mounting Plate (Basler P/N: 9424200073) – Part 1 Mounting BE1-11m...
Page 227 9424200996 44-9 Figure 44-9. Retrofit Mounting Plate (Basler P/N: 9424200073) – Part 2 BE1-11m Mounting...
Page 228 44-10 9424200996 A J case retrofit mounting plate for a non-drawout Multilin 269/369 is shown in Figure 44-10. Order Basler part number 9424200074. Figure 44-10. Retrofit Mounting Plate (Basler P/N: 9424200074) Mounting BE1-11m...
Page 229 9424200996 44-11 A J case retrofit mounting plate for a drawout Multilin 269 is shown in Figure 44-11. Order Basler part number 9424200075. Figure 44-11. Retrofit Mounting Plate (Basler P/N: 9424200075) BE1-11m Mounting...
Page 230 9424200996 A pivoting projection-mounting kit for a J case is shown in Figure X. When installed, this kit provides rear access to connections by allowing the BE1-11m to swing left or right. Order Basler part number 9424226101. Figure 44-12. Pivoting Projection-Mounting Kit (Basler P/N: 9424226101)
Page 231: Terminals And Connectors
Connections to the BE1-11m are dependent on the application and logic scheme selected by the user. As a result, some BE1-11m inputs and outputs may not be used for a given application. Before energizing a BE1-11m, make sure the connections match the options associated with the model and style number found on the BE1-11m nameplate.
Page 232 OUT 6 I A2 I B2 I C2 I G2 OUT 1 OUT 2 OUT 3 OUT 4 OUT 5 ALARM P0061-46 Figure 45-3. Rear Panel Connections with Fiber Optic Ethernet (7 Inputs and 8 Outputs Option) Terminals and Connectors BE1-11m...
Page 233 CT Polarity CT polarity is critical to the proper operation of the BE1-11m. The following provides fundamental information on CT polarity and protective systems. By ANSI convention, current transformer polarity will face away from the protected winding of a transformer, motor, generator, or reactor, and away from the contacts in a circuit breaker.
Page 234 45-4 9424200996 Orientation of CT polarity relative to primary current flow establishes the secondary CT terminal that should be connected to polarity of the BE1-11m. Figure 45-5. Standard CT Polarity Figure 45-6. Current Transformer Action Terminals and Connectors BE1-11m...
Page 235 9424200996 45-5 Figure 45-7. Example of Reversed CT Polarity BE1-11m Terminals and Connectors...
Page 236 45-6 9424200996 Terminals and Connectors BE1-11m...
Page 237: Typical Connections
9424200996 46-1 46 • Typical Connections Typical external dc connections for the BE1-11m are shown in Figure 46-1. EMERGENCY BLOCK START USED USED USED USED CONTROL POWER POWER BE1-11m SUPPLY CONTROL POWER BLOCK MINOR MAJOR TRIP LOCKOUT START ALARM START...
Page 238 46-2 9424200996 Typical external ac connections for three-phase are shown in Figure 46-2. Figure 46-2. Typical AC Connections for Three-Phase Current Typical Connections BE1-11m...
Page 239 9424200996 46-3 Three-phase voltage sensing, alternate VT inputs are shown in Figure 46-3. Figure 46-3. Three-Phase Voltage Sensing, Alternate VT Inputs BE1-11m Typical Connections...
Page 240 46-4 9424200996 Single-phase current sensing connections are shown in Figure 46-4. Figure 46-4. Single-Phase Current Sensing Connections Note Some elements may not function properly in certain modes when using single-phase current sensing. Typical Connections BE1-11m...
Page 241: Bestcomsplus® Software
BE1-11m is brought into BESTCOMSPlus by downloading settings and logic from the BE1-11m or by selecting application type “M” on the Style Number screen. This gives the user the option of developing a custom setting file by modifying the default logic scheme or by building a unique scheme from scratch.
Page 242 Basler Electric for an activation key and entering the key into BESTCOMSPlus. Manual activation is useful if you want to create a settings file prior to receiving your BE1-11m. Note that if a BE1-11m is not connected, you will not be able to configure certain Ethernet settings. Ethernet settings can be changed only when an active USB or Ethernet connection is present.
Page 243 Windows will notify you when installation is complete. Connect a USB cable between the PC and your BE1-11m. Apply operating power (per style chart in the Introduction chapter) to the BE1-11m at rear terminals A6 and A7. Wait until the boot sequence is complete.
Page 244 When initially running the BE1-11 plugin, the Activate Device Plugin pop-up appears. You must contact Basler Electric for an activation key before you can activate the BE1-11 plugin. Click the Email button to request an activation key from Basler Electric. Once you receive your activation key, click the Activate button.
Page 245 Select BE1-11 from the Device pull-down menu. Enter your Email Address and Activation Key provided by Basler Electric. If you received an email containing the Activation Key, you can select all of the text in the email and copy it to the Windows clipboard using normal Windows techniques as shown in Figure 47-8.
Page 246 Device” error message, verify that communications are configured properly. Only one Ethernet connection is allowed at one time. Download all settings and logic from the BE1-11m by selecting Download Settings and Logic from the Communication pull-down menu. BESTCOMSPlus will read all settings and logic from the BE1-11m and load them into BESTCOMSPlus memory.
Page 247 Save settings as a *.csv file Print Print, export, or send a settings file Properties View properties of a settings file History View history of a settings file Recent Files Open a previously opened file Close BESTCOMSPlus program Exit BE1-11m BESTCOMSPlus® Software...
Page 248 (Available only when the device contains default settings. No password required.) Configure Ethernet settings Upload Device Files Upload firmware to the device Upgrade Style Number Upload a style upgrade file supplied by Basler Electric Tools Select BESTCOMSPlus language Select Language Activate Device Activate the BE1-11 plugin Set File Password...
Page 249 Opens a saved settings file. Opens the BE1-11 Connection screen which enables you to connect to the BE1-11m via USB or Ethernet. This button appears only when a BE1-11m is not connected. Used to disconnect a connected BE1-11m. This button appears only when a BE1-11m is connected.
Page 250 Clicking the hyperlinked setting name takes you to the setting screen with the offending setting. Right-clicking the hyperlinked setting name will restore the setting to its default value. BESTCOMSPlus® Software BE1-11m...
Page 251 Upload Settings and/or Logic to Device To upload a settings file to the BE1-11m, open the file or create a new file through BESTCOMSPlus. Then pull down the Communication menu and select Upload Settings and Logic to Device. If you want to upload operational settings without logic, select Upload Settings to Device.
Page 252 DNP/Modbus options, or DNP/Modbus differences. If a settings file based on an older version of firmware was uploaded into the BE1-11m, the BE1-11m could contain additional settings that did not exist when the original settings file was created. The settings compare function detects these differences and displays them when the Include Missing box is checked.
Page 253 The first export is performed immediately after clicking the Start button. Click the Filter button to select specific metering screens. Figure 47-16 illustrates the Auto Export Metering screen. Figure 47-16. Auto Export Metering BE1-11m BESTCOMSPlus® Software...
Page 254 Ongoing BE1-11m functionality enhancements may make future BE1-11m firmware updates desirable. Enhancements to BE1-11m firmware typically coincide with enhancements to the BE1-11 plugin for BESTCOMSPlus. When a BE1-11m is updated with the latest version of firmware, the latest version of BESTCOMSPlus should also be obtained.
Page 255: Bestlogic™Plus
Basler Electric's BE1-11m Motor Protection System. Each BE1-11m has multiple, self-contained logic blocks that have all of the inputs and outputs of its discrete component counterpart. Each independent logic block interacts with control inputs and hardware outputs based on logic variables defined with BESTlogicPlus.
Page 256 CT Circuit 1 and CT when ac current is greater than 5% of nominal as Circuit 2 Current determined by the fast current detector. Detected Status Inputs The Target Reset status input goes momentarily high Target Reset when the targets are cleared. BESTlogic™Plus BE1-11m...
Page 257 Blocks. Double-click or right-click on a gate to change the type. Table 48-2 lists the names and descriptions of the objects in the Components group. Table 48-2. Components Group, Names and Descriptions Name Description Symbol Logic Gates Input Output NAND Input Output Input Output BE1-11m BESTlogic™Plus...
Page 258 0 to logic 1. Double-click or right-click on the logic trigger to change the type. Falling Edge The output of a falling edge trigger pulses true when the input goes from logic 1 to logic 0. Double-click or right-click on the logic trigger to change the type. BESTlogic™Plus BE1-11m...
Page 259 Table 48-3. Elements Group, Names and Descriptions Name Description Symbol Protection 27P-x Phase Undervoltage Protection. Refer to the Phase Undervoltage (27P) Protection chapter. 32-x Power Protection. Refer to the Power (32) Protection chapter. Instantaneous Undercurrent Protection. Refer to the Instantaneous Undercurrent (37) Protection chapter. BE1-11m BESTlogic™Plus...
Page 260 Refer to the Thermal Curve (49TC) Protection chapter. 50-x Instantaneous Overcurrent Protection. Refer to the Instantaneous Overcurrent (50) Protection chapter. 50BF Breaker Fail Protection. Refer to the Breaker Fail (50BF) Protection chapter. 51-x Inverse Overcurrent Protection. Refer to the Inverse Overcurrent (51) Protection chapter. BESTlogic™Plus BE1-11m...
Page 261 Refer to the Auxiliary Overvoltage (59X) Protection chapter. 81-x Frequency Protection. Refer to the Frequency (81) Protection chapter. Current Differential Protection. Refer to the Current Differential (87) Protection chapter. ANALOG-x Analog Input 1 through 8. Refer to the RTD Module chapter. BE1-11m BESTlogic™Plus...
Page 262 Emergency Start – This input is used to select ○ emergency mode. When performing an emergency start, the Max Emergency Thermal Capacity setting determines the maximum thermal capacity allowed. An emergency start is requested when the Emergency input of the BESTlogic™Plus BE1-11m...
Page 263 ● Running – This output is true when the motor is ○ running. The Motor Start Detection setting controls how the BE1-11m identifies when a motor is running. Current Only From a normal motor start - The motor is ■...
Page 264 The Starting output is always false when Motor Start Detection is configured for Contacts Only. From a stopped condition, the BE1-11m goes directly to the Running state if the Motor is Started logic input of the Motor Status logic block becomes true.
Page 265 Figure 48-2. Motor Translations from a Normal Start Figure 48-3. Motor Transitions from a Low-Current Start SETTINGGROUP Setting Group Control. Refer to the Setting Groups chapter. Reporting and Alarms 52TCM Trip Circuit Monitor. Refer to the Trip Circuit Monitor (52TCM) chapter. BE1-11m BESTlogic™Plus...
Page 266 Programmable Logic tree branch and select Logic Labels. MAJORALMRST Major Alarm Reset. The Reset input is positive-edge triggered. Refer to the Alarms chapter. MINORALMRST Minor Alarm Reset. The Reset input is positive-edge triggered. Refer to the Alarms chapter. BESTlogic™Plus BE1-11m...
Page 267 Logic Schemes A logic scheme is a group of logic variables that defines the operation of a BE1-11m. Each logic scheme is given a unique name. This gives you the ability to select a specific scheme and be confident that the selected scheme is in operation.
Page 268 Always remove the BE1-11m from service prior to changing or modifying the active logic scheme. Attempting to modify a logic scheme while the BE1-11m is in service could generate unexpected or unwanted outputs. Modifying a logic scheme in BESTCOMSPlus does not automatically make that scheme active in the BE1-11m.
Page 269 9424200996 48-15 Figure 48-4. Logic Page 1 for Default Logic BE1-11m BESTlogic™Plus...
Page 270 48-16 9424200996 Logic Page 2 Figure 48-5 illustrates the default logic on Logic Page 2 in BESTlogicPlus. Figure 48-5. Logic Page 2 for Default Logic BESTlogic™Plus BE1-11m...
Page 271 9424200996 48-17 Logic Page 3 Figure 48-6 illustrates the default logic on Logic Page 3 in BESTlogicPlus. Figure 48-6. Logic Page 3 for Default Logic BE1-11m BESTlogic™Plus...
Page 272 48-18 9424200996 Logic Page 4 Figure 48-7 illustrates the default logic on Logic Page 4 in BESTlogicPlus. Figure 48-7. Logic Page 4 for Default Logic BESTlogic™Plus BE1-11m...
Page 273 Retrieving a Logic Scheme from the BE1-11m To retrieve settings from the BE1-11m, the BE1-11m must be connected to a computer through a communications port. Once the necessary connections are made, settings can be downloaded from the BE1-11m by selecting Download Settings and Logic from Device on the Communication pull-down menu.
Page 274 48-20 9424200996 BE1-11m by selecting Upload Settings and Logic to Device or Upload Logic to Device on the Communication pull-down menu. Programming BESTlogic™Plus BESTCOMSPlus is used to program BESTlogicPlus. Using BESTCOMSPlus is analogous to physically attaching wire between discrete BE1-11m terminals. To program BESTlogicPlus, use the Settings Explorer within BESTCOMSPlus to open the BESTlogicPlus Programmable Logic tree branch as shown in Figure 48-1.
Page 275 Logic 0 is red and Logic 1 is green. Using your mouse, double-click on a logic element to change its state. An example of the offline logic simulator is shown in Figure 48-10. Output 1 is Logic 0 (red) when Input 1 is Logic 0 (red) and Fixed 1 is Logic 1 (green). BE1-11m BESTlogic™Plus...
Page 276 After programming BESTlogicPlus settings, click on the Save button to save the settings to memory. Before the new BESTlogicPlus settings can be uploaded to the BE1-11m, you must select Save from the File pull-down menu located at the top of the BESTCOMSPlus main shell. This step will save both the BESTlogicPlus settings and the operating settings to a file.
Page 277 Logic Document from the Protection drop-down button. A password is optional. Uploading a BESTlogic™Plus File To upload a BESTlogicPlus file to the BE1-11m, you must first open the file through BESTCOMSPlus or create the file using BESTCOMSPlus. Then pull down the Communication menu and select Upload Logic to Device.
Page 278 IN2 is true. OUT1 is true when either the 51-1 or 51-2 is in a trip condition. OUT2 is true when either the 51-1 or 51-2 is in a pickup condition. The fault trigger logic block ensures that faults are recorded. Figure 48-13. Example 2 - Inverse Overcurrent Logic Diagram BESTlogic™Plus BE1-11m...
Page 279: Communication
Available ports for communicating with the BE1-11m include USB, RS-485, and Ethernet. DHCP (Dynamic Host Configuration Protocol) is enabled by default allowing the BE1-11m to send a broadcast request for configuration information. The DHCP server receives the request and responds with configuration information.
Page 280 , or DNP software. Additional Ethernet settings are illustrated in Figure 49-2. ® The Enable Web Pages box must be checked to enable viewing of BE1-11m web pages. Refer to the BESTnet™Plus chapter for more information on viewing web pages.
Page 281 Obtain the values for these options from the site administrator if the BE1-11m is intended to share the network with other devices. If the BE1-11m is operating on an isolated network, the IP address can be chosen from one of the following ranges as listed in IETF publication RFC 1918, Address Allocation for Private Networks.
Page 282 Click the Send to Device button located on the Configure Ethernet Port screen. A confirmation pop-up will indicate that the BE1-11m will reboot after settings are sent. Click the Yes button to allow settings to be sent. After the unit has rebooted and the power-up sequence is complete, the BE1-11m is ready to be used on a network.
Page 283 The RS-485 communication port is located on the rear panel and provides communication with a PC operating Modbus or DNP software. The Baud Rate is the rate at which the BE1-11m will communicate. ® Bits Per Character can be 8 Bits or 7 Bits. Parity can be None, Odd, or Even. Stop Bits can be set to 1 or 2.
Page 284 Figure 49-7. DNP Settings, Miscellaneous Settings Screen Unsolicited Response Support The Unsolicited Response Support screen (Figure 49-8) configures BE1-11m unsolicited responses over a DNP network and selects the classes of events that trigger the responses. Figure 49-8. DNP Settings, Unsolicited Response Support Screen...
Page 285 DNP Binary Points Mapping Binary points can be mapped to any of the available binary user map registers. Use the Settings Explorer in BESTCOMSPlus to open the Communications, DNP, DNP Binary Points Mapping tree branch as shown in Figure 49-11. BE1-11m Communication...
Page 286 Figure 49-11. DNP Binary Points Mapping Screen DNP Analog Input and Output Scaling Individual BE1-11m analog inputs and outputs can be scaled to maintain value readability and resolution. Analog input point scaling is adjusted on the DNP Analog Input Scaling screen (shown in Figure 49-12) and analog output point scaling is adjusted on the DNP Analog Output Scaling screen.
Page 287 Settings for Modbus are made by using the Settings Explorer to open the Communications, Modbus tree branch. Settings can be made for Modbus mapping. A list of Modbus registers can be found in Basler Electric publication 9424200890, Modbus Protocol Instruction Manual.
Page 288 49-10 9424200996 Figure 49-14. Modbus Mapping Screen Communication BE1-11m...
Page 289: Security
9424200996 50-1 50 • Security Multiple levels of BE1-11m security give personnel the level of access appropriate for the tasks they routinely perform while securing critical settings from unauthorized access. Note The BE1-11m does not support factory password reset in the field and will need to be returned to Basler Electric for service if all Admin passwords are lost or expired.
Page 290 Note BE1-11m firmware versions from 2.09.00 and beyond support at least this set of characters in passwords: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z...
Page 291 Setting the Secured Access Level to None on any port will make that port unusable. If the Secured Access Level is set to None on all available ports, the BE1-11m must be returned to Basler Electric for repair. Click the Save Port button to save to the settings to BESTCOMSPlus memory.
Page 292 HMI Navigation Path: Not available through the front panel The BE1-11m records information about user logins including the port used to log in, the access level granted, the type of action performed, and the time of logout and creates security logs. A log will also be triggered when a user attempts to log in, but fails due to an invalid username or incorrect password.
Page 293 BE1-11m. In TLS 1.2, a certificate is used to verify the authenticity of the server (BE1-11m). The supported certificate formats are Standard PEM, DER/Binary, and PFX (PKCS#12). The BE1-11m supports RSA encryption up to 8192 bit keys.
Page 294 To upload a security certificate, click on the Communication drop-down menu in BESTCOMSPlus and select Certificate > Upload Certificate to Device. Then, select the certificate type, browse for the certificate file, and click the Upload button. See Figure 50-7. Security BE1-11m...
Page 295 If you upload a certificate chain to the BE1-11m with a root trusted by Windows, it will automatically authenticate and connect. If it is not trusted, there is a second option to manually accept the certificate. All information about the certificate is displayed.
Page 296 A lock symbol in the lower status bar of BESTCOMSPlus means the connection is secure. Remove Accepted Device To remove a previously accepted device, click on the Tools drop-down menu in BESTCOMSPlus and select Accepted Certificates. See Figure 50-9. Figure 50-9. Accepted Devices Security BE1-11m...
Page 297: Timekeeping
The BE1-11m provides a real-time clock with capacitor backup that is capable of operating the clock for up to 24 hours after power is removed from the BE1-11m. As the capacitor nears depletion, an internal backup battery takes over and maintains timekeeping. The backup battery is standard and will maintain the clock for more than five years depending on conditions.
Page 298 Note that the IRIG time code signal received from older IRIG receivers does not contain year information. If this is the case, it will be necessary to enter the date manually. Year information is stored in nonvolatile memory so that when Timekeeping BE1-11m...
Page 299 Backup Battery for the Real-Time Clock The backup battery for the real time clock is a standard feature of the BE1-11m. A battery is used to maintain clock function during loss of power supply voltage. In mobile substation and line-powered applications, the voltage that supplies the BE1-11m power supply may be disconnected for extended periods (weeks, months) between uses.
Page 300 Failure to replace the battery with Basler Electric P/N 38526 may void the warranty. Battery Replacement Procedure Battery access is located behind the front cover of the BE1-11m on the front-panel circuit board. See Figure 51-3. Step 1: Remove the BE1-11m from service.
Page 301 9424200996 51-5 Figure 51-3. Front-Panel Circuit Board, Backup Battery Location BE1-11m Timekeeping...
Page 302 Power Trouble Alarm Alarm Trip Indicator 1 Indicator 2 Indicator 3 Indicator 4 Indicator 5 Edit Reset Indicator 6 Select Operate Control Control Indicator 7 Switch Switch (Press equally and firmly.) P0072-79 Figure 51-4. Re-Attaching the Front Cover Timekeeping BE1-11m...
Page 303: Device Information
9424200996 52-1 52 • Device Information BE1-11m identification labels, firmware version, serial number, and style number are found on the Device Info screen in BESTCOMSPlus®. Style Number The model number, together with the style number, describes the options included in a specific device and appears on labels located on the front panel and inside the case.
Page 304 BE1-11m protection systems have three identification fields: Device ID, Station ID, and User ID. These fields are used in the header information lines of the Fault Reports, Oscillograph Records, and Sequence of Events Records.
Page 305 Figure 52-3. Basler Electric Device Package Uploader Use the Open button to browse for the device file that you obtained from Basler Electric. Place a checkmark next to the file you want to upload. Click the Upload button. The BE1-11m will reboot automatically after the firmware upload is complete.
Page 306 52-4 9424200996 Device Information BE1-11m...
Page 307: Configuration
BE1-11m inputs consist of three-phase current inputs and ground, three-phase voltage inputs, and one auxiliary voltage input. Either one or two sets of CTs are provided in the BE1-11m depending on the style number. Refer to the style chart for more information. Each input is isolated and terminated at separate terminal blocks.
Page 308 Power system frequency is monitored on the A-phase voltage input or the AB voltage input when in three- wire mode. When the applied voltage is greater than 10 volts, the BE1-11m measures the frequency. The measured frequency is used by the 81 function and applies to all measurements and calculations.
Page 309 AN Sensing: ⋅ ∠ ° ⋅ ∠ − ° BN Sensing: ⋅ ∠ − ° ⋅ ∠ ° CN Sensing: ⋅ ∠ ° ⋅ ∠ − ° AB Sensing: ⋅ ∠ ° ⋅ ∠ ° ⋅ ∠ − ° BE1-11m Configuration...
Page 310 Motor Configuration Settings The BE1-11m requires information about the power system to provide metering, fault reporting, and protective relaying. Power system settings are configured on the Motor Configuration settings screen in BESTCOMSPlus®. A summary of the settings appear at the end of this section.
Page 311 Started logic input of the Motor Status logic block becomes true. Contacts Only The BE1-11m recognizes the motor is running when the Motor is Started logic input of the Motor Status logic block becomes true. The motor is deemed running because current is not considered and the transition from the starting to running states cannot be detected.
Page 312 HMI Navigation Path: Settings Explorer, System Parameters, Sensing Transformers CT Setup The BE1-11m requires setting information on the CT ratios. This setting is used by the metering and fault reporting functions to display measured quantities in primary units. Unbalanced Calculation Method Unbalanced overcurrent protection is provided by the 50 and 51 elements.
Page 313 BESTCOMSPlus. Figure 53-2. Sensing Transformers Settings Screen Display Units The Display Units screen is shown in Figure 53-3. System Units This setting configures the BE1-11m to display and report temperature in English or metric units of measure. BE1-11m Configuration...
Page 314 53-8 9424200996 Figure 53-3. Display Units Screen Configuration BE1-11m...
Page 315: Introduction To Testing
Because this is a numerical BE1-11m whose characteristics are defined by software, Basler Electric does not require the user to test each operational setting in the BE1-11m. Successful completion of the Acceptance Test verifies proper response of the protection system’s input and output circuits as well as its response to all external sensing input quantities (voltage, current, frequency).
Page 316 Sequence of Events Recorder (SER) Reports, and Oscillographic Records yield more detail. Each time a system disturbance occurs in or around this BE1-11m zone of protection, it is a test of the BE1-11m performance during the fault. If a questionable operation results in the need for troubleshooting, you have several ways in which to troubleshoot the BE1-11m, the installation, and overall application.
Page 317 Trouble LED on the front panel turns ON, all of the output relays are disabled, internal logic point ALMREL is set, and the BE1-11m is taken off line. For more information on self-test diagnostics and relay trouble alarms, see the Contact Inputs and Outputs chapter.
Page 318 54-4 9424200996 Introduction to Testing BE1-11m...
Page 319: Acceptance Testing
The following steps test each function of the BE1-11m to validate that it was manufactured properly and that no degradation of performance occurred because of shipping.
Page 320 Connect a suitable IRIG source to BE1-11m terminals A1 (+) and A2 (–). Step 2: Upon receiving the IRIG signal, the BE1-11m clock will be updated with the current time, day, and month. Verify this on the Metering > Status > Real Time Clock screen on the front-panel display.
Page 321 To verify 3I0, I1, and I2, connect an ac current source to Terminals D1 and D2. Step 2: Apply the appropriate current values in Table 55-3 to the BE1-11m. Measured 3I0 should correspond to values in Table 55-3 while I1 and I2 should be 1/3 the applied value ±1.5% (For example, if the applied value equals 2 amps, I2 = 2/3 = 0.667 amps ±1.5% or ±0.01 amps.)
Page 322 F1 and F8. Step 4: Apply the appropriate current values in Table 55-3 to the BE1-11m. Verify current measuring accuracy on the Analog Metering, Current, CT Circuit 2, Secondary Current screen inside the Metering Explorer of BESTCOMSPlus. IA2, IB2, IC2, and IG2 current measurements can also be verified on the Metering >...
Page 323 1 amp values, divide by 5. Step 2: Apply 100 volts at angle 0 degrees and 5 amps to the BE1-11m. Verify the accuracy of the power reading by using the Metering Explorer in BESTCOMSPlus to open the Analog Metering, Power screen.
Page 324 55-6 9424200996 Step 3: Connect BE1-11m Terminals C17 (polarity) and C18 to a 180 Hz (third harmonic) ac voltage source. Step 4: Apply the voltage values listed in Table 55-5 and verify voltage-measuring accuracy by using the Metering Explorer in BESTCOMSPlus to open the Analog Metering, Voltage, Secondary Voltage screen.
Page 325: Commissioning Testing
BE1-11m to isolate testing of individual functions. Always remember to enable these functions before placing the BE1-11m in service. To assist you in the commissioning testing of this BE1-11m, you can refer to the related reporting and alarms chapters. Please refer to the related protection and control chapters of the instruction manual for assistance on any particular functions of the BE1-11m.
Page 326 Metering > Control > Virtual Switches screen of the front-panel display. Step 3: Obtain write access to the BE1-11m. For each virtual selector switch enabled in your logic scheme, change the switch position by following the procedure described in the Virtual Control Switches (43) chapter.
Page 327 Use of the fault and event recording capability of the BE1-11m will aid in the verification of the protection and control logic. Use the Metering Explorer in BESTCOMSPlus to open the Reports, Sequence of Events screen.
Page 328 HMI Navigation Path: Metering Explorer, Reports, Breaker Report Chapter Reference: Breaker Monitoring If the Breaker Monitoring features of the BE1-11m are enabled, use the following to reset the counter and the duty registers to “0” or a pre-existing value: Relay Trouble Alarms...
Page 329 Polarity of energy readings to verify polarity of VT and CT connections. • I2 and V2 to verify proper phase-sequence connections. • Anything else that the user may find helpful. Save this record along with the status record mentioned earlier for future reference. BE1-11m Commissioning Testing...
Page 330 56-6 9424200996 Commissioning Testing BE1-11m...
Page 331: Periodic Testing
Verify that the power system analog parameters used by the protection and control functions are measured accurately. Settings Verification Verification of the BE1-11m digital I/O connections can be accomplished in different ways. The method used depends on your preferences and practices. You may choose to use either of the following two methods: •...
Page 332 Functional testing is NOT required for this device. It is necessary only when performing a comprehensive assessment to determine suitability for an application. Periodic Testing BE1-11m...
Page 333: Phase Undervoltage (27P) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 334 Timing Verification Step 1: Use BESTCOMSPlus to open the Protection, Voltage, Undervoltage (27P-1) screen and send the first row of test settings in Table 58-3 to the BE1-11m for settings group 0. Table 58-3. Timing Test Settings Pickup Setting Time Delay...
Page 335 Step Time Delay Setting Actual Timing High Pass/Fail 2,000 ms 1,968 ms 2,032 ms P / F 5,000 ms 4,968 ms 5,032 ms P / F 10,000 ms 9,950 ms 10,050 ms P / F BE1-11m Phase Undervoltage (27P) Test...
Page 336 58-4 9424200996 Phase Undervoltage (27P) Test BE1-11m...
Page 337: Phase Overvoltage (59P) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 338 Timing Verification Step 1: Use BESTCOMSPlus to open the Protection, Voltage, Overvoltage (59P-1) screen and send the first row of test settings in Table 59-3 to the BE1-11m for settings group 0. Table 59-3. Timing Test Settings Pickup Setting Time Delay...
Page 339 Step Time Delay Setting Actual Timing High Pass/Fail 2,000 ms 1,968 ms 2,032 ms P / F 5,000 ms 4,968 ms 5,032 ms P / F 10,000 ms 9,950 ms 10,050 ms P / F BE1-11m Phase Overvoltage (59P) Test...
Page 340 59-4 9424200996 Phase Overvoltage (59P) Test BE1-11m...
Page 341: Auxiliary Overvoltage (59X) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 342 Timing Verification (3V0 Mode) Step 1: Use BESTCOMSPlus to open the Protection, Voltage, Overvoltage (59X-1) screen and send the first row of test settings in Table 60-3 to the BE1-11m for settings group 0. Table 60-3. Timing Test Settings (3V0 Mode) Pickup Setting...
Page 343 (Optional.) Repeat steps 1 through 6 for 59X-2, 59X-3, and 59X-4. Pickup Verification (V1 Mode) Step 1: Use BESTCOMSPlus to send the operational settings in Table 60-4 to the BE1-11m. Reset all targets. Table 60-4. Operational Settings (V1 Mode) Setting...
Page 344 For example, to determine the pickup voltage value required for a BE1-11m with a pickup setting of 82, it would require 82 times 3 or 246 volts of input voltage.
Page 345 For example, to determine the pickup voltage value required for a BE1-11m with a pickup setting of 82, it would require 82 times 3 or 246 volts of input voltage.
Page 346 Timing Verification (V2 Mode) Step 1: Use BESTCOMSPlus to open the Protection, Voltage, Overvoltage (59X-1) screen and send the first row of test settings in Table 60-9 to the BE1-11m for settings group 0. Table 60-9. Timing Test Settings (V2 Mode) Pickup Setting...
Page 347 Step 1: Use BESTCOMSPlus to open the Protection, Voltage, Overvoltage (59X-1) screen and send the first row of test settings in Table 60-12 to the BE1-11m for settings group 0. Table 60-12. Timing Test Settings (Vx Fundamental Mode) Pickup Setting...
Page 348 (Optional.) Repeat steps 1 through 6 for 59X-2. Pickup Verification (Vx Third Harmonic Mode) Step 1: Use BESTCOMSPlus to send the operational settings in Table 60-13 to the BE1-11m. Reset all targets. Table 60-13. Operational Settings (Vx Third Harmonic Mode)
Page 349 Step 1: Use BESTCOMSPlus to open the Protection, Voltage, Overvoltage (59X-1) screen and send the first row of test settings in Table 60-15 to the BE1-11m for settings group 0. Table 60-15. Timing Test Settings (Vx Third Harmonic Mode) Pickup Setting...
Page 350 75.6 25.7 77.1 P / F * Dropout range is calculated from the pickup setting and may need adjusted based on actual pickup. Timing Verification (V2 Mode) Time Delay Range = 50 to 600,000 ms Auxiliary Overvoltage (59X) Test BE1-11m...
Page 351 Step Time Delay Setting Actual Timing High Pass/Fail 2,000 ms 1,968 ms 2,032 ms P / F 5,000 ms 4,968 ms 5,032 ms P / F 10,000 ms 9,950 ms 10,050 ms P / F BE1-11m Auxiliary Overvoltage (59X) Test...
Page 352 60-12 9424200996 Auxiliary Overvoltage (59X) Test BE1-11m...
Page 353: Frequency (81) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 354 Step 9: (Optional.) Repeat steps 1 through 8 for 81-2, 81-3, and 81-4. Underfrequency Pickup Verification Step 1: Use BESTCOMSPlus to send the operational settings in Table 61-3 to the BE1-11m. Reset all targets. Table 61-3. Operational Settings (Underfrequency) Setting...
Page 355 Step 1: Use BESTCOMSPlus to open the Protection, Frequency, Frequency (81-1) screen and send the first row of test settings in Table 61-5 to the BE1-11m. Commands entered in Table 61-3 should be retained for this test. Table 61-5. Timing Test Settings...
Page 356 (Optional.) Repeat steps 1 through 6 for 81-2, 81-3, and 81-4. Pickup Verification (ROC Frequency) Step 1: Use BESTCOMSPlus to send the operational settings in Table 61-6 to the BE1-11m. Reset all targets. Table 61-6. Operational Settings (ROC Frequency) BESTCOMSPlus...
Page 357 Set the frequency range of the sweep (ramp) for 55.0 to 64.7 Hz. This equates to a ROC of 9.7 Hz/sec (3.0% below the 10.0 Hz/sec pickup setting). Step 7: Initiate the sweep (ramp) which simultaneously applies voltage to the BE1-11m and note that there is no operation of OUT2. Step 8: Increase the rate of change in increments of 1% (9.8, 9.9 Hz/sec) up to 9.9 Hz/sec and 0.5%...
Page 358 20% of nominal setting equates to a negative-sequence voltage of 24 volts. Step 4: Set the rate of change (sweep or ramp) for 3 Hz/s (BE1-11m set to trip at 2 Hz/sec), initiate the sweep, and note that OUT2 operates. While monitoring Metering of the BE1-11m, reduce the C- phase voltage to 55 volts and note the negative-sequence voltage.
Page 359 ROC Pickup Setting Range = 0.2 to 20 Hz/sec Accuracy = ±2% or ±0.1 Hz/sec, whichever is greater Step Setting Pickup High Pass/Fail 10 Hz/sec 9.8 Hz/sec 10.2 Hz/sec P / F 2 Hz/sec 1.9 Hz/sec 2.1 Hz/sec P / F BE1-11m Frequency (81) Test...
Page 360 61-8 9424200996 Frequency (81) Test BE1-11m...
Page 361: Instantaneous Undercurrent (37) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 362 Timing Verification Step 1: Use BESTCOMSPlus to open the Protection, Current, Instantaneous Undercurrent (37) screen and send the first row of test settings in Table 62-3 to the BE1-11m for settings group 0. Table 62-3. Timing Test Settings Pickup Setting Time Delay 0.5 A...
Page 363 Step Time Delay Setting Actual Timing High Pass/Fail 2000 ms 1942 ms 2058 ms P / F 5000 ms 4927 ms 5073 ms P / F 10000 ms 9902 ms 10098 ms P / F BE1-11m Instantaneous Undercurrent (37) Test...
Page 364 62-4 9424200996 Instantaneous Undercurrent (37) Test BE1-11m...
Page 365: Instantaneous Overcurrent (50) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 366 Timing Verification (Phase Mode) Step 1: Use BESTCOMSPlus to open the Protection, Current, Instantaneous Overcurrent (50-1) screen and send the first row of test settings in Table 63-3 to the BE1-11m for settings group 0. Step 2: Prepare to monitor the 50-1 timings. Timing accuracy is verified by measuring the elapsed time between a sensing current change and OUT1 closing.
Page 367 CTs. In step 3, replace D1 with F1, D2 with F2, etc. Pickup Verification (3I0 Mode) Step 1: Use BESTCOMSPlus to send the operational settings in Table 63-4 to the BE1-11m. Reset all targets. Table 63-4. Operational Settings (3I0 Mode)
Page 368 Timing Verification (3I0 Mode) Step 1: Use BESTCOMSPlus to open the Protection, Current, Instantaneous Overcurrent (50-1) screen and send the first row of test settings in Table 63-6 to the BE1-11m for settings group 0. Table 63-6. Timing Test Settings (3I0 Mode)
Page 369 Step 5: Connect a current source to terminals D1 and D2 (A-phase). For a single-phase input test, I2 = Ia / 3. Therefore, the BE1-11m should pick up at a value of three times the setting value when BE1-11m Instantaneous Overcurrent (50) Test...
Page 370 9424200996 applying only a single-phase input. For example, to determine the pickup current value required for a 1 A BE1-11m with a pickup setting of 0.1, it would require 0.1 times 3 or 0.3 amperes of input current. Step 6: Slowly increase the A-phase current until OUT2 closes and record the pickup.
Page 371 Step 3: Use BESTCOMSPlus to open the Protection, Current, Instantaneous Overcurrent (50-1) screen and send the low range test settings (minimum pickup setting) to the BE1-11m for your sensing input type in Table 63-11. Table 63-11. Pickup Test Settings (IG Mode)
Page 372 Timing Verification (IG Mode) Step 1: Use BESTCOMSPlus to open the Protection, Current, Instantaneous Overcurrent (50-1) screen and send the first row of test settings in Table 63-12 to the BE1-11m for settings group 0. Table 63-12. Timing Test Settings (IG Mode)
Page 373 0.1 to 30 A for 1A sensing Pickup Accuracy = ±3% or ±75 mA, whichever is greater for 5A sensing ±3% or ±15 mA, whichever is greater for 1A sensing Dropout should occur between 93-99% of the actual pickup value. BE1-11m Instantaneous Overcurrent (50) Test...
Page 374 0.99 A P / F 2.0 A (SEF) 1.95 A 2.05 A 1.86 A 1.98 A P / F * Dropout range is calculated from the pickup setting and may need adjusted based on actual pickup. Instantaneous Overcurrent (50) Test BE1-11m...
Page 375 Step Time Delay Setting Actual Timing High Pass/Fail 2,000 ms 1,942 ms 2,058 ms P / F 5,000 ms 4,927 ms 5,073 ms P / F 10,000 ms 9,902 ms 10,098 ms P / F BE1-11m Instantaneous Overcurrent (50) Test...
Page 376 63-12 9424200996 Instantaneous Overcurrent (50) Test BE1-11m...
Page 377: Breaker Fail (50Bf) Test
Refer to the Breaker Fail (50BF) Protection chapter for more information on this function. Functional Test Procedure The BE1-11m has two types of Breaker Failure Initiates, one being contact only initiate, and the other being current supervised BE1-11m trip initiate. The following tests are for Contact Only initiate.
Page 378 Breaker Failure Timer. This input is also used to start the test set timer and OUT1 of the BE1-11m is used to stop the test set timer. OUT2 should be monitored to verify operation of the re-trip circuit upon breaker failure initiate.
Page 379 1.05 times the pickup setting) after application of pickup current. Step 10: (Optional.) Raise 50-1 Pickup setting to 10 amps and apply nominal current to the BE1-11m. Note that OUT1 and OUT2 do not operate. No initiate prevents operation of the breaker failure function, blocking the breaker fail logic.
Page 380 Step 12: Connect a current source to terminals D1 and D2 (A-phase). Apply nominal current to the BE1-11m and note operation of OUT3 and no operation of OUT1 and OUT2. To verify control time, apply nominal current and start the test set timer. Use OUT3 to stop the timer. Record the result.
Page 381: Inverse Overcurrent (51) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 382 Step 3: Use BESTCOMSPlus to open the Protection, Current, Inverse Overcurrent (51-1) screen and send the low range test settings (minimum pickup setting) to the BE1-11m for your sensing input type in Table 65-2. Table 65-2. Pickup Test Settings (Phase Mode)
Page 383 2.50 A 0.20 A 0.50 A 2.50 A 0.20 A 0.50 A 2.50 A Pickup Verification (3I0 Mode) Step 1: Use BESTCOMSPlus to send the operational settings in Table 65-5 to the BE1-11m. Reset all targets. BE1-11m Inverse Overcurrent (51) Test...
Page 384 Step 3: Use BESTCOMSPlus to open the Protection, Current, Inverse Overcurrent (51-1) screen and send the low range test settings (minimum pickup setting) to the BE1-11m for your sensing input type in Table 65-6. Table 65-6. Pickup Test Settings (3I0 Mode)
Page 385 Timing Verification (3I0 Mode) Step 1: Use BESTCOMSPlus to open the Protection, Current, Inverse Overcurrent (51-1) screen and send the test settings in Table 65-7 to the BE1-11m for settings group 0. Table 65-7. Timing Test Settings (3I0 Mode) Pickup Setting Time Curve 0.5 A (5 A sensing), 0.1 A (1 A sensing)
Page 386 Connect a current source to terminals D1 and D2 (A-phase). For a single-phase input test, I2 = Ia / 3. Therefore, the BE1-11m should pick up at a value of three times the setting value when Inverse Overcurrent (51) Test...
Page 387 65-7 applying only a single-phase input. For example, to determine the pickup current value required for a 1 A BE1-11m with a pickup setting of 0.1, it would require 0.1 times 3 or 0.3 amperes of input current. Step 6: Slowly increase the A-phase current until OUT2 closes and record the pickup.
Page 388 Figure 65-4. BESTlogicPlus Settings (IG Mode) Step 3: Use BESTCOMSPlus to open the Protection, Current, Inverse Overcurrent (51-1) screen and send the low range test settings (minimum pickup setting) to the BE1-11m for your sensing input type in Table 65-14. Step 4: Prepare to monitor the 51-1 function operation.
Page 389 Prepare to monitor the 51-1 timings. Timing accuracy is verified by measuring the elapsed time between a sensing current change and OUT1 closing. Step 3: Connect a current source to BE1-11m terminals D7 and D8 (IG). Step 4: Using the values listed in Table 65-16, apply the appropriate current values, and measure the time between the application of current and the closure of OUT1.
Page 390 Pickup Setting Range = 0.5 to 16 A for 5A sensing 0.1 to 3.2 A for 1A sensing Pickup Accuracy = ±2% or ±50 mA, whichever is greater for 5A sensing ±2% or ±10 mA, whichever is greater for 1A sensing Inverse Overcurrent (51) Test BE1-11m...
Page 391 Pickup Setting Range = 0.5 to 16 A for 5A sensing 0.1 to 3.2 A for 1A sensing Pickup Accuracy = ±3% or ±75 mA, whichever is greater for 5A sensing ±3% or ±15 mA, whichever is greater for 1A sensing BE1-11m Inverse Overcurrent (51) Test...
Page 392 Pickup Setting Range = 0.5 to 16 A for 5A sensing 0.1 to 3.2 A for 1A sensing Pickup Accuracy = ±3% or ±75 mA, whichever is greater for 5A sensing ±3% or ±15 mA, whichever is greater for 1A sensing Inverse Overcurrent (51) Test BE1-11m...
Page 393 7.50 A 0.944 sec 1.044 sec P / F 0.60 A 8.300 sec 9.173 sec P / F 1.50 A 3.535 sec 3.907 sec P / F 7.50 A 1.844 sec 2.038 sec P / F BE1-11m Inverse Overcurrent (51) Test...
Page 394 0.20 A 0.444 sec 0.491 sec P / F 0.50 A 0.190 sec 0.240 sec P / F 2.50 A 0.100 sec 0.150 sec P / F 0.20 A 4.204 sec 4.647 sec P / F Inverse Overcurrent (51) Test BE1-11m...
Page 395 0.80 A 1.401 sec 1.548 sec P / F 0.20 A 8.300 sec 9.173 sec P / F 0.50 A 3.535 sec 3.907 sec P / F 0.80 A 2.674 sec 3.111 sec P / F BE1-11m Inverse Overcurrent (51) Test...
Page 396 65-16 9424200996 Inverse Overcurrent (51) Test BE1-11m...
Page 397: Phase Current Differential (87) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 398 To test the Minimum Restrained Pickup setting, connect two balanced three-phase current sources to the BE1-11m in ABC rotation: 0.5∠0°, 0.5∠–120°, 0.5∠120° amps to terminals D1 through D6 and 0.5∠180°, 0.5∠60°, 0.5∠–60° amps to terminals F1 through F6 (0.25x tap).
Page 399 Step 10: To test the Restraint Slope 1 setting, connect two balanced three-phase current sources to the BE1-11m in ABC rotation: 3.0∠0°, 3.0∠–120°, 3.0∠120° amps to terminals D1 through D6 and 3.0∠180°, 3.0∠60°, 3.0∠–60° amps to terminals F1 through F6 (1.5x tap).
Page 400 To test the Minimum Restrained Pickup setting, connect two balanced three-phase current sources to the BE1-11m in ABC rotation: 0.5∠0°, 0.5∠–120°, 0.5∠120° amps to terminals D1 through D6 and 0.5∠180°, 0.5∠60°, 0.5∠–60° amps to terminals F1 through F6 (0.25x tap).
Page 401 Step 10: To test the Restraint Slope 1 setting, connect two balanced three-phase current sources to the BE1-11m in ABC rotation: 3.0∠0°, 3.0∠–120°, 3.0∠120° amps to terminals D1 through D6 and 3.0∠180°, 3.0∠60°, 3.0∠–60° amps to terminals F1 through F6 (1.5x tap).
Page 402 1¾ cycles maximum for a current of 2 times pickup. Two cycles maximum for a current of 1.05 times the pickup setting. Step Time Delay Setting Actual Timing High Pass/Fail 100 ms 62.5 ms 163 ms P / F Phase Current Differential (87) Test BE1-11m...
Page 403: Power (32) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 404 Figure 67-1. BESTlogicPlus Settings Forward Tripping Direction (Overpower) Step 1: Using Table 67-2 as a guide, send the 32-1 settings to the BE1-11m. Prior to each directional test, reset the BE1-11m targets from the previous test. Table 67-2. Forward-Overpower Test Settings...
Page 405 CTs. In step 2, replace D1 with F1, D2 with F2, etc. Reverse Tripping Direction (Overpower) Step 1: Using Table 67-3 as a guide, send the 32-1 settings to the BE1-11m. Prior to each test, reset the BE1-11m targets from the previous test. Table 67-3. Reverse-Overpower Test Settings...
Page 406 CTs. In step 2, replace D1 with F1, D2 with F2, etc. Reverse Tripping Direction (Underpower) Step 1: Using Table 67-5 as a guide, send the 32-1 settings to the BE1-11m. Prior to each test, reset the BE1-11m targets from the previous test. Table 67-5. Reverse-Underpower Test Settings...
Page 407 Actual Pickup High Low* Actual Dropout High* 500 W 485 W 515 W 475 W 495 W P / F * Reset range is calculated from the pickup setting and may need adjusted based on actual pickup. BE1-11m Power (32) Test...
Page 408 67-6 9424200996 Power (32) Test BE1-11m...
Page 409: Loss Of Excitation - Reverse Var Based (40Q) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 410 Step 1: Use BESTCOMSPlus to open the Protection, Power, Loss of Excitation - Reverse Var Based (40Q) screen and send the first row of test settings in Table 68-3 to the BE1-11m for settings group 0. Table 68-3. Timing Test Settings...
Page 411 Actual Timing High Pass/Fail 2,000 ms 1,968 ms 2,032 ms P / F 5,000 ms 4,968 ms 5,032 ms P / F 10,000 ms 9,950 ms 10,050 ms P / F BE1-11m Loss of Excitation - Reverse Var Based (40Q) Test...
Page 412 68-4 9424200996 Loss of Excitation - Reverse Var Based (40Q) Test BE1-11m...
Page 413: Power Factor (55) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 414 Figure 69-1. BESTlogicPlus Settings Step 3: Use BESTCOMSPlus to open the Protection, Power, Power Factor (55) screen and verify the first row of test settings in Table 69-2 to the BE1-11m. Table 69-2. Pickup Test Settings Lagging Pickup Leading Pickup...
Page 415 +248.1° (0.99 leading) 240° 251.48° P / F 7-IB +152.9° (0.05 lagging) 152.29° 153.44° P / F 6-IC P / F +128.1° (0.99 leading) 120° 131.48° 7-IC +32.9° (0.05 lagging) 32.29° 33.44° P / F BE1-11m Power Factor (55) Test...
Page 416 Step Time Delay Setting Actual Timing High Pass/Fail 60,000 ms 59,700 ms 60,300 ms P / F 0 ms 0 ms 34 ms P / F 50 ms 17 ms 84 ms P / F Power Factor (55) Test BE1-11m...
Page 417: Thermal Curve (49Tc) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 418 Sets Cold Safe Stall Time to Curve (49TC) 1 second 49TC Enabled Target Configuration, Targets Enables 49TC target Step 2: Use BESTCOMSPlus to configure the BESTlogicPlus Programmable Logic shown in Figure 70-1. Figure 70-1. BESTlogicPlus Settings, Standard Curve Thermal Curve (49TC) Test BE1-11m...
Page 419 Verify that OUT4 (Starting) closes. Measure and record the time from when current is applied until OUT1 (Tripped) closes and the thermal capacity reaches 100%. The expected timing is 36.22 seconds per Equation 70-3. The thermal BE1-11m Thermal Curve (49TC) Test...
Page 420 RTD Biasing (Optional) If the RTD Biasing test will not be performed, skip to User Curve (Step 25). Step 16: Use BESTCOMSPlus to send the operational settings in Table 70-2 to the BE1-11m. Reset all targets. Thermal Curve (49TC) Test...
Page 421 Protection, Thermal, Thermal Sets K to 0 Curve (49TC) Overload Protection, Thermal, Thermal Sets Overload pickup to Curve (49TC) Max Emergency Protection, Thermal, Thermal Sets Max Emergency Thermal Capacity Curve (49TC) Thermal Capacity to 0% BE1-11m Thermal Curve (49TC) Test...
Page 422 Step 22: Remove three-phase current and wait until thermal capacity falls to 0% before proceeding. Verify that OUT5 (Stopped) closes. Reset all targets. User Curve Step 23: Use BESTCOMSPlus to send the operational settings in Table 70-3 to the BE1-11m. Reset all targets. Thermal Curve (49TC) Test...
Page 423 Protection, Thermal, 49TC User Sets Curve 1, Point 1 xPU Table Curve, Overload Curve to 10 Curve 1 Point 2 Time Protection, Thermal, 49TC User Sets Curve 1, Point 1 Table Curve, Voltage Configuration Time to 100 milliseconds BE1-11m Thermal Curve (49TC) Test...
Page 424 Timing Accuracy = ±5% or ±2½ cycles, whichever is greater Step Time Dial Applied Current Actual Timing High Pass/Fail 10 A 34.409 sec 38.031 sec P / F 10 A 30.276 sec 33.463 sec P / F Thermal Curve (49TC) Test BE1-11m...
Page 425 Time Dial Range = 1 to 20 Timing Accuracy = ±5% or ±2½ cycles, whichever is greater Step Time Dial Applied Current Actual Timing High Pass/Fail 10 A 29.934 sec 33.085 sec P / F BE1-11m Thermal Curve (49TC) Test...
Page 426 70-10 9424200996 Thermal Curve (49TC) Test BE1-11m...
Page 427: Incomplete Sequence (48) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 428 Timing Verification Time Interval Range = 0 to 600 s Timing Accuracy = ±0.5% or ±2 cycles, whichever is greater Step Time Interval Actual Timing High Pass/Fail 60 s 59.7 s 60.3 s P / F Incomplete Sequence (48) Test BE1-11m...
Page 429: Starts Per Time Interval (66) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 430 OUT1 (Starting) closes. The timer will be stopped when OUT4 (Start Blocked Removed) closes in step 9. The expected timing is 360 seconds. Step 6: Remove three-phase current for approximately one minute. Verify that OUT1 (Starting) opens and OUT2 (Stopped) closes. Starts per Time Interval (66) Test BE1-11m...
Page 431 Functional Test Report Timing Verification Time Interval Range = 1 to 1,440 min Timing Accuracy = ±0.5% Step Time Interval Actual Timing High Pass/Fail 360 s (6 min) 358.2 s 361.8 s P / F BE1-11m Starts per Time Interval (66) Test...
Page 432 72-4 9424200996 Starts per Time Interval (66) Test BE1-11m...
Page 433: Restart Inhibit Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 434 Apply 10 Aac three-phase current (simulate motor starting) and verify that a start is possible. Remove three-phase current. Allow restart delay timer to expire before proceeding. Time Between Starts Step 10: Use BESTCOMSPlus to send the operational settings in Table 73-2 to the BE1-11m. Reset the targets. Table 73-2. Operational Settings (Time Between Starts)
Page 435 Time Between Starts Range = 0 to 7,200 min Timing Accuracy = ±0.5% or ±3 cycles, whichever is greater Step Time Interval Actual Timing High Pass/Fail 60 s (1 min) 59.7 s 60.3 s P / F BE1-11m Restart Inhibit Test...
Page 436 73-4 9424200996 Restart Inhibit Test BE1-11m...
Page 437: Virtual Control Switches (43) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 438 (Optional.) Repeat steps 1 through 8 for 43-2, 43-3, 43-4, and 43-5. Step 10: (Optional.) Repeat steps 1 through 9 for settings group 1, 2, and 3. Switch Mode Step 1: Change the 43-1 element mode to Switch. Virtual Control Switches (43) Test BE1-11m...
Page 439 Step 5: (Optional.) Repeat steps 1 through 4 for settings group 1, 2, and 3. Functional Test Report Function Pass/Fail Switch/Pulse Mode P / F Switch Mode P / F Pulse Mode P / F BE1-11m Virtual Control Switches (43) Test...
Page 440 74-4 9424200996 Virtual Control Switches (43) Test BE1-11m...
Page 441: Logic Timers (62) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 442 Verify that the 43-1 switch change to an ON state was logged and approximately 400 ms later, the 62-1 timer picked up. Then, sometime later, the 43-1 switch change to an OFF state was logged and the 62-1 timer dropped out approximately 2,000 ms later. The state of the 43-1 Logic Timers (62) Test BE1-11m...
Page 443 Step 11: (Optional.) Repeat steps 1 through 10 for settings group 1, 2, and 3. One-Shot/Non-Retriggerable Mode Step 1: Use BESTCOMSPlus to send the operational settings in Table 75-2 to the BE1-11m. Retain the logic settings from Figure 75-1. Table 75-2. Operational Settings (One-Shot/Non-Retriggerable Mode)
Page 444 (Optional.) Repeat steps 1 through 6 for settings group 1, 2, and 3. One-Shot/Retriggerable Mode Step 1: Use BESTCOMSPlus to send the operational settings in Table 75-3 to the BE1-11m. Retain the logic settings from Figure 75-1. Table 75-3. Operational Settings (One-Shot/Retriggerable Mode)
Page 445 Information about Oscillator mode is available in the Logic Timers (62) chapter. Integrating Timer Mode Step 1: Use BESTCOMSPlus to send the operational settings in Table 75-4 to the BE1-11m. Retain the logic settings from Figure 75-1. Table 75-4. Operational Settings (Integrating Timer Mode)
Page 446 Figure 75-6 illustrates the timing relationship of the 43-1 switch and 62-1 timer. Step 11: (Optional.) Repeat steps 1 through 10 for 62-1, 62-2, 62-3, 62-4, 62-5, 62-6, 62-7, and 62-8. Step 12: (Optional.) Repeat steps 1 through 11 for settings group 1, 2, and 3. Logic Timers (62) Test BE1-11m...
Page 447 Timer 62-x Figure 75-6. Integrating Timer Mode Latched Mode Step 1: Use BESTCOMSPlus to send the operational settings in Table 75-5 to the BE1-11m. Retain the logic settings from Figure 75-1. Table 75-5. Operational Settings (Latched Mode) Setting Value BESTCOMSPlus Screen...
Page 448 43-1/43-2 switches and 62-1 timer. Step 10: (Optional.) Repeat steps 1 through 9 for 62-1, 62-2, 62-3, 62-4, 62-5, 62-6, 62-7, and 62-8. Step 11: (Optional.) Repeat steps 1 through 10 for Settings Group 1, 2, and 3. Logic Timers (62) Test BE1-11m...
Page 449 Functional Test Report Function Pass/Fail Pickup/Dropout Mode P / F One-Shot Non-Retriggerable Mode P / F One-Shot/Retriggerable Mode P / F Oscillator Mode P / F Integrating Timer Mode P / F Latched Mode P / F BE1-11m Logic Timers (62) Test...
Page 450 75-10 9424200996 Logic Timers (62) Test BE1-11m...
Page 451: Lockout Functions (86) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 452 Apply voltage to IN1. Verify that OUT1 closes and remains closed. Step 6: Power down the BE1-11m and verify that OUT1 opens. Wait 10 seconds and power up the BE1-11m. Verify that OUT1 closes. This verifies that the 86-1 position is stored in non-volatile memory.
Page 453: Breaker Control Switch (101) Test
Test each of the following functions to verify that this BE1-11m measures accurately, is within specified tolerances, and operates correctly. These tests are also suitable for assisting in systematic troubleshooting in the event that an operation is questioned.
Page 454 Result: OUT3 closes for 200 ms and returns to the open state. OUT4 closes (CLOSE state) and remains closed. Figure 77-2 illustrates the breaker control switch state diagram. Trip Close Figure 77-2. Breaker Control Switch State Diagram Functional Test Report Pass/Fail P / F Breaker Control Switch (101) Test BE1-11m...
Page 455: Frequently Asked Questions (Faq)
The answer to the question is yes and no. In general, once the fault goes away the output contacts open. The BE1-11m does offer an option to ensure that the contact will stay closed for at least 200 milliseconds. See the Contact Inputs and Outputs chapter for additional information on that function. Also, a Set Priority Latch in BESTlogic™Plus can keep the relay outputs closed as long as power is applied.
Page 456 Communications Is the IRIG signal modulated or demodulated? The BE1-11m accepts an IRIG-B signal that is demodulated (dc level-shifted digital signal). See the Specifications chapter for additional information. Frequently Asked Questions (FAQ)
Page 457: Troubleshooting
Proper alarming (to SCADA) and/or targeting • If you do not get the results that you expect from the BE1-11m, first check the programmable settings for the appropriate function. Use the following troubleshooting procedures when difficulties are encountered in the operation of your BE1-11m.
Page 458 Device Manger as shown in Figure 79-2. Right-click on BE1-11 (or ® Unknown Device) under Other Devices and select Properties. Figure 79-2. Device Manager Step 3. In the Properties windows, select the Driver tab and click Update Driver. See Figure 79-3. Troubleshooting BE1-11m...
Page 459 Step 4. Select Browse My Computer for Driver Software as shown in Figure 79-4. Figure 79-4. Update Driver Software - BE1-11 Step 5. Click Browse and navigate to C:\Program Files\Basler Electric\USB Device Drivers\USBIO. Click Next. See Figure 79-5. BE1-11m Troubleshooting...
Page 460 79-4 9424200996 Figure 79-5. Update Driver Software - BE1-11 Step 6. If a Windows Security window (Figure 79-6) appears, click Install. Figure 79-6. Windows Security Step 7. The window in Figure 79-7 appears if driver installation was successful. Troubleshooting BE1-11m...
Page 461 Why do I keep getting access conflict errors when I attempt communication with the BE1-11m? If you try to gain access to more than one port at a time, an access conflict results. The BE1-11m has three communication ports: front-panel USB, rear panel optional Ethernet, and rear panel RS-485. Each communication method has its own access.
Page 462 Verify that all wiring is properly connected. Refer to the Typical Connections chapter. Step 2. Verify that the proper current is present at BE1-11m current sensing inputs IA1 (D1/D2), IB1 (D3/D4), IC1 (D5/D6), and IG1 (D7/D8). If two sets of CTs are present, also verify proper current at IA2 (F1/F2), IB2 (F3/F4), IC2 (F5/F6), and IG2 (F7/F8).
Page 463 The BE1-11m has the ability to distinguish a loss of fuse from a loss of voltage. Check the sequence of events for a Fuse Loss alarm. If a Fuse Loss alarm is active, voltage dependent elements will not operate.
Page 464 79-8 9424200996 Troubleshooting BE1-11m...
Page 465: Specifications
9424200996 80-1 80 • Specifications BE1-11m protection systems used in 50 and 60 Hz systems have the following features and capabilities. For 25 Hz operational specifications, refer to the Specifications - 25 Hz Operation chapter. Operational Specifications Metered Current Values and Accuracy 5 Aac Nominal Range ..........
Page 466 1.0 are affected accordingly.) Dropout ..............95 to 99% of the actual pickup value Time Delay Setting Range ............50 to 600,000 ms Accuracy..............±0.5% or ±2 cycles, whichever is greater Specifications BE1-11m...
Page 467 49RTD - Resistance Temperature Device Protection (Optional) Pickup Setting Range ............32 to 482°F (0 to 250°C) Accuracy..............±2% or ±3.6°F (±2°C), whichever is greater Reset/Pickup Ratio ............ 105% / 95% ±1% (over / under) or 41°F (5°C) minimum BE1-11m Specifications...
Page 468 Two cycles maximum for a current of 1.05 times the pickup setting. † Peak Detect Time for 0.0 Delay Setting ....1 cycle maximum for current ≥ 2 times the pickup setting when using high-speed outputs. Specifications BE1-11m...
Page 469 Accuracy..............±2% or ±1 V, whichever is greater 55 - Power Factor Protection Lagging/Leading Pickup Setting Range ............0.05 to 0.99 Accuracy..............±0.01 Time Delay Setting Range ............50 to 60,000 ms Accuracy..............±0.5% or ±2 cycles, whichever is greater BE1-11m Specifications...
Page 470 Setting Range ............0 to 9,999,000 ms Accuracy..............±0.5% or ±12 ms, whichever is greater 66 - Starts per Time Interval Protection Time Interval Setting Range ............1 to 1,440 min Accuracy..............±0.5% Number of Starts Setting Range ............1 to 100 Specifications BE1-11m...
Page 471 5 Ampere CT Setting Range ........2.00 to 20.0 A 1 Ampere CT Setting Range ........0.40 to 4.00 A Minimum Restraint Pickup (I Setting Range ............0.1 to 1.00 per unit Slope Pickup (I Setting Range ............0.1 to 20.0 per unit BE1-11m Specifications...
Page 472: Ampere Ct Continuous Rating
Continuous Rating ............. 20 A One Second Rating ........... 400 A ½ For other current levels, use the formula: I= (K/t) where t = time in seconds, K = 160,000. Begins to Clip (Saturate) ........... 150 A Burden ............... <10 mΩ Specifications BE1-11m...
Page 473 Sampling Rate ............32 samples per cycle, adjusted to input frequency (10 to 125 Hz) Power Supply Terminals..............A6, A7 Option 1 (48/125 Vac/dc) DC Operating Range ..........35 to 150 Vdc AC Operating Range ..........55 to 135 Vac BE1-11m Specifications...
Page 474: Burden
Approx. 5 Vdc * AC voltage ranges are calculated using the default recognition time (4 ms) and debounce time (4 ms). † Voltage ranges depend on jumper configurations. See the Contact Inputs and Outputs chapter for more information. Specifications BE1-11m...
Page 475: In1
Terminals.......... A1, A2 Real-Time Clock Clock has leap year and selectable daylight saving time correction. Backup capacitor and standard backup battery sustain timekeeping during losses of BE1-11m operating power. Resolution ..............1 s Accuracy..............±1.73 s/d at 77°F (25°C) BE1-11m...
Page 476: Terminals Va
The battery polarity must be correct in order to provide backup for the real-time clock. Note Failure to replace the battery with Basler Electric P/N 38526 may void the warranty. Communication Ports Communication ports consist of USB, serial, and Ethernet connections.
Page 477 IEEE Std C37.90.3-2001 – IEEE Standard Electrostatic Discharge Test for Protective Relays • CE Compliance This product has been evaluated and complies with the relevant essential requirements set forth by the EU legislation. EC Directives: LVD 2014/35/EU • EMC 2014/30/EU • RoHS 2 2011/65/EU • BE1-11m Specifications...
Page 478 As an example of some of the extreme testing conditions, the BE1-11m was subjected to temperature extremes of –80°C to +130°C, vibration extremes of 5 to 45 G at +20°C, and temperature/vibration extremes of 45 G over a temperature range of –60°C to +110°C.
Page 479 9424200996 80-15 IEC 61850 Certification KEMA certified per IEC 61850 Certificate Level A. Physical Weight ............... 5.1 lb (2.3 kg) IP Class ..............IP50 Case Size ..............Refer to the Mounting chapter. BE1-11m Specifications...
Page 480 80-16 9424200996 Specifications BE1-11m...
Page 481: Specifications - 25 Hz Operation
9424200996 81-1 81 • Specifications - 25 Hz Operation BE1-11m protection systems used in 25 Hz systems have the following features and capabilities. Operational Specifications Metered Current Values and Accuracy 5 Aac Nominal Range ..........0.5 to 15 Aac 1 Aac Nominal Range ..........0.1 to 3.0 Aac SEF Range ..............
Page 482 1.0 are affected accordingly.) Dropout ..............95 to 99% of the actual pickup value Time Delay Setting Range ............50 to 600,000 ms Accuracy..............±1.5% or ±4 cycles, whichever is greater Specifications - 25 Hz Operation BE1-11m...
Page 483 49RTD - Resistance Temperature Device Protection (Optional) Pickup Setting Range ............32 to 482°F (0 to 250°C) Accuracy..............±2% or ±3.6°F (±2°C), whichever is greater Reset/Pickup Ratio ............ 105% / 95% ±1% (over / under) or 41°F (5°C) minimum BE1-11m Specifications - 25 Hz Operation...
Page 484 * Trip Time for 0.0 Delay Setting ......1¼ cycles maximum for currents ≥ 5 times the pickup setting. 1¾ cycles maximum for a current of 2 times pickup. Two cycles maximum for a current of 1.05 times the pickup setting. Specifications - 25 Hz Operation BE1-11m...
Page 485 Accuracy..............±2% or ±1 V, whichever is greater 55 - Power Factor Protection Lagging/Leading Pickup Setting Range ............0.05 to 0.99 Accuracy..............±0.02 Time Delay Setting Range ............50 to 60,000 ms Accuracy..............±1.5% or ±4 cycles, whichever is greater BE1-11m Specifications - 25 Hz Operation...
Page 486 Accuracy..............±0.5% or ±12 ms, whichever is greater 66 - Starts per Time Interval Protection Time Interval Setting Range ............1 to 1,440 min Accuracy..............±0.5% Number of Starts Setting Range ............1 to 100 Specifications - 25 Hz Operation BE1-11m...
Page 487 5 Ampere CT Setting Range ........2.00 to 20.0 A 1 Ampere CT Setting Range ........0.40 to 4.00 A Minimum Restraint Pickup (I Setting Range ............0.1 to 1.00 per unit Slope Pickup (I Setting Range ............0.1 to 20.0 per unit BE1-11m Specifications - 25 Hz Operation...
Page 488 Accuracy..............±2% or ±0.05 A (5 A), ±2% or ±0.01 A (1 A) Switch Time Range ................ 0 to 60 min with 1 min increments where 0 = disabled Accuracy..............±0.5% or ±2 s, whichever is greater BESTlogic™Plus Update Rate .............. ¼ cycle Specifications - 25 Hz Operation BE1-11m...
Page 489: Time Curve Characteristics
Equation 82-2 = Time to trip when M ≥ 1 = Time to reset if BE1-11m is set for integrating reset when M < 1. Otherwise, reset is 50 milliseconds or less D = Time Dial setting (0.0 to 9.9)*...
Page 490 T curves, refer to the Inverse Overcurrent (51) Protection chapter. Time Overcurrent Characteristic Curve Graphs The figures after the tables illustrate the characteristic curves of the BE1-11m. Table 82-2 cross- references each curve to existing electromechanical relay characteristics. Equivalent time dial settings were calculated at a value of five times pickup.
Page 491 User Tables Time Dial Setting Cross-Reference Although the time characteristic curve shapes have been optimized for each BE1-11m, time dial settings of Basler Electric protection systems are not identical to the settings of electromechanical induction disk overcurrent relays. Table 82-3 helps you convert the time dial settings of induction disk relays to the equivalent setting for Basler Electric protection systems.
Page 492 When using the 46 curve, the user should convert the continuous I rating data to actual secondary current at the BE1-11m. This value (plus some margin, if appropriate) should be entered as the pickup setting. For example, if a generator’s rated full-load current is 5 amperes, a pu setting of 0.5 A would allow 10% continuous I...
Page 493 When curve 46 is selected, the BE1-11m changes the range of the allowed time dial to 1 to 99 (instead of the time dial range of 0.1 to 9.9 for all the other curves). The user should enter the “K” factor of the generator into the time dial field.
Page 494 82-6 9424200996 Figure 82-1. Time Characteristic Curve S1, Short Inverse (Similar to ABB CO-2) Time Curve Characteristics BE1-11m...
Page 495 9424200996 82-7 Figure 82-2. Time Characteristic Curve S2, Short Inverse (Similar To GE IAC-55) BE1-11m Time Curve Characteristics...
Page 496 82-8 9424200996 Figure 82-3. Time Characteristic Curve A, Standard Inverse (BS 142) Time Curve Characteristics BE1-11m...
Page 497 9424200996 82-9 Figure 82-4. Time Characteristic Curve A1, Inverse (IEC 60255-151 Ed. 1) BE1-11m Time Curve Characteristics...
Page 498 82-10 9424200996 Figure 82-5. Time Characteristic Curve I1, Inverse Time (Similar to ABB CO-8) Time Curve Characteristics BE1-11m...
Page 499 9424200996 82-11 Figure 82-6. Time Characteristic Curve I2, Inverse Time (Similar to GE IAC-51) BE1-11m Time Curve Characteristics...
Page 500 82-12 9424200996 Figure 82-7. Time Characteristic Curve M, Moderately Inverse (Similar to ABB CO-7) Time Curve Characteristics BE1-11m...
Page 501 9424200996 82-13 1000.00 100.00 10.00 1.00 0.10 0.01 MULTIPLES OF PICKUP P0057-45 Figure 82-8. Time Characteristic Curve D1, Moderately Inverse (IEC 60255-151 Ed. 1) BE1-11m Time Curve Characteristics...
Page 502 82-14 9424200996 Figure 82-9. Time Characteristic Curve L1, Long Inverse (Similar to ABB CO-5) Time Curve Characteristics BE1-11m...
Page 503 9424200996 82-15 Figure 82-10. Time Characteristic Curve L2, Long Inverse (Similar To GE IAC-66) BE1-11m Time Curve Characteristics...
Page 504 82-16 9424200996 Figure 82-11. Time Characteristic Curve G, Long Time Inverse (BS 142) Time Curve Characteristics BE1-11m...
Page 505 9424200996 82-17 Figure 82-12. Time Characteristic Curve V1, Very Inverse (Similar to ABB CO-9) BE1-11m Time Curve Characteristics...
Page 506 82-18 9424200996 Figure 82-13. Time Characteristic Curve V2, Very Inverse (Similar to GE IAC-53) Time Curve Characteristics BE1-11m...
Page 507 9424200996 82-19 Figure 82-14. Time Characteristic Curve B, Very Inverse (BS 142) BE1-11m Time Curve Characteristics...
Page 508 82-20 9424200996 Figure 82-15. Time Characteristic Curve B1, Very Inverse (IEC 60255-151 Ed. 1) Time Curve Characteristics BE1-11m...
Page 509 9424200996 82-21 1000.00 100.00 10.00 1.00 0.10 0.01 MULTIPLES OF PICKUP P0057-46 Figure 82-16. Time Characteristic Curve E3, Very Inverse (IEC 60255-151 Ed. 1) BE1-11m Time Curve Characteristics...
Page 510 82-22 9424200996 Figure 82-17. Time Characteristic Curve E1, Extremely Inverse (Similar to ABB CO-11) Time Curve Characteristics BE1-11m...
Page 511 9424200996 82-23 Figure 82-18. Time Characteristic Curve E2, Extremely Inverse (Similar to GE IAC-77) BE1-11m Time Curve Characteristics...
Page 512 82-24 9424200996 Figure 82-19. Time Characteristic Curve C, Extremely Inverse (BS 142) Time Curve Characteristics BE1-11m...
Page 513 9424200996 82-25 Figure 82-20. Time Characteristic Curve C1, Extremely Inverse (IEC 60255-151 Ed. 1) BE1-11m Time Curve Characteristics...
Page 514 82-26 9424200996 1000.00 100.00 10.00 1.00 0.10 0.01 MULTIPLES OF PICKUP P0057-47 Figure 82-21. Time Characteristic Curve F1, Extremely Inverse (IEC 60255-151 Ed. 1) Time Curve Characteristics BE1-11m...
Page 515 9424200996 82-27 Figure 82-22. Time Characteristic Curve D, Definite Time (Similar To ABB CO-6) BE1-11m Time Curve Characteristics...
Page 516 NOTE: Curves are shown as extending farther to the left than they will in practice. Curves stop at pickup level. For example, if the user selects 5A FLC and a pickup setting of 0.5A, the per-unit pickup is 0.1A. The BE1-11m will not pick up at less than 0.1 pu I2 for these settings. Time Curve Characteristics...
Page 517 Equation 82-9 = Time to trip when M ≤ 1 = Time to reset if BE1-11m is set for integrating reset when M > 1. Otherwise, reset is 50 milliseconds or less D = Time Dial setting (0.0 to 9.9)
Page 518 82-30 9424200996 100.00 10.00 1.00 0.10 MULTIPLES OF PICKUP Figure 82-24. Undervoltage (27) Inverse Time Curve (Default Constants) Time Curve Characteristics BE1-11m...
Page 519 Equation 82-11 = Time to trip when M ≥ 1 = Time to reset if BE1-11m is set for integrating reset when M < 1. Otherwise, reset is 50 milliseconds or less D = Time Dial setting (0.0 to 9.9)
Page 520 82-32 9424200996 100.00 10.00 1.00 0.10 MULTIPLES OF PICKUP Figure 82-25. Overvoltage (59) Inverse Time Curve (Default Constants) Time Curve Characteristics BE1-11m...
Page 521 With max value of /(S•SF•FLA) of 10. Equation 82-12. Standard Curve Where: = Operating time = Measured equivalent motor current TD = Time Dial FLA = Full Load Amps SF = Service Factor = Overload Scaler = Natural log BE1-11m Time Curve Characteristics...
Page 522 82-34 9424200996 The standard curve is illustrated in Figure 82-26. 10000 1000 Multiple of Overload Pickup Figure 82-26. 49TC Standard Curve Time Curve Characteristics BE1-11m...
Page 523 = Motor running time constant = Specified load current before the overload occurs (IEC Hot Curve Current setting), which is specified in National Standards, declared by the manufacturer, or calculated from manufacturer provided thermal curve. = Natural log BE1-11m Time Curve Characteristics...
Page 524 82-36 9424200996 The IEC Curve is illustrated in Figure 82-27. 100000 10000 1000 5.5k 1.2k Multiple of Overload Pickup Figure 82-27. 49TC IEC Curve Time Curve Characteristics BE1-11m...
Page 525: Rtd Module
The RTD module provides four analog outputs that are user-selectable for 4 to 20 mAdc or 0 to 10 Vdc. A wide selection of parameters including BE1-11m metered voltages and currents, analog inputs, and RTD inputs can be configured as analog outputs. Refer to the Programmable Outputs, Remote Analog Outputs screen in BESTCOMSPlus®...
Page 526 Be sure that the RTD module is hard-wired to earth ground with no smaller than 12 AWG (3.31 mm ) copper wire attached to the chassis ground terminal on the module. Terminations The terminal interface consists of permanently mounted connectors with screw-down compression terminals. RTD Module BE1-11m...
Page 527 These terminals provide form C (SPDT) alarm contacts. Alarm contact terminals are listed in Table 83-2. Table 83-2. Alarm Contact Terminals Terminal Description TB1-4 Normally Open TB1-5 Common TB1-6 Normally Closed RTD Module Inputs and Outputs Input and output terminals are shown in Figure 83-2 and listed in Table 83-3. BE1-11m RTD Module...
Page 528 Analog Inputs 1 - 4 External Analog Input Connections Voltage input connections are shown in Figure 83-3 and current input connections are shown in Figure 83-4. When using the current input, AIN V+ and AIN I+ must be tied together. RTD Module BE1-11m...
Page 529 Figure 83-4. Analog Inputs - Current Input Connections External RTD Input Connections External 2-wire RTD input connections are shown in Figure 83-5. Figure 83-6 shows external 3-wire RTD input connections. RTD Module RTD1+ BLACK RTD1– Jumper RTD1C Figure 83-5. External Two-Wire RTD Input Connections BE1-11m RTD Module...
Page 530 An IP address is assigned to the RTD module in all cases even if the connection between the RTD module and the BE1-11m will be RS-485. Assigning an IP address to the RTD module gives the user the option to save a settings file and to view the serial number and firmware version of the RTD module using BESTCOMSPlus.
Page 531 Perform this step if the RTD Module is connected to the BE1-11m via a direct Ethernet connection. The BE1-11m communicates with the RTD Module only if its Active IP Address is a nonzero value. To confirm/set the IP Address, open the Ethernet screen under Communication, Configure and de-select the Use DHCP box.
Page 532 83-8 9424200996 Use BESTCOMSPlus to send settings to the BE1-11m. Procedure 2 The PC, BE1-11m, and RTD module are connected through a network. See Figure 83-8. Ethernet Ethernet BE1-11m Ethernet RTD Module = Optional Figure 83-8. Procedure 2 Connect to RTD Module Connect an Ethernet cable directly between the PC and RTD module.
Page 533 Installation and operation of BESTCOMSPlus is described in the BESTCOMSPlus Software chapter. Automatic Activation To start BESTCOMSPlus, click the Windows® Start button, point to Programs, Basler Electric, and then click the BESTCOMSPlus icon. During initial startup, the BESTCOMSPlus Select Language screen is displayed (Figure 83-9).
Page 534 RTD Module. See Figure 83-11. The RTD Module plugin is activated automatically after connecting to an RTD module. Figure 83-11. Communication Pull-Down Menu The RTD Module Connection screen shown in Figure 83-12 appears. Under Device Discovery, click the Ethernet button. RTD Module BE1-11m...
Page 535 The RTD Module plugin opens indicating that activation was successful. You can now configure the RTD module settings. Click the Configure button to change RTD module communication settings. Figure 83-14. Device Discovery Screen BE1-11m RTD Module...
Page 536 Basler Electric website. Click either the Website or Email button. Click the Activate button when you are ready to enter the activation key you received from Basler Electric. The Activate Device Plugin pop-up appears. Refer to Figure 83-16.
Page 537 The default setting is 255 (communications disabled). Assign a remote module ID (1 to 254) to the RTD module. The BE1-11m uses this unique ID to communicate with the connected RTD module. To obtain metering values in BESTCOMSPlus or through the BE1-11m front-panel, the same ID must be entered on the Remote Module Communications screen under System Parameters in the Settings Explorer of the BE1-11 plugin.
Page 538 Remote Analog Inputs Configuration The RTD module provides four analog inputs. The BE1-11m supports two RTD modules at once. To make identifying the analog inputs easier, a user-assigned name can be given to each input.
Page 539 83-15 Figure 83-21. Module 1 Input #1 Screen Remote Analog Outputs Configuration The RTD module provides four analog outputs. The BE1-11m supports two RTD modules at once. Configuration Settings BESTCOMSPlus Navigation Path: Settings Explorer, Programmable Outputs, Remote Analog Outputs HMI Navigation Path: Settings Explorer, Analog Outputs Configuration settings are made using the BE1-11 plugin for BESTCOMSPlus.
Page 540 Metering > Analog Metering > Analog Output. Remote RTDs Configuration The RTD module provides 12 RTD inputs. The BE1-11m supports two RTD modules at once. The RTDs are always monitored and their status is displayed on the appropriate metering screens.
Page 541 Resistance Temperature Detector (49RTD) Protection chapter for information on setting 49RTD protection elements. Figure 83-24. RTD Configuration Block Screen Specifications Operating Power Nominal ........125/250 Vac/dc Range ......... 90 to 270 Vac or 90 to 300 Vdc Maximum Consumption ..... 9 W BE1-11m RTD Module...
Page 542 Maximum Length (Half-Duplex) ........ 1,310 ft (399 m) Maximum Length (Full-Duplex) ......... 6,600 ft (2,011 m) Serial RS-485 19,200 baud Temperature Operating Range ......–40°C to 70°C (–40°F to 158°F) Storage Range ......–40°C to 70°C (–40°F to 158°F) RTD Module BE1-11m...
Page 543 EN 61000-4-11: Voltage Dips and Interrupts HALT (Highly Accelerated Life Testing) Basler Electric uses HALT to prove that our products will provide the user with many years of reliable service. HALT subjects the device to extremes in temperature, shock, and vibration to simulate years of operation, but in a much shorter period span.
Page 544 RTD modules are manufactured using state-of-the-art surface-mount technology. As such, Basler Electric recommends that no repair procedures be attempted by anyone other than Basler Electric personnel. Before returning the RTD module for repair, contact the Basler Electric Technical Services Department at 618-654-2341 for a return authorization number.
Page 545: Settings Calculation Examples
9424200996 84-1 84 • Settings Calculation Examples This chapter provides settings calculation examples for setting the BE1-11m for an induction motor and a synchronous motor. Induction Motor Settings Calculation Example This example uses a 2,900 HP, 4-kV motor with six leads (stator neutrals brought out for differential protection) and thermal model protection, as well as RTD (Resistance Temperature Detector) backup.
Page 546 84-2 9424200996 Motor Manufacturer Data Motor manufacturer data should be reviewed before configuring the BE1-11m. Typical motor manufacturer data is listed below. GENERAL ● HP ..............2900 ○ Full-Load Amps (FLA) ........363 ○ Maximum Locked Rotor Current (LRA) ..600% ○...
Page 547 The required motor curves are shown in Figure 84-2. Curve A shows the thermal limits at 100% of the starting voltage. Curve B shows the thermal limits at 85% of the starting voltage. Figure 84-2. Motor Curves BE1-11m Settings Calculation Examples...
Page 548 Figure 84-3. Figure 84-3. General Settings, Display Units Screen Style Number The BE1-11m style number shown in Figure 84-4 is used in this application example. The style number is defined below. Figure 84-4. BE1-11 Style Number M ..Application Option ...... Motor 6 ..
Page 549 Motor Protection). CTs with a ratio of 80 (400:5) are used in this application example. The secondary current measured by the BE1-11m is 4.54 A when the motor is at full load. Use Equation 84-1 to calculate the secondary full load amps. A CT with an accuracy class of C400 provides a satisfactory knee-point voltage for the motor FLA.
Page 550 System Parameters - Motor Configuration Nominal Settings The system nominal quantities are used for BE1-11m functions such as the 60FL (loss of VT failure). Enter all nominal settings in phase-to-neutral quantities on the System Parameters, Motor Configuration screen shown in Figure 84-6.
Page 551 Navigate to Programmable Inputs, Remote RTD, RTD Block Configuration and set RTD Configuration Blocks 1-3 as shown in Figure 84-9. BE1-11m Settings Calculation Examples...
Page 552 Protection - Thermal Thermal Curve (49TC) The 49TC element is the heart of the BE1-11m Motor Protection System. This equivalent current-based element models the thermal capacity in the motor by using negative-sequence current, reduced voltage (when custom curves are used), and RTD biasing (when a remote module is used).
Page 553 Cold Safe Stall Time - This setting defines the time that the motor is allowed to be in a stalled cold condition. Motor damage occurs after this time expires. Set the Cold Safe Stall Time to 10 seconds per the motor manufacturer data. BE1-11m Settings Calculation Examples...
Page 554 Minimum RTD Bias Temperature, Center RTD Bias Temperature, and Maximum RTD Bias Temperature. The BE1-11m can use the standard 3-point biasing, and you can add as many as 40 biasing points for better thermal modeling and protection at high-temperature operation.
Page 555 Voting is set to 2, meaning at least 2 RTDs must be at 155°C or higher to result in a trip. A delay is not required for the reason that temperatures change slowly because of the large motor thermal mass. BE1-11m Settings Calculation Examples...
Page 556 The pickup setting is derived using a dc offset of 1.7, 125 percent of LRA, and a BE1-11m pickup tolerance of 2 percent. Reference the secondary FLA (Equation 84-1) and LRA (Max Locked Rotor Current) of 600% per motor manufacturer ��...
Page 557 For conservative protection, choose 4 • 5%, which is 20 percent imbalance. A 10 second delay is appropriate because the heating is slow (motor mass is large). The pickup setting calculation is shown in Equation 84-8. BE1-11m Settings Calculation Examples...
Page 558 Equation 84-9. 50-4 Pickup A delay is used to prevent the BE1-11m from operating under temporary overloads while the motor is running. Typically, the delay is set short, but can be set longer if the process is significant or if an operator is regulating the load.
Page 559 Figure 84-19. Protection, Current, Instantaneous Overcurrent (50-5) Screen Current Differential (87) BE1-11m Motor Protection Systems with a style number of xxxxxxxxPxxxxx are equipped with differential protection. Differential protection is preferred on all motors, but not all motors are built with access to both ends of the motor windings.
Page 560 Differential protection is selected over other methods because of its sensitivity, speed, and security. The BE1-11m provides two types of differential protection. The first, flux balance, is used for small motors. The second type, percent differential, is used when conductor size prevents the use of flux balance CTs (i.e.
Page 561 84-17 Starting Slope The BE1-11m considers the motor to be starting when current is greater than 2 • FLA in any phase. The starting mode ends when current in all three phases drops below 2 • FLA. Therefore, the 2 Slope Pickup (starting) should be set at the point that restraint current is 2 •...
Page 562 Select three-phase mode, set the pickup setting to 3.405 Secondary A, and set the time delay to 100 ms as shown in Figure 84-23. Figure 84-23. Protection, Current, Instantaneous Undercurrent (37) Screen Protection - Voltage Two undervoltage protection elements are used to monitor undervoltage conditions. Settings Calculation Examples BE1-11m...
Page 563 Equation 84-18. Equation 84-18. 27P-2 Pickup Select Three of Three mode, set the Pickup setting to 84 Secondary V, and set the Time Delay to 0 ms as shown in Figure 84-25. BE1-11m Settings Calculation Examples...
Page 564 100 ms is used to avoid nuisance alarms. The pickup setting is calculated in Equation 84-19. Equation 84-19. 81-1 Pickup Select Under mode, set the Pickup setting to 57 Hz, and set the Time Delay to 100 ms as shown in Figure 84-26. Settings Calculation Examples BE1-11m...
Page 565 + 2 �� = 2 �� + 2 �� = 4 �� interval is calculated in Equation 84-21. �� Equation 84-21. 48 Time Interval Enable the 48 element and set the time interval to 4 seconds as shown in Figure 84-27. BE1-11m Settings Calculation Examples...
Page 566 45 percent. The Thermal Capacity Inhibit is set to 33 percent in this example. See Figure 84-29. Additionally, inhibits for Time Between Starts and Restart Delay can be set. These are left at the default setting of 0 (disabled) in this example. Settings Calculation Examples BE1-11m...
Page 567 The scheme includes thermal model protection (49TC), as well as RTD (Resistance Temperature Detector) backup. The motor is solidly grounded. A single-line drawing is shown in Figure 84-30. Figure 84-30. Single-Line Drawing, Phase Differential Protection (5,000 HP Synchronous Motor Example) BE1-11m Settings Calculation Examples...
Page 568 84-24 9424200996 Motor Manufacturer Data Motor manufacturer data should be reviewed before configuring the BE1-11m. Typical motor manufacturer data is listed below. GENERAL ● HP ..............5000 HP ○ System Frequency ..........60 Hz ○ Motor Rotation ..........1200 RPM ○ Bus Voltage ............12 kV ○...
Page 569 The required motor curves are shown in Figure 84-31. Curve A shows the thermal limits at 100 percent of the starting voltage. Curve B shows the thermal limits at 85 percent of the starting voltage. Figure 84-32 shows the synchronous motor V curves indicating operational parameters of load an power factor. BE1-11m Settings Calculation Examples...
Page 570 84-26 9424200996 Figure 84-31. Time vs. Current and Thermal Limit Curves Settings Calculation Examples BE1-11m...
Page 571 VT setup. Use the Settings Explorer in BESTCOMSPlus to navigate to the General Settings, Display Units screen. Select Metric for System Units and Primary Units for Settings Display Modes, Thresholds. Refer to Figure 84-33. BE1-11m Settings Calculation Examples...
Page 572 Select CTs with a primary rating of 300 A; then the ratio with 5A CTs used in this application example is 60 (300:5). The secondary current measured by the BE1-11m is 3.41 A (205 A ÷ 60) when the motor is at full load.
Page 573 System Parameters - Motor Configuration Nominal Settings The system nominal quantities are used for BE1-11m functions such as the 60FL (loss of VT fuse). Enter all nominal settings in phase-to-neutral quantities and secondary quantities (required by the BE1-11m) on the System Parameters, Motor Configuration screen shown in Figure 84-36. The BE1-11m Nominal Settings must be set for secondary units.
Page 574 In this example, set FLA to 3.41 Secondary A and Service Factor to 1.15. See the manufacturer’s data table at the beginning of this example section. The BE1-11m Nominal Settings must be set for these secondary units even though the rest of the settings are in primary.
Page 575 Navigate to Programmable Inputs, Remote RTD, RTD Block Configuration and set RTD Configuration Blocks 1-3 as shown in Figure 84-39. Figure 84-39. Programmable Inputs, Remote RTD, RTD Block Configuration Screen BE1-11m Settings Calculation Examples...
Page 576 Protection - Thermal Thermal Curve (49TC) The 49TC element is the heart of the BE1-11m Motor Protection System. This equivalent current-based element models the thermal capacity in the motor by using negative-sequence current, reduced voltage (when custom curves are used), and RTD biasing (when a remote module is used).
Page 577 150 percent. The life of the motor shortens as the motor is allowed to exceed 100 percent of thermal capacity. Caution should be used when selecting the Max Emergency Thermal Capacity. BE1-11m Settings Calculation Examples...
Page 578 Minimum RTD Bias Temperature, Center RTD Bias Temperature, and Maximum RTD Bias Temperature. The BE1-11m can use the standard 3-point biasing, and you can add as many as 40 biasing points for better thermal modeling and protection at high-temperature operation.
Page 579 The RTDs can be used as a direct source for protection as well. RTDs serve as backup protection to the 49TC thermal model because of the inherent slow reaction time of these devices. The maximum stator winding insulation temperature is 155°C per the motor manufacturer data. BE1-11m Settings Calculation Examples...
Page 580 The pickup setting is derived using a dc offset of 1.7, 125 percent of LRA, and a BE1-11m pickup tolerance of 2 percent. CTR is the CT ratio.
Page 581 = � ∙ � ∙ = 3.09 �� "�� 0.368 Equation 84-27. 50-2 Pickup Select 3I0 (residual) mode and set the Pickup setting to 3.09 Secondary A as shown in Figure 84-47. BE1-11m Settings Calculation Examples...
Page 582 The unbalanced voltage feed to the motor should not exceed 5 percent. The BE1-11m must monitor and react quickly for a current unbalance condition. Because the BE1-11m uses negative-sequence current in the 49TC thermal model, additional unbalance (and single-phasing) protection can be added using the Average mode.
Page 583 If there is an increasing voltage unbalance in the power system (incorrect phase connections, stator turn- to-turn faults, or motor winding connections corroding or loose, for example), the BE1-11m can alarm so that you can take action before tripping the motor on unbalance current. Use the 50-4 element to alert operations and maintenance personnel to take corrective action.
Page 584 Equation 84-32. 50-5 Pickup A delay prevents the BE1-11m from operating for temporary overloads while the motor is running. Typically, the delay is set short, but can be set longer if the process is significant or if an operator is regulating the load.
Page 585 Differential protection is selected over other methods because of its sensitivity, speed, and security. The BE1-11m provides two types of differential protection. One method, flux balance, is used for small motors. Flux balance requires one ring or doughnut CT per phase of sufficient diameter to accommodate...
Page 586 15. Starting Slope The BE1-11m considers the motor to be starting when current is greater than 2 • FLA in any phase. The starting mode ends when current in all three phases drops below 2 • FLA. Therefore, the 2 Slope Pickup (starting) should be set at the point that restraint current is 2 •...
Page 587 Alarm The BE1-11m provides a Slope % alarm for cases where high loads or through faults cause unbalance in �� % �� = 1.5 ∙ �� 2 % = 1.5 ∙ 32% = 48% the differential.
Page 588 Equation 84-40. 37 Inhibit Level Select three-phase mode, set the Pickup setting to 2.563 Secondary A, the Inhibit Level to 0.683, and set the Time Delay to 100 ms (to override load changes) as shown in Figure 84-57. Settings Calculation Examples BE1-11m...
Page 589 Select Three of Three mode, set the Pickup setting to 108 Secondary V. The delay should be set as short as possible, and longer than the start time of other motors on the bus. Because there are no other motors in this example, set the Time Delay to 100 ms as shown in Figure 84-58. BE1-11m Settings Calculation Examples...
Page 590 Equation 84-43. 27P-2 Inhibit Level Select Three of Three mode, set the Pickup setting to 102 Secondary V, set the Inhibit Level to 24 Secondary V, and set the Time Delay to 0 ms as shown in Figure 84-59. Settings Calculation Examples BE1-11m...
Page 591 Equation 84-44. 59P-1 Pickup Select Three of Three mode, set the Pickup setting to 132 Secondary V, and set the Time Delay to 1000 ms to avoid tripping on spikes in the system. See Figure 84-60. BE1-11m Settings Calculation Examples...
Page 592 Configure the Power Factor (55) element as shown in Figure 84-62. A slight delay allows automatic excitation equipment or a remedial action scheme an opportunity to correct an out-of-range operation condition. Set the Lagging Pickup to 0.90, Leading Pickup to 0.85, and Time Delay to 5 seconds (5000 ms). Settings Calculation Examples BE1-11m...
Page 593 100 ms is used to avoid nuisance alarms. The pickup setting is calculated in Equation 84-45. Equation 84-45. 81-1 Pickup Select Under mode, set the Pickup setting to 57 Hz, and set the Time Delay to 100 ms as shown in Figure 84-63. BE1-11m Settings Calculation Examples...
Page 594 + 2 �� = 2.42 �� + 2 �� = 4.42 �� calculated in Equation 84-47. �� Equation 84-47. 48 Time Interval Enable the 48 element and set the Time Interval to 4.42 seconds as shown in Figure 84-64. Settings Calculation Examples BE1-11m...
Page 595 The Thermal Capacity Inhibit is set to 60 percent in this example. See Figure 84-66. Additionally, inhibits for Time Between Starts and Restart Delay can be set. These are left at the default setting of 0 (disabled) in this example. BE1-11m Settings Calculation Examples...
Page 596 84-52 9424200996 Figure 84-66. Protection, Restart Inhibit Screen Logic Programming BESTlogicPlus programmable logic settings for the Synchronous Motor example are illustrated in the following figures. Settings Calculation Examples BE1-11m...
Page 597 9424200996 84-53 Figure 84-67. Logic Page 1 (Unchanged from Induction Motor Default) BE1-11m Settings Calculation Examples...
Page 598 84-54 9424200996 Figure 84-68. Logic Page 2 (Unbalance Trip and Alarm Added) Settings Calculation Examples BE1-11m...
Page 599 9424200996 84-55 Figure 84-69. Logic Page 3 (Power Factor (55) Added) BE1-11m Settings Calculation Examples...
Page 600 84-56 9424200996 Figure 84-70. Logic Page 4, Part 1 Settings Calculation Examples BE1-11m...
Page 601 9424200996 84-57 Figure 84-71. Logic Page 4, Part 2 Physical outputs remain unchanged. BE1-11m Settings Calculation Examples...
Page 602 84-58 9424200996 Settings Calculation Examples BE1-11m...
Page 603: Bestcomsplus Settings Loader Tool
When BESTCOMSPlus installation is complete, a Basler Electric folder is added to the Windows programs menu. This folder is accessed by clicking the Windows Start button and then accessing the Basler Electric folder in the Programs menu. The Basler Electric folder contains an icon that starts the BESTCOMSPlus Settings Loader Tool.
Page 604 One entry, or row, in the Loader Grid contains all of the necessary data to associate a product settings file with a bar code. New entries can be added. Existing entries can be edited, deleted, and uploaded to a Basler product. Figure 85-1. Loader Grid Scanning Bar Codes Place the cursor in the text field, found at the top of the Loader Grid screen, and scan a bar code.
Page 605 Select an entry and click Upload. A dialog appears which provides connection options for the appropriate type of device. Refer to the Basler product instruction manual for detailed connection information. Once a connection is established, the product settings associated with the entry are uploaded.
Page 606 Figure 85-3. Configuration, Settings Files Tab Connection Options Connection options consist of the three selections described below. Refer to the Basler product instruction manual for detailed connection information. Always Prompt for Connection: When enabled, a dialog appears which provides connection options for the appropriate type of device each time a connection attempt is made.
Page 607 Scan bar code. Settings file is automatically highlighted and isolated in the grid. Click Upload. BESTCOMSPlus Settings Loader Tool automatically connects to device and uploads settings. Device connection is automatic unless “Always prompt for connection” is enabled. BE1-11m BESTCOMSPlus® Settings Loader Tool...
Page 608 85-6 9424200996 BESTCOMSPlus® Settings Loader Tool BE1-11m...
